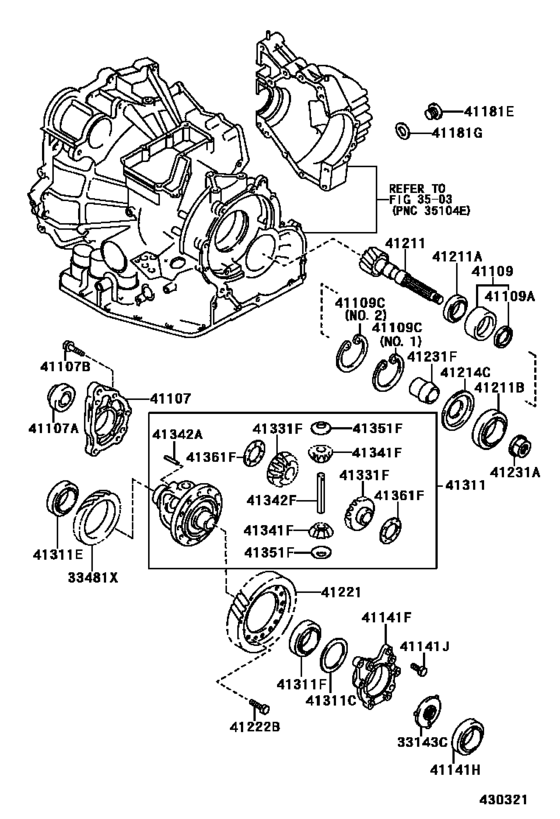

Front Axle Housing & Differential ([06.1998 - ] A541E (9806- )MCV20..ATM) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143C
|
33143C
33143-33010
Baffle, Front Differential Oil
[06.1998 - 07.2001] MCV20..ATM |
33143-33010 |
— | ||
|
33481X
|
33481X
33481-33030 Gear, Speedometer Drive (Atm)[06.1998 - 12.2002] MCV20..ATM |
33481-33030 |
US $39.31 |
||
|
41107
|
41107
41107-33010 Retainer Sub-Assy, Front Differential Oil Seal[06.1998 - 05.1999] MCV20..ATM |
41107-33010 |
US $50.09 |
||
| replacement | |||||
|
41107
|
41107
41107-33030 Retainer Sub-Assy, Front Differential Oil Seal[06.1998 - 05.1999] MCV20..ATM |
41107-33030 |
US $50.09 |
||
|
41107
|
41107
41107-33030 Retainer Sub-Assy, Front Differential Oil Seal[05.1999 - 12.2002] MCV20..ATM |
41107-33030 |
US $50.09 |
||
|
41107A
|
41107A
90311-40010 Seal, Oil (For Front Differential Oil Seal Retainer)[06.1998 - 12.2000] MCV20..ATM |
90311-40010 |
US $5.82 |
||
| replacement | |||||
|
41107A
|
41107A
90311-40028 Oil Seal, Front Drive Shaft, Rh[06.1998 - 12.2000] MCV20..ATM |
90311-40028 |
from US $7.17 |
||
|
41107A
|
41107A
90311-40028 Oil Seal, Front Drive Shaft, Rh[12.2000 - 12.2002] MCV20..ATM |
90311-40028 |
from US $7.17 |
||
|
41107B
|
41107B
90105-08331 Bolt (For Front Differential Oil Seal Retainer)[05.1999 - 12.2002] MCV20..ATM |
90105-08331 |
US $1.75 |
||
|
41109
|
41109
41109-33020 Cage Sub-Assy, Differential Drive Pinion Bearing[06.1998 - 12.2002] MCV20..ATM |
41109-33020 |
from US $41.33 |
||
|
41109A
|
41109A
90310-35007 Seal, Oil (For Differential Drive Pinion Bearing Cage)[06.1998 - 12.2002] MCV20..ATM |
90310-35007 |
US $3.30 |
||
|
41109C
|
41109C
90521-79008 Ring, Hole Snap (For Diff. Drive Pinion Bearing Cage)[06.1998 - 12.2002] MCV20..ATM NO.2 |
90521-79008 |
US $3.20 |
||
|
41109C
|
41109C
90521-83002 Ring, Hole Snap (For Diff. Drive Pinion Bearing Cage)[06.1998 - 12.2002] MCV20..ATM NO.1 |
90521-83002 |
US $4.22 |
||
|
41141F
|
41141F
41101-33050 Retainer, Front Differential Side Bearing[06.1998 - 12.2002] MCV20..ATM |
41101-33050 |
US $311.58 |
||
|
41141H
|
41141H
90311-50011
Seal, Oil(For Differential Side Bearing Retainer)
[06.1998 - 12.2000] MCV20..ATM |
90311-50011 |
— | ||
| replacement | |||||
|
41141H
|
41141H
90311-50029 Oil Seal, Front Drive Shaft, Lh[06.1998 - 12.2000] MCV20..ATM |
90311-50029 |
from US $12.19 |
||
|
41141H
|
41141H
90311-50029 Oil Seal, Front Drive Shaft, Lh[12.2000 - 12.2002] MCV20..ATM |
90311-50029 |
from US $12.19 |
||
|
41141J
|
41141J
90105-08050 Bolt (For Overdrive Case & Transaxle Case Setting)[06.1998 - 12.2002] MCV20..ATM *8-1.25PX28-28 |
90105-08050 |
US $3.58 |
||
|
41141J
|
41141J
90105-08062 Bolt (For Overdrive Case & Transaxle Case Setting)[06.1998 - 12.2002] MCV20..ATM *8-1.25PX29-24 |
90105-08062 |
US $2.34 |
||
|
41141J
|
41141J
90109-08242 Bolt(For Front Differential Side Bearing Retainer)[06.1998 - 12.2002] MCV20..ATM *8-1.25PX36-23 |
90109-08242 |
US $2.18 |
||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[06.1998 - 12.2002] MCV20,SXV20..ATM |
90341-18021 |
from US $2.26 |
||
|
41181G
|
41181G
90430-18008 Gasket[06.1998 - 12.2002] MCV20,SXV20..ATM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1998 - 12.2002] MCV20,SXV20..ATM |
90430-T0021 |
US $0.99 |
||
|
41211
|
41211
41211-33040 Pinion, Differential Drive[06.1998 - 12.2002] MCV20..ATM |
41211-33040 |
US $214.59 |
||
|
41211A
|
41211A
90366-36003
Bearing, Tapered Roller (For Front Drive Pinion Front)
[06.1998 - 12.2002] MCV20..ATM |
90366-36003 |
— | ||
|
41211B
|
41211B
90366-40074 Bearing, Tapered Roller (For Front Drive Pinion Rear)[06.1998 - 12.2002] MCV20..ATM |
90366-40074 |
US $30.43 |
||
|
41214C
|
41214C
41214-33010 Slinger, Front Differential Drive Pinion Oil[06.1998 - 12.2002] MCV20..ATM |
41214-33010 |
from US $7.18 |
||
|
41221
|
41221
41221-33040 Gear, Front Differential Ring[06.1998 - 12.2002] MCV20..ATM |
41221-33040 |
US $311.79 |
||
|
41222B
|
41222B
90105-12154 Bolt (For Rear Differential Ring Gear Set)[06.1998 - 12.2002] MCV20..ATM |
90105-12154 |
US $4.30 |
||
|
41231A
|
41231A
90179-24006 Nut, Drive Pinion Lock[06.1998 - 12.2002] MCV20..ATM |
90179-24006 |
US $2.93 |
||
|
41231F
|
41231F
41231-33010 Spacer, Front Differential Drive Pinion Bearing[06.1998 - 12.2002] MCV20..ATM |
41231-33010 |
US $19.51 |
||
|
41311
|
41311
41301-33020 Case, Front Differential[06.1998 - 12.2002] MCV20..ATM |
41301-33020 |
from US $685.78 |
||
|
41311C
|
41311C
90564-76001 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.00,MARK 0 |
90564-76001 |
US $4.02 |
||
|
41311C
|
41311C
90564-76002 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.05,MARK 1 |
90564-76002 |
US $4.08 |
||
|
41311C
|
41311C
90564-76003 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.10,MARK 2 |
90564-76003 |
US $4.08 |
||
|
41311C
|
41311C
90564-76004 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.15,MARK 3 |
90564-76004 |
US $4.08 |
||
|
41311C
|
41311C
90564-76005 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.20,MARK 4 |
90564-76005 |
US $5.53 |
||
|
41311C
|
41311C
90564-76006 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.25,MARK 5 |
90564-76006 |
US $5.53 |
||
|
41311C
|
41311C
90564-76007 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.30,MARK 6 |
90564-76007 |
US $5.53 |
||
|
41311C
|
41311C
90564-76008 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.35,MARK 7 |
90564-76008 |
US $5.53 |
||
|
41311C
|
41311C
90564-76009 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.40,MARK 8 |
90564-76009 |
US $5.53 |
||
|
41311C
|
41311C
90564-76010 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.45,MARK 9 |
90564-76010 |
US $5.53 |
||
|
41311C
|
41311C
90564-76011 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.50,MARK A |
90564-76011 |
US $5.53 |
||
|
41311C
|
41311C
90564-76012 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.55,MARK B |
90564-76012 |
US $5.53 |
||
|
41311C
|
41311C
90564-76013 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.60,MARK C |
90564-76013 |
US $5.53 |
||
|
41311C
|
41311C
90564-76014 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.65,MARK D |
90564-76014 |
US $5.53 |
||
|
41311C
|
41311C
90564-76015 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.70,MARK E |
90564-76015 |
US $5.53 |
||
|
41311C
|
41311C
90564-76016 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.75,MARK F |
90564-76016 |
US $5.53 |
||
|
41311C
|
41311C
90564-76017 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.80,MARK G |
90564-76017 |
US $5.53 |
||
|
41311C
|
41311C
90564-76018 Shim(For Differential Case)[06.1998 - 07.2002] MCV20 T=2.85,MARK H |
90564-76018 |
US $5.53 |
||
|
41311E
|
41311E
90366-57026 Bearing, Tapered Roller (For Front Differential Case Front)[06.1998 - 12.2002] MCV20..ATM |
90366-57026 |
US $46.59 |
||
|
41311F
|
41311F
90366-50030 Bearing, Tapered Roller (For Front Differential Case Rear)[06.1998 - 12.2002] MCV20..ATM |
90366-50030 |
US $38.88 |
||
|
41331F
|
41331F
41331-33010 Gear, Front Differential Side[06.1998 - 12.2002] MCV20..ATM |
41331-33010 |
US $75.71 |
||
| replacement | |||||
|
41331F
|
41331F
41039-45H00 Gear, Front Differential Side[06.1998 - 12.2002] MCV20..ATM |
41039-45H00 |
from US $214.03 |
||
|
41341F
|
41341F
41341-24010
Pinion, Rear Differential
[06.1998 - 12.2002] MCV20..ATM |
41341-24010 |
— | ||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[06.1998 - 12.2002] MCV20..ATM;ACV20,SXV20 |
90250-06058 |
from US $2.03 |
||
|
41342F
|
41342F
41342-33010 Shaft, Front Differential Pinion, No.1[06.1998 - 12.2002] MCV20..ATM |
41342-33010 |
US $31.16 |
||
|
41351F
|
41351F
41351-33011 Washer, Front Differential Pinion Thrust[06.1998 - 12.2002] MCV20..ATM |
41351-33011 |
US $2.91 |
||
|
41361F
|
41361F
41361-33010 Washer, Front Differential Side Gear Thrust, No.1[06.1998 - 12.2002] MCV20..ATM T=1.625 |
41361-33010 |
from US $4.08 |
||
|
41361F
|
41361F
41362-33080 Washer, Front Differential Side Gear Thrust, No.1[06.1998 - 12.2002] MCV20..ATM T=1.725 |
41362-33080 |
US $4.22 |
||
|
41361F
|
41361F
41363-33010 Washer, Front Differential Side Gear Thrust, No.1[06.1998 - 12.2002] MCV20..ATM T=1.825 |
41363-33010 |
US $4.51 |
||
