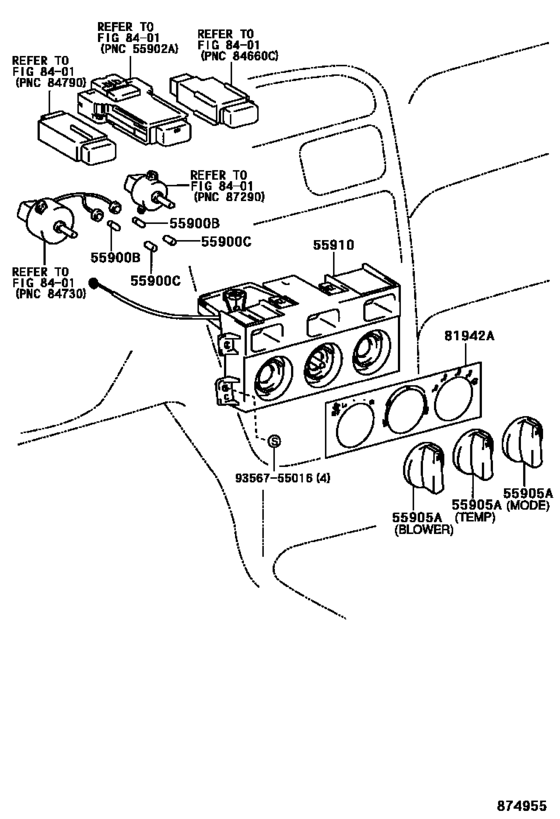

Heating & Air Conditioning - Control & Air Duct ([08.1999 - ] CONTROL,W(MANUAL AIR CONDITIONER) (9908- )) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55900B
|
55900B
90010-03003
Bulb, Air Conditioner Control
[06.1998 - 12.2002] MCV20..ATM 14V 1.4W,W(GREEN CAP),W(AUTOMATIC AIR CONDITIONER),KNOB |
90010-03003 |
— | ||
|
55900B
|
55900B
90010-03004
Bulb, Air Conditioner Control
[06.1998 - 08.1999] MCV20..ATM 9.1V 0.73W,GREEN CAP,W(AUTOMATIC AIR CONDITIONER),LCD |
90010-03004 |
— | ||
|
55900B
|
55900B
90010-03030
Bulb, Air Conditioner Control
[08.1999 - 12.2002] MCV20..ATM W(AUTOMATIC AIR CONDITIONER),LCD |
90010-03030 |
— | ||
|
55900B
|
55900B
90069-98004
Bulb, Air Conditioner Control
[06.1998 - 07.2002] ACV20,MCV20,SXV20 14V 1.4W,W(MANUAL AIR CONDITIONER) |
90069-98004 |
— | ||
| replacements | |||||
|
55900B
|
55900B
90339-04049 Cap, Position Indicator Lamp[06.1998 - 07.2002] ACV20,MCV20,SXV20 14V 1.4W,W(MANUAL AIR CONDITIONER) |
90339-04049 |
from US $1.48 |
||
|
55900B
|
55900B
90981-11014 Bulb, Position Indicator Lamp[06.1998 - 07.2002] ACV20,MCV20,SXV20 14V 1.4W,W(MANUAL AIR CONDITIONER) |
90981-11014 |
from US $2.15 |
||
|
55900C
|
55900C
90069-09006
Cap, Air Conditioner Control Bulb
[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
90069-09006 |
— | ||
|
55905A
|
55905A
55905-06130
Knob, Heater Control
[06.1998 - 07.2002] ACV20,MCV20,SXV20 W(MANUAL AIR CONDITIONER) |
55905-06130 |
— | ||
|
55905A
|
55905A
55905-30270
Knob, Heater Control
[06.1998 - 12.2002] MCV20..ATM W(AUTOMATIC AIR CONDITIONER) |
55905-30270 |
— | ||
|
55910
|
55910
55910-06020
Control Assy, Heater Or Boost Ventilator
[06.1998 - 08.1999] MCV20,SXV20 |
55910-06020 |
— | ||
|
55910
|
55910
55910-06021
Control Assy, Heater Or Boost Ventilator
[08.1999 - 07.2002] ACV20,MCV20,SXV20 |
55910-06021 |
— | ||
|
81942A
|
81942A
81942-06060
Sheet, Heater Control Name, No.1
[06.1998 - 10.1998] MCV20,SXV20 |
81942-06060 |
— | ||
|
81942A
|
81942A
81942-06061
Sheet, Heater Control Name, No.1
[10.1998 - 08.1999] MCV20,SXV20 |
81942-06061 |
— | ||
|
81942A
|
81942A
81942-06062
Sheet, Heater Control Name, No.1
[08.1999 - 07.2002] ACV20,MCV20,SXV20 |
81942-06062 |
— | ||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
