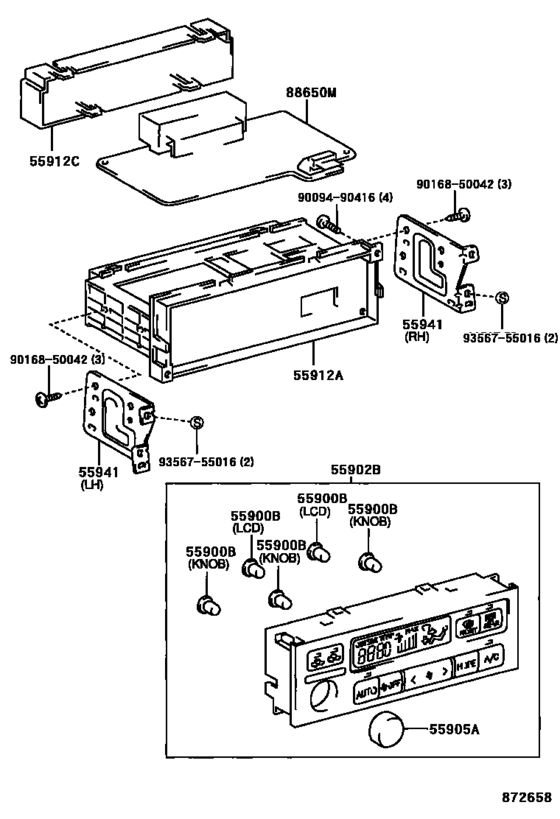

Heating & Air Conditioning - Control & Air Duct ([06.1998 - ] CONTROL,W(AUTO AIR CONDITIONER) (9806- )MCV20..ATM) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55900B
|
55900B
90010-03003
Bulb, Air Conditioner Control
[06.1998 - 12.2002] MCV20..ATM 14V 1.4W,W(GREEN CAP),W(AUTOMATIC AIR CONDITIONER),KNOB |
90010-03003 |
— | ||
|
55900B
|
55900B
90010-03004
Bulb, Air Conditioner Control
[06.1998 - 08.1999] MCV20..ATM 9.1V 0.73W,GREEN CAP,W(AUTOMATIC AIR CONDITIONER),LCD |
90010-03004 |
— | ||
|
55900B
|
55900B
90010-03030
Bulb, Air Conditioner Control
[08.1999 - 12.2002] MCV20..ATM W(AUTOMATIC AIR CONDITIONER),LCD |
90010-03030 |
— | ||
|
55900B
|
55900B
90069-98004
Bulb, Air Conditioner Control
[06.1998 - 07.2002] ACV20,MCV20,SXV20 14V 1.4W,W(MANUAL AIR CONDITIONER) |
90069-98004 |
— | ||
| replacements | |||||
|
55900B
|
55900B
90339-04049 Cap, Position Indicator Lamp[06.1998 - 07.2002] ACV20,MCV20,SXV20 14V 1.4W,W(MANUAL AIR CONDITIONER) |
90339-04049 |
from US $1.48 |
||
|
55900B
|
55900B
90981-11014 Bulb, Position Indicator Lamp[06.1998 - 07.2002] ACV20,MCV20,SXV20 14V 1.4W,W(MANUAL AIR CONDITIONER) |
90981-11014 |
from US $2.15 |
||
|
55902B
|
55902B
55902-33180
Control Sub-Assy, Heater
[06.1998 - 08.1999] MCV20..ATM |
55902-33180 |
— | ||
|
55902B
|
55902B
55902-33250
Control Sub-Assy, Heater
[08.1999 - 12.2002] MCV20..ATM |
55902-33250 |
— | ||
|
55905A
|
55905A
55905-06130
Knob, Heater Control
[06.1998 - 07.2002] ACV20,MCV20,SXV20 W(MANUAL AIR CONDITIONER) |
55905-06130 |
— | ||
|
55905A
|
55905A
55905-30270
Knob, Heater Control
[06.1998 - 12.2002] MCV20..ATM W(AUTOMATIC AIR CONDITIONER) |
55905-30270 |
— | ||
|
55912A
|
55912A
55912-33020
Housing, Heater Control
[06.1998 - 12.2002] MCV20..ATM |
55912-33020 |
— | ||
|
55912C
|
55912C
55912-33030
Housing, Heater Control
[06.1998 - 12.2002] MCV20..ATM |
55912-33030 |
— | ||
|
55941
|
55941
55938-33010
Bracket, Heater Control
[06.1998 - 12.2002] MCV20..ATM LH |
55938-33010 |
— | ||
|
55941
|
55941
55938-33020
Bracket, Heater Control
[06.1998 - 12.2002] MCV20..ATM RH |
55938-33020 |
— | ||
|
88650M
|
88650M
88650-33280
Computer Assy, Air Conditioner
[06.1998 - 07.2001] MCV20..ATM..CND |
88650-33280 |
— | ||
|
88650M
|
88650M
88650-33440
Computer Assy, Air Conditioner
[07.2001 - 12.2002] MCV20..ATM..CND |
88650-33440 |
— | ||
|
9009490416
|
9009490416
90094-90416
New Genuine Part
|
90094-90416 |
— | ||
|
9016850042
|
9016850042
90168-50042
Screw
|
90168-50042 |
— | ||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
