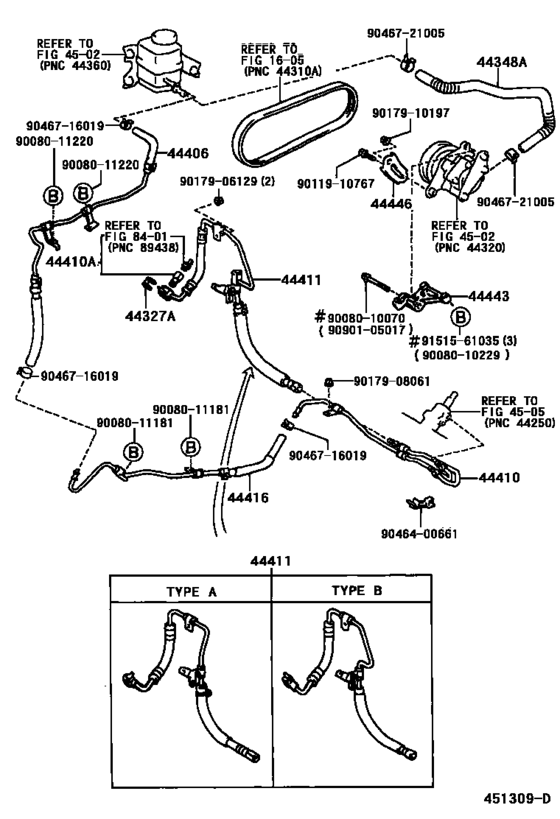

Power Steering Tube ([06.1998 - ] (9806- )MCV20) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[06.1998 - 07.2002] ACV20,MCV20,SXV20 |
44327-30030 |
from US $1.90 |
||
|
44348A
|
44348A
44348-06150 Hose, Oil Reservoir To Pump, No.1[06.1998 - 07.2002] MCV20 |
44348-06150 |
US $82.99 |
||
|
44406
|
44406
44406-06050 Tube Sub-Assy, ReturnRETURN [06.1998 - 07.2002] ACV20,MCV20,SXV20 |
44406-06050 |
from US $31.94 |
||
|
44410
|
44410
44410-06080
Tube Assy, Pressure Feed
[06.1998 - 07.2002] MCV20 |
44410-06080 |
— | ||
|
44410A
|
44410A
44338-08010
Bolt, Union(For Pressure Feed Tube)
[07.2002 - 12.2002] MCV20 |
44338-08010 |
— | ||
|
44410A
|
44410A
44338-33090 Bolt, Union(For Pressure Feed Tube)[06.1998 - 07.2002] MCV20,SXV20 |
44338-33090 |
US $57.79 |
||
|
44411
|
44411
44411-06040
Hose, Pressure Feed
[06.1998 - 07.2002] MCV20 TYPE A:REFER TO ILLUSTRATION |
44411-06040 |
— | ||
|
44411
|
44411
44411-07030 Hose, Pressure FeedPRESSURE FEED [06.1998 - 07.2002] MCV20 TYPE B:REFER TO ILLUSTRATION |
44411-07030 |
US $352.35 |
||
|
44416
|
44416
44416-06050
Tube, Return(For Steering Gear Outlet)
[06.1998 - 07.2002] MCV20,SXV20 |
44416-06050 |
— | ||
|
44443
|
44443
44443-33041 Bracket, Pump[06.1998 - 07.2002] MCV20 |
44443-33041 |
US $49.80 |
||
|
44446
|
44446
44446-AC010
Strut, Adjusting
[06.1998 - 07.2002] MCV20 |
44446-AC010 |
— | ||
|
9008010070
|
9008010070
90080-10070
New Genuine Part
|
90080-10070 |
— | ||
|
9008010229
|
9008010229
90080-10229
New Genuine Part
|
90080-10229 |
— | ||
|
9008011181
|
9008011181
90080-11181
New Genuine Part
|
90080-11181 |
— | ||
|
9008011220
|
9008011220
90080-11220 BOLT WWASHER |
90080-11220 |
US $0.83 |
||
|
9011910767
|
9011910767
90119-10767 New Genuine Part |
90119-10767 |
US $8.06 |
||
|
9017906129
|
9017906129
90179-06129 NUT |
90179-06129 |
US $1.61 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.74 |
||
|
9017910197
|
9017910197
90179-10197 New Genuine Part |
90179-10197 |
US $2.97 |
||
|
9046400661
|
9046400661
90464-00661 New Genuine Part |
90464-00661 |
US $3.06 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9046721005
|
9046721005
90467-21005
Clip(For Suction Hose No.1)
|
90467-21005 |
— | ||
| replacement | |||||
|
9046721005
|
9046721005
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9090105017
|
9090105017
90901-05017 New Genuine Part |
90901-05017 |
US $5.10 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
from US $0.93 |
||
