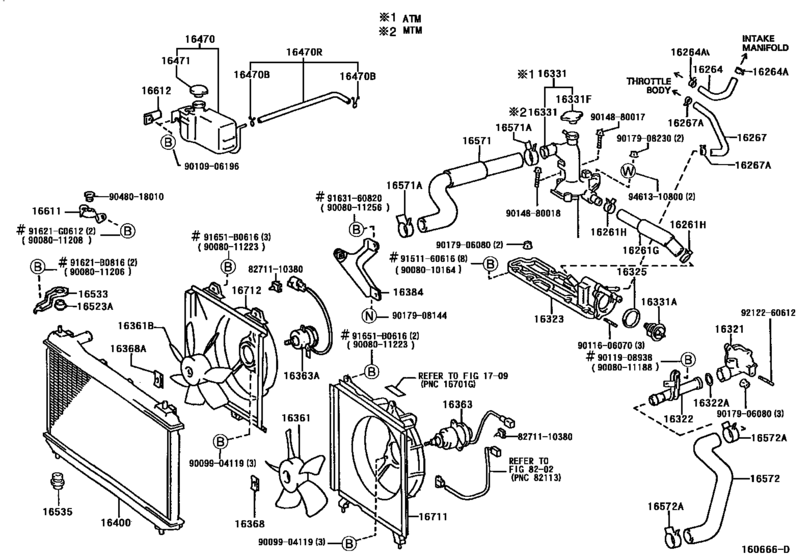

Radiator & Water Outlet ([06.1998 - 08.1999] (9806-9908)1MZFE) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261G
|
16261G
16261-0A010
Hose, Water By-Pass, No.1
[06.1998 - 08.1999] 1MZFE..MCV20..ATM (L) |
16261-0A010 |
— | ||
|
16261G
|
16261G
16261-20010 Hose, Water By-Pass, No.1[06.1998 - 08.1999] 1MZFE..MCV20..MTM; 1MZFE..MCV20..ATM (J) |
16261-20010 |
from US $18.15 |
||
|
16261H
|
16261H
90467-28007 Clip Or Clamp(For Ventilation Hose)[04.2002 - 07.2002] 1MZFE..MCV20 |
90467-28007 |
from US $2.98 |
||
|
16261H
|
16261H
90467-28008 Clip(For Water By-Pass Hose No.1)[06.1998 - 04.2002] 1MZFE..MCV20 |
90467-28008 |
US $4.95 |
||
| replacement | |||||
|
16261H
|
16261H
90467-28007 Clip Or Clamp(For Ventilation Hose)[06.1998 - 04.2002] 1MZFE..MCV20 |
90467-28007 |
from US $2.98 |
||
|
16264
|
16264
16264-0A010
Hose, Water By-Pass, No.2
[06.1998 - 07.2001] 1MZFE..MCV20..ATM |
16264-0A010 |
— | ||
|
16264A
|
16264A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[06.1998 - 07.2002] 1MZFE..MCV20 |
96135-41300 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[06.1998 - 07.2002] 1MZFE..MCV20 |
96135-51300 |
from US $1.86 |
||
|
16267
|
16267
16267-0A010
Hose, Water By-Pass, No.3
[06.1998 - 07.2001] 1MZFE..MCV20..ATM |
16267-0A010 |
— | ||
|
16267A
|
16267A
96135-41300
Clamp Or Clip, Hose(For Water By-Pass Hose)
[06.1998 - 07.2002] 1MZFE..MCV20 |
96135-41300 |
— | ||
| replacement | |||||
|
16267A
|
16267A
96135-51300 Clamp, Hose[06.1998 - 07.2002] 1MZFE..MCV20 |
96135-51300 |
from US $1.86 |
||
|
16321
|
16321
16321-0A020
Inlet, Water
[06.1998 - 07.2001] 1MZFE..MCV20..ATM |
16321-0A020 |
— | ||
| replacement | |||||
|
16321
|
16321
16321-20010 Inlet, Water[06.1998 - 07.2001] 1MZFE..MCV20..ATM |
16321-20010 |
from US $61.01 |
||
|
16322
|
16322
16322-0A020
Pipe, Water Inlet
[06.1998 - 07.2001] 1MZFE..MCV20..ATM |
16322-0A020 |
— | ||
|
16322A
|
16322A
96761-35031 Ring, O(For Water Inlet Pipe)[06.1998 - 07.2002] 1MZFE..MCV20 |
96761-35031 |
from US $2.51 |
||
|
16323
|
16323
16323-0A010 Housing, Water Inlet[06.1998 - 07.2001] 1MZFE..MCV20..ATM |
16323-0A010 |
US $128.13 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[06.1998 - 07.2002] 1MZFE..MCV20 |
16325-62010 |
from US $3.95 |
||
|
16331
|
16331
16304-0A010
Outlet, Water
[06.1998 - 08.1999] 1MZFE..MCV20..ATM |
16304-0A010 |
— | ||
| replacements | |||||
|
16331
|
16331
16331-20040 Outlet, Water[06.1998 - 08.1999] 1MZFE..MCV20..ATM |
16331-20040 |
from US $90.35 |
||
|
16331
|
16331
16401-62090 Cap Sub-Assy(For Water Outlet)[06.1998 - 08.1999] 1MZFE..MCV20..ATM |
16401-62090 |
from US $19.66 |
||
|
16331A
|
16331A
90916-03084
Thermostat
[06.1998 - 07.2002] 1MZFE..MCV20 *WAX 82-95 |
90916-03084 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03129 Thermostat[06.1998 - 07.2002] 1MZFE..MCV20 *WAX 82-95 |
90916-03129 |
from US $19.38 |
||
|
16331F
|
16331F
16401-62090 Cap Sub-Assy(For Water Outlet)[06.1998 - 07.2002] 1MZFE..MCV20 |
16401-62090 |
from US $19.66 |
||
|
16361
|
16361
16361-0A030
Fan
[06.1998 - 08.1999] 1MZFE..MCV20 |
16361-0A030 |
— | ||
|
16361
|
16361
16361-0A120
Fan
[08.1999 - 07.2002] 1MZFE..MCV20 |
16361-0A120 |
— | ||
| replacement | |||||
|
16361
|
16361
16361-0A121
Fan
[08.1999 - 07.2002] 1MZFE..MCV20 |
16361-0A121 |
— | ||
|
16361B
|
16361B
16361-0A040
Fan, No.2
[06.1998 - 08.1999] 1MZFE..MCV20 |
16361-0A040 |
— | ||
|
16361B
|
16361B
16361-0A130
Fan, No.2
[08.1999 - 07.2002] 1MZFE..MCV20 |
16361-0A130 |
— | ||
| replacement | |||||
|
16361B
|
16361B
16361-0A131
Fan, No.2
[08.1999 - 07.2002] 1MZFE..MCV20 |
16361-0A131 |
— | ||
|
16363
|
16363
16363-0A030 Motor, Cooling Fan[06.1998 - 08.1999] 1MZFE..MCV20 |
16363-0A030 |
US $339.25 |
||
|
16363
|
16363
16363-0A050
Motor, Cooling Fan, No.2
[08.1999 - 07.2002] 1MZFE..MCV20 |
16363-0A050 |
— | ||
|
16363A
|
16363A
16363-0A040 Motor, Cooling Fan, No.2[06.1998 - 08.1999] 1MZFE..MCV20 |
16363-0A040 |
US $339.25 |
||
|
16363A
|
16363A
16363-0A060
Motor, Cooling Fan, No.2
[08.1999 - 07.2002] 1MZFE..MCV20 |
16363-0A060 |
— | ||
|
16368
|
16368
16368-0A010 Bracket, Cooling Motor[06.1998 - 08.1999] 1MZFE..MCV20 |
16368-0A010 |
US $13.69 |
||
|
16368A
|
16368A
16368-0A010 Bracket, Cooling Motor[06.1998 - 08.1999] 1MZFE..MCV20 |
16368-0A010 |
US $13.69 |
||
|
16384
|
16384
16384-20010 Bracket, Fan Belt Adjusting Bar[06.1998 - 07.2002] 1MZFE..MCV20 |
16384-20010 |
US $19.95 |
||
|
16400
|
16400
16400-0A060
Radiator Assy
[06.1998 - 08.1998] 1MZFE..MCV20..ATM |
16400-0A060 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-0A062
Radiator Assy
[06.1998 - 08.1998] 1MZFE..MCV20..ATM |
16400-0A062 |
— | ||
|
16400
|
16400
16400-0A061
Radiator Assy
[08.1998 - 05.1999] 1MZFE..MCV20..ATM |
16400-0A061 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-0A062
Radiator Assy
[08.1998 - 05.1999] 1MZFE..MCV20..ATM |
16400-0A062 |
— | ||
|
16400
|
16400
16400-0A062
Radiator Assy
[05.1999 - 08.1999] 1MZFE..MCV20..ATM |
16400-0A062 |
— | ||
|
16400
|
16400
16400-0A200
Radiator Assy
[08.1999 - 07.2001] 1MZFE..MCV20..ATM |
16400-0A200 |
— | ||
|
16400
|
16400
16400-0A270
Radiator Assy
[07.2001 - 12.2002] 1MZFE..MCV20..ATM |
16400-0A270 |
— | ||
|
16470
|
16470
16470-03061 Tank Assy, Radiator Reserve[06.1998 - 03.2000] 5SFE..SXV20; 1MZFE..MCV20..CP |
16470-03061 |
US $39.60 |
||
| replacements | |||||
|
16470
|
16470
91621-B0616 Bolt[06.1998 - 03.2000] 5SFE..SXV20; 1MZFE..MCV20..CP |
91621-B0616 |
from US $0.76 |
||
|
16470
|
16470
16470-03062 Tank Assy, Radiator Reserve[06.1998 - 03.2000] 5SFE..SXV20; 1MZFE..MCV20..CP |
16470-03062 |
from US $49.39 |
||
|
16470
|
16470
16470-03081
Tank Assy, Radiator Reserve
[03.2000 - 07.2002] 1MZFE..MCV20 |
16470-03081 |
— | ||
|
16470B
|
16470B
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose)[06.1998 - 07.2002] 1MZFE..MCV20 |
90467-12058 |
from US $0.70 |
||
|
16470R
|
16470R
16472-0A030 Hose, No.2(For Radiator Reserve Tank)[06.1998 - 07.2002] 1MZFE..MCV20..CP |
16472-0A030 |
US $39.02 |
||
|
16471
|
16471
16471-03010 Cap Sub-Assy, Reserve Tank[06.1998 - 07.2002] 1MZFE..MCV20 |
16471-03010 |
US $29.35 |
||
|
16523A
|
16523A
16523-03010
Cushion, Radiator Support
[06.1998 - 07.2002] 1MZFE..MCV20 |
16523-03010 |
— | ||
|
16533
|
16533
16533-03030
Support, Radiator, Upper
[06.1998 - 03.2000] 5SFE..SXV20..CP; 1MZFE..MCV20..CP |
16533-03030 |
— | ||
|
16533
|
16533
16533-74320 Support, Radiator, Upper[03.2000 - 07.2002] 1MZFE..MCV20 |
16533-74320 |
US $25.19 |
||
|
16535
|
16535
16535-0A020
Support, Radiator, Lower
[06.1998 - 03.2000] 1MZFE..MCV20..CP |
16535-0A020 |
— | ||
| replacement | |||||
|
16535
|
16535
16535-20010 Support, Radiator, Lower[06.1998 - 03.2000] 1MZFE..MCV20..CP |
16535-20010 |
from US $6.21 |
||
|
16535
|
16535
16535-20010 Support, Radiator, Lower[03.2000 - 07.2001] 1MZFE..MCV20 (J) |
16535-20010 |
from US $6.21 |
||
|
16571
|
16571
16571-20020 Hose, Radiator, Inlet[06.1998 - 07.2002] 1MZFE..MCV20 |
16571-20020 |
from US $20.92 |
||
|
16571A
|
16571A
90467-37002
Clip(For Water Inlet Hose)
[06.1998 - 04.2002] 1MZFE..MCV20 |
90467-37002 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[06.1998 - 04.2002] 1MZFE..MCV20 |
90467-37005 |
from US $3.88 |
||
|
16571A
|
16571A
90467-37005 Clip(For Water Inlet Hose)[04.2002 - 07.2002] 1MZFE..MCV20 |
90467-37005 |
from US $3.88 |
||
|
16572
|
16572
16572-20020 Hose, Radiator, Outlet[06.1998 - 07.2002] 1MZFE..MCV20 |
16572-20020 |
from US $25.31 |
||
|
16572A
|
16572A
90467-37002
Clip(For Water Inlet Hose)
[06.1998 - 04.2002] 1MZFE..MCV20 |
90467-37002 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[06.1998 - 04.2002] 1MZFE..MCV20 |
90467-37005 |
from US $3.88 |
||
|
16572A
|
16572A
90467-37005 Clip(For Water Inlet Hose)[04.2002 - 07.2002] 1MZFE..MCV20 |
90467-37005 |
from US $3.88 |
||
|
16611
|
16611
16611-03020
Bracket, Radiator Reserve Tank
[06.1998 - 07.2002] 1MZFE..MCV20 |
16611-03020 |
— | ||
|
16612
|
16612
16612-74030
Bracket, Radiator Reserve Tank, No.2
[06.1998 - 03.2000] 5SFE..SXV20; 1MZFE..MCV20..CP |
16612-74030 |
— | ||
|
16711
|
16711
16711-0A030
Shroud, Fan
[06.1998 - 08.1998] 1MZFE..MCV20 |
16711-0A030 |
— | ||
|
16711
|
16711
16711-0A031
Shroud, Fan
[08.1998 - 08.1999] 1MZFE..MCV20 |
16711-0A031 |
— | ||
|
16711
|
16711
16711-0A130
Shroud, Fan
[08.1999 - 07.2002] 1MZFE..MCV20 |
16711-0A130 |
— | ||
|
16712
|
16712
16711-0A040
Shroud, Fan, No.2
[06.1998 - 08.1999] 1MZFE..MCV20 |
16711-0A040 |
— | ||
|
16712
|
16712
16711-0A140
Shroud, Fan, No.2
[08.1999 - 07.2002] 1MZFE..MCV20 |
16711-0A140 |
— | ||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
91621G0612
|
91621G0612
91621-G0612 New Genuine Part |
91621-G0612 |
US $2.15 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.82 |
||
|
8271110380
|
8271110380
82711-10380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-10380 |
US $1.79 |
||
|
9008010164
|
9008010164
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
9008011188
|
9008011188
90080-11188
New Genuine Part
|
90080-11188 |
— | ||
|
9008011206
|
9008011206
90080-11206
New Genuine Part
|
90080-11206 |
— | ||
|
9008011208
|
9008011208
90080-11208
New Genuine Part
|
90080-11208 |
— | ||
|
9008011223
|
9008011223
90080-11223 New Genuine Part |
90080-11223 |
US $1.16 |
||
|
9008011256
|
9008011256
90080-11256
New Genuine Part
|
90080-11256 |
— | ||
| replacement | |||||
|
9008011256
|
9008011256
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.76 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9010906196
|
9010906196
90109-06196 BOLTFOLDING SEAT |
90109-06196 |
US $1.61 |
||
|
9011606070
|
9011606070
90116-06070 BOLT |
90116-06070 |
US $2.33 |
||
|
9011908938
|
9011908938
90119-08938
New Genuine Part
|
90119-08938 |
— | ||
| replacement | |||||
|
9011908938
|
9011908938
90119-08B27 New Genuine Part |
90119-08B27 |
US $1.43 |
||
|
9014880017
|
9014880017
90148-80017 New Genuine Part |
90148-80017 |
US $1.49 |
||
|
9014880018
|
9014880018
90148-80018 New Genuine Part |
90148-80018 |
US $1.49 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
|
9017908144
|
9017908144
90179-08144 New Genuine Part |
90179-08144 |
US $1.89 |
||
| replacement | |||||
|
9017908144
|
9017908144
90179-08233 NUT |
90179-08233 |
from US $1.27 |
||
|
9017908230
|
9017908230
90179-08230 New Genuine Part |
90179-08230 |
US $2.33 |
||
|
9048018010
|
9048018010
90480-18010 Grommet, Radiator Reserve Tank Hose |
90480-18010 |
from US $2.09 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.84 |
||
|
9163160820
|
9163160820
91631-60820 New Genuine Part |
91631-60820 |
US $1.75 |
||
| replacement | |||||
|
9163160820
|
9163160820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.76 |
||
|
9212260612
|
9212260612
92122-60612 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
92122-60612 |
US $1.22 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
