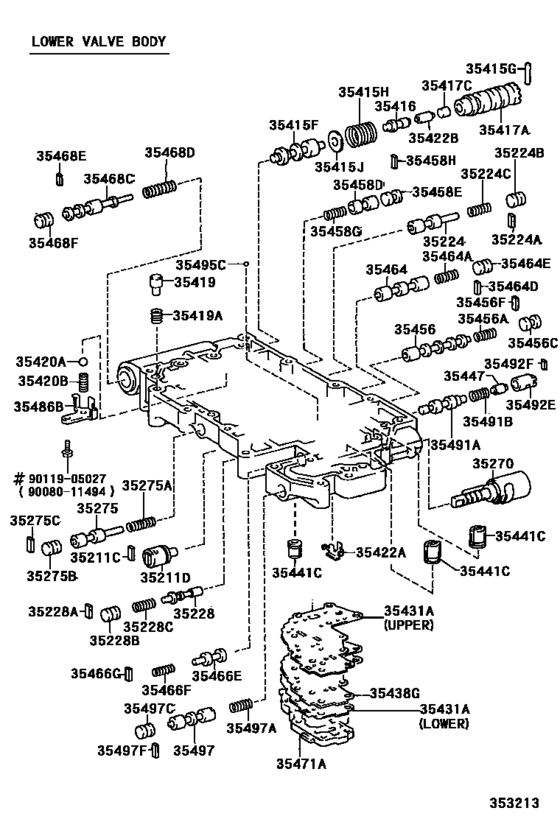

Valve Body & Oil Strainer (Atm) ([06.1998 - 07.2001] A541E (9806-0107)MCV20..ATM) Diagram Toyota SOLARA
- Year
- 1998 - 2002
- Sales region
- U.S.A.
- Frame
- MCV20
- body
- CP
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 06.1998
- To
- 12.2002
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35211C
|
35211C
90282-03001 Key, Straight (For Lock Up Signal Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03001 |
US $1.46 |
||
|
35211D
|
35211D
35211-33010 Sleeve, Lock Up Control Valve[06.1998 - 07.2001] MCV20..ATM |
35211-33010 |
US $12.67 |
||
|
35224
|
35224
35224-33010 Valve, Reverse Control[06.1998 - 07.2001] MCV20..ATM |
35224-33010 |
US $20.82 |
||
|
35224A
|
35224A
90282-03007 Key, Straight (For Reverse Control Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03007 |
US $1.46 |
||
|
35224B
|
35224B
90339-04003 Spring(For Center Differential Control Valve)[06.1998 - 07.2001] MCV20..ATM |
90339-04003 |
US $2.04 |
||
|
35224C
|
35224C
90501-10192 Spring, Compression (For Reverse Control Valve)[06.1998 - 07.2001] MCV20..ATM |
90501-10192 |
US $1.46 |
||
|
35228
|
35228
35228-32010 Valve, 2Nd Modulator[06.1998 - 07.2001] MCV20..ATM |
35228-32010 |
US $7.72 |
||
|
35228A
|
35228A
90282-03018 Key, Straight (For 2Nd Modulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03018 |
US $0.73 |
||
|
35228B
|
35228B
90339-04047 Plug (For 2Nd Modulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90339-04047 |
US $4.08 |
||
|
35228C
|
35228C
90501-09127 Spring, Compression (For 2Nd Modulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90501-09127 |
US $0.87 |
||
|
35270
|
35270
35270-33011 Solenoid Assy, Shift Control[06.1998 - 12.2002] MCV20..ATM |
35270-33011 |
US $148.51 |
||
|
35275
|
35275
35275-33010 Valve, Solenoid Modulator[06.1998 - 07.2001] MCV20..ATM |
35275-33010 |
US $14.56 |
||
|
35275A
|
35275A
90501-12154 Spring, Compression (For Solenoid Modulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90501-12154 |
US $1.46 |
||
|
35275B
|
35275B
90339-04028 Plug(For Low-High Shift Valve)[06.1998 - 07.2001] MCV20..ATM |
90339-04028 |
US $2.18 |
||
|
35275C
|
35275C
90282-03007 Key, Straight (For Reverse Control Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03007 |
US $1.46 |
||
|
35415F
|
35415F
35415-33010 Valve, Primary Regulator[06.1998 - 07.2001] MCV20..ATM |
35415-33010 |
US $29.41 |
||
|
35415G
|
35415G
90250-03085 Key, Straight (For Primary Regulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90250-03085 |
US $1.60 |
||
|
35415H
|
35415H
90501-13037 Spring, Compression (For Primary Regulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90501-13037 |
US $1.46 |
||
|
35415J
|
35415J
90201-06041 Washer (For Primary Regulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90201-06041 |
US $1.75 |
||
|
35416
|
35416
35416-33020 Plunger, Primary Regulator Valve, No.1[06.1998 - 07.2001] MCV20..ATM |
35416-33020 |
US $9.90 |
||
|
35417A
|
35417A
35417-33020 Sleeve, Primary Regulator Valve[06.1998 - 01.1999] MCV20..ATM |
35417-33020 |
US $15.29 |
||
| replacements | |||||
|
35417A
|
35417A
35417-33021 Sleeve, Primary Regulator Valve[06.1998 - 01.1999] MCV20..ATM |
35417-33021 |
US $22.42 |
||
|
35417A
|
35417A
90339-06021 Plug(For Primary Regulator Valve)[06.1998 - 01.1999] MCV20..ATM |
90339-06021 |
US $1.16 |
||
|
35417A
|
35417A
35417-33021 Sleeve, Primary Regulator Valve[01.1999 - 07.2001] MCV20..ATM |
35417-33021 |
US $22.42 |
||
|
35417C
|
35417C
90339-06021 Plug(For Primary Regulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90339-06021 |
US $1.16 |
||
|
35419
|
35419
35419-33010 Valve, Check, No.1[06.1998 - 07.2001] MCV20..ATM |
35419-33010 |
US $5.53 |
||
|
35419A
|
35419A
90501-10056 Spring, Compression (For Check Valve)[06.1998 - 07.2001] MCV20,SXV20..ATM |
90501-10056 |
US $2.04 |
||
|
35420A
|
35420A
90360-10006 Ball (For Pressure Relief)[06.1998 - 07.2001] MCV20..ATM |
90360-10006 |
US $1.16 |
||
|
35420B
|
35420B
90501-15013 Spring (For Pressure Relief)[06.1998 - 07.2001] MCV20..ATM |
90501-15013 |
US $1.60 |
||
|
35422A
|
35422A
35422-33010 St0Pper, Valve Vibrating[06.1998 - 07.2001] MCV20..ATM |
35422-33010 |
US $1.46 |
||
|
35422B
|
35422B
35422-33030 Plunger, Primary Regulator Valve, No.2[06.1998 - 07.2001] MCV20..ATM |
35422-33030 |
US $5.10 |
||
|
35431A
|
35431A
35435-33010 Gasket, Upper Valve Body Cover[06.1998 - 07.2001] MCV20..ATM UPPER |
35435-33010 |
US $2.91 |
||
|
35431A
|
35431A
35436-33010 Gasket, Upper Valve Body Cover[06.1998 - 07.2001] MCV20..ATM LOWER |
35436-33010 |
US $2.91 |
||
|
35438G
|
35438G
35438-33020 Plate, Valve Body, No.2[06.1998 - 07.2001] MCV20..ATM |
35438-33020 |
US $11.65 |
||
|
35441C
|
35441C
35441-32020 Strainer, Solenoid Oil[06.1998 - 07.2001] MCV20..ATM |
35441-32020 |
US $2.62 |
||
|
35447
|
35447
35447-33010 Plunger, Accumulator Control Valve[06.1998 - 07.2001] MCV20..ATM |
35447-33010 |
US $2.18 |
||
|
35456
|
35456
35456-33010 Valve, 2-3 Shift[06.1998 - 07.2001] MCV20..ATM |
35456-33010 |
US $19.51 |
||
|
35456A
|
35456A
90501-09088 Spring, Compression (For 2-3 Shift Valve)[06.1998 - 07.2001] MCV20..ATM |
90501-09088 |
US $2.04 |
||
|
35456C
|
35456C
90339-04026 Plug (For 2-3 Shift Valve)[06.1998 - 07.2001] MCV20,SXV20..ATM |
90339-04026 |
US $2.18 |
||
|
35456F
|
35456F
90282-03007 Key, Straight (For Reverse Control Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03007 |
US $1.46 |
||
|
35458D
|
35458D
35458-33010 Valve, Cut Back[06.1998 - 03.1999] MCV20..ATM |
35458-33010 |
US $10.77 |
||
|
35458D
|
35458D
35458-33011 Valve, Cut Back[03.1999 - 07.2001] MCV20..ATM |
35458-33011 |
US $10.48 |
||
|
35458E
|
35458E
90339-04028 Plug(For Low-High Shift Valve)[06.1998 - 07.2001] MCV20,SXV20..ATM |
90339-04028 |
US $2.18 |
||
|
35458G
|
35458G
90501-06026 Spring, Compression (For Cut Back Valve)[06.1998 - 07.2001] MCV20,SXV20..ATM |
90501-06026 |
US $1.75 |
||
|
35458H
|
35458H
90282-03011 Key, Straight(For Low-High Shift Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03011 |
US $1.60 |
||
|
35464
|
35464
35464-33010 Valve, 1-2 Shift[06.1998 - 07.2001] MCV20..ATM |
35464-33010 |
US $10.34 |
||
|
35464A
|
35464A
90501-09083 Spring, Compression (For 2-3 Shift Valve)[06.1998 - 07.2001] MCV20..ATM |
90501-09083 |
US $2.04 |
||
|
35464D
|
35464D
90282-03007 Key, Straight (For Reverse Control Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03007 |
US $1.46 |
||
|
35464E
|
35464E
90339-04026 Plug (For 2-3 Shift Valve)[06.1998 - 07.2001] MCV20,SXV20..ATM |
90339-04026 |
US $2.18 |
||
|
35466E
|
35466E
35466-33010 Valve, 2Nd Lock[06.1998 - 07.2001] MCV20..ATM |
35466-33010 |
US $9.32 |
||
|
35466F
|
35466F
90501-07106 Spring, Compression (For 2Nd Lock Valve)[06.1998 - 07.2001] MCV20..ATM |
90501-07106 |
US $0.87 |
||
|
35466G
|
35466G
90282-03002 Key, Straight (For Lock Up Signal Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03002 |
US $1.02 |
||
|
35468C
|
35468C
35468-33040 Valve, Secondary Regulator[06.1998 - 07.2001] MCV20..ATM |
35468-33040 |
US $16.02 |
||
|
35468D
|
35468D
90501-14144 Spring, Compression (For Secondary Regulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90501-14144 |
US $2.18 |
||
|
35468E
|
35468E
90282-03014 Key, Straight (For Secondary Regulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03014 |
US $0.58 |
||
|
35468F
|
35468F
90339-04047 Plug (For 2Nd Modulator Valve)[06.1998 - 07.2001] MCV20..ATM |
90339-04047 |
US $4.08 |
||
|
35471A
|
35471A
35471-33011 Cover, Upper Valve Body[06.1998 - 07.2001] MCV20..ATM |
35471-33011 |
US $31.30 |
||
|
35486B
|
35486B
35486-33010 Seat, Pressure Relief Valve Spring[06.1998 - 07.2001] MCV20..ATM |
35486-33010 |
US $2.91 |
||
|
35491A
|
35491A
35491-33010 Valve, Accumulator Control, No.1[06.1998 - 07.2001] MCV20..ATM |
35491-33010 |
US $13.54 |
||
|
35491B
|
35491B
90501-10191 Spring, Compression (For Accumulator Control Valve No.1)[06.1998 - 07.2001] MCV20..ATM |
90501-10191 |
US $0.87 |
||
|
35492E
|
35492E
35492-33011 Sleeve, Accumulator Control Valve[06.1998 - 07.2001] MCV20..ATM |
35492-33011 |
US $5.97 |
||
|
35492F
|
35492F
90282-03007 Key, Straight (For Reverse Control Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03007 |
US $1.46 |
||
|
35495C
|
35495C
35495-22020 Ball (For Transfer Upper Valve Body)[06.1998 - 07.2001] MCV20..ATM |
35495-22020 |
US $4.66 |
||
|
35497
|
35497
35497-33010 Valve, 3-4 Shift[06.1998 - 07.2001] MCV20..ATM |
35497-33010 |
US $16.02 |
||
|
35497A
|
35497A
90501-09083 Spring, Compression (For 2-3 Shift Valve)[06.1998 - 07.2001] MCV20..ATM |
90501-09083 |
US $2.04 |
||
|
35497C
|
35497C
90339-04026 Plug (For 2-3 Shift Valve)[06.1998 - 07.2001] MCV20,SXV20..ATM |
90339-04026 |
US $2.18 |
||
|
35497F
|
35497F
90282-03011 Key, Straight(For Low-High Shift Valve)[06.1998 - 07.2001] MCV20..ATM |
90282-03011 |
US $1.60 |
||
|
9008011494
|
9008011494
90080-11494
New Genuine Part
|
90080-11494 |
— | ||
|
9011905027
|
9011905027
90119-05027 New Genuine Part |
90119-05027 |
US $0.73 |
||
