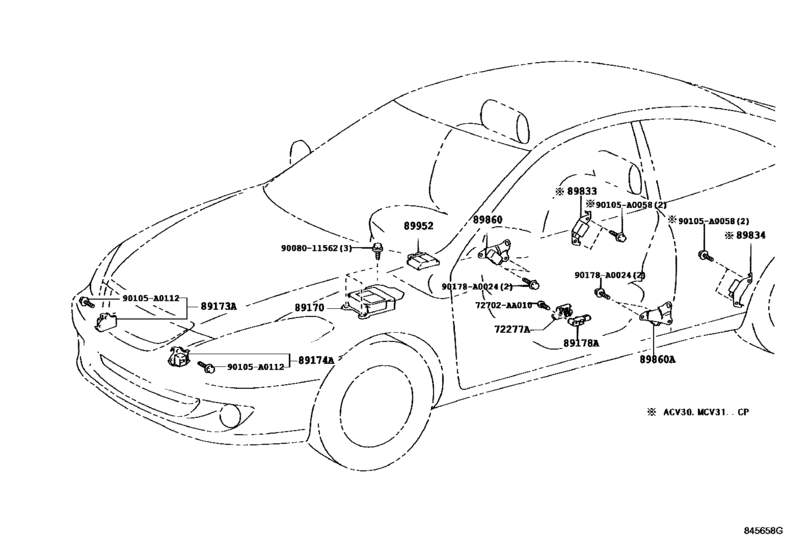

Air Bag ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72277A
|
72277A
72277-06020 Protector, Seat Slide Position SensorSEAT SLIDE POSITION SENSOR [04.2006 - 05.2006] ACV30,MCV31..SLE; ACV30,MCV31..SE W/POWER SEAT; ACV30,MCV31..CP..SE SPORT PACKAGE&W/POWER SEAT; ACV30,MCV31..CP..SE SPORT PACKAGE&W/POWER SEAT & LEATHER SEAT |
72277-06020 |
US $5.53 |
||
|
72277A
|
72277A
72277-33021 Protector, Seat Slide Position Sensor[07.2003 - 03.2006] ACV30,MCV31..SLE; ACV30,MCV31..SE W/POWER SEAT; ACV30,MCV31..CP..SE SPORT PACKAGE&W/POWER SEAT |
72277-33021 |
US $5.53 |
||
|
89170
|
89170
89170-06230
Sensor Assy, Air Bag
[07.2003 - 08.2004] ACV30,MCV31 |
89170-06230 |
— | ||
| replacement | |||||
|
89170
|
89170
89170-06231
Sensor Assy, Air Bag
[07.2003 - 08.2004] ACV30,MCV31 |
89170-06231 |
— | ||
|
89170
|
89170
89170-06231
Sensor Assy, Air Bag
[08.2004 - 05.2006] ACV30,MCV31..5F,5FC |
89170-06231 |
— | ||
|
89170
|
89170
89170-06240
Sensor Assy, Air Bag
[07.2003 - 08.2004] ACV30,MCV31..CP SRS AIR BAG-W/CURTAIN |
89170-06240 |
— | ||
| replacement | |||||
|
89170
|
89170
89170-06241
Sensor Assy, Air Bag
[07.2003 - 08.2004] ACV30,MCV31..CP SRS AIR BAG-W/CURTAIN |
89170-06241 |
— | ||
|
89170
|
89170
89170-06241
Sensor Assy, Air Bag
[08.2004 - 05.2006] ACV30,MCV31..CP..(5F,5FC) SRS AIR BAG-W/CURTAIN |
89170-06241 |
— | ||
|
89170
|
89170
89170-06242
Sensor Assy, Air Bag
[05.2006 - 08.2008] ACV30,MCV31..CP |
89170-06242 |
— | ||
|
89173A
|
89173A
89173-09220
Sensor, Air Bag, Front Rh
[07.2003 - 05.2006] ACV30,MCV31 |
89173-09220 |
— | ||
|
89174A
|
89174A
89173-09220
Sensor, Air Bag, Front Rh
[07.2003 - 05.2006] ACV30,MCV31 |
89173-09220 |
— | ||
|
89178A
|
89178A
89178-06040 Sensor, Seat Position Air BagSEAT POSITION AIR BAG [08.2004 - 05.2006] ACV30,MCV31..SLE; ACV30,MCV31..SE W/POWER SEAT; ACV30,MCV31..CP..SE SPORT PACKAGE&W/POWER SEAT; ACV30,MCV31..CP..SE SPORT PACKAGE&W/POWER SEAT & LEATHER SEAT |
89178-06040 |
US $36.87 |
||
|
89178A
|
89178A
89178-33031 Sensor, Seat Position Air Bag[07.2003 - 07.2004] ACV30,MCV31..SLE; ACV30,MCV31..CP..SE W/POWER SEAT; ACV30,MCV31..CP..SE SPORT PACKAGE&W/POWER SEAT |
89178-33031 |
US $50.38 |
||
|
89833
|
89833
89833-06020
Sensor, Air Bag, Rear Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) SRS AIR BAG-W/CURTAIN |
89833-06020 |
— | ||
|
89834
|
89834
89834-06020
Sensor, Air Bag, Rear Lh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) SRS AIR BAG-W/CURTAIN |
89834-06020 |
— | ||
|
89860
|
89860
89860-06040
Sensor Assy, Side Air Bag, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
89860-06040 |
— | ||
|
89860A
|
89860A
89830-06020
Sensor Assy, Side Air Bag, Lh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
89830-06020 |
— | ||
|
89952
|
89952
89952-33010
Computer, Occupant Detection
[07.2003 - 09.2004] ACV30,MCV31 |
89952-33010 |
— | ||
| replacement | |||||
|
89952
|
89952
89952-33011
Computer, Occupant Detection
[07.2003 - 09.2004] ACV30,MCV31 |
89952-33011 |
— | ||
|
89952
|
89952
89952-33011
Computer, Occupant Detection
[09.2004 - 05.2005] ACV30,MCV31 |
89952-33011 |
— | ||
|
89952
|
89952
89952-35011
Computer, Occupant Detection
[05.2005 - 05.2006] ACV30,MCV31 |
89952-35011 |
— | ||
| replacement | |||||
|
89952
|
89952
89952-35020 Computer, Occupant Detection[05.2005 - 05.2006] ACV30,MCV31 |
89952-35020 |
from US $122.30 |
||
|
72702AA010
|
72702AA010
72702-AA010
Bracket Sub-assy, Rear Seat Back Striker
|
72702-AA010 |
— | ||
|
90105A0058
|
90105A0058
90105-A0058
New Genuine Part
|
90105-A0058 |
— | ||
|
90105A0112
|
90105A0112
90105-A0112
New Genuine Part
|
90105-A0112 |
— | ||
|
90178A0024
|
90178A0024
90178-A0024
New Genuine Part
|
90178-A0024 |
— | ||
|
9008011562
|
9008011562
90080-11562
New Genuine Part
|
90080-11562 |
— | ||
