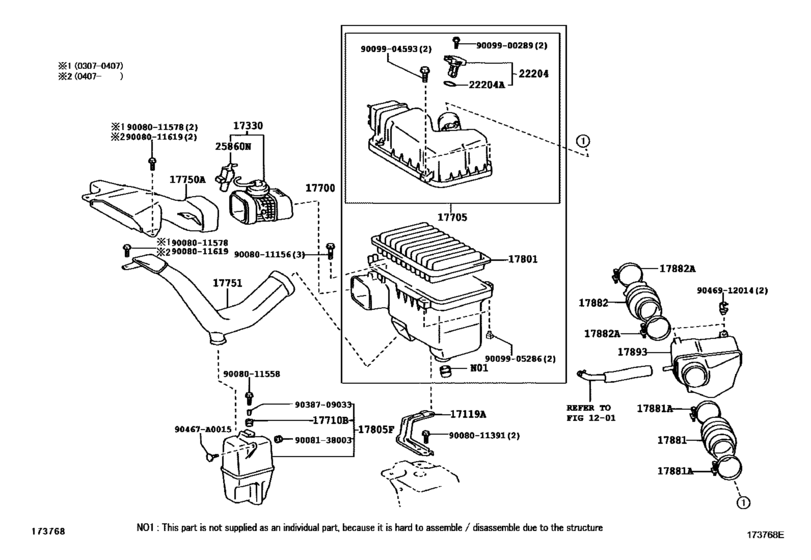

Air Cleaner ([07.2003 - ] (0307- )3MZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17119A
|
17119A
17119-AA020
Bracket, Air Cleaner
[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30..5F,5FC |
17119-AA020 |
— | ||
|
17330
|
17330
17330-0A010
Valve Assy, Intake Air Control, No.3
[07.2003 - 05.2006] 3MZFE..MCV31 |
17330-0A010 |
— | ||
|
17700
|
17700
17700-0A210
Cleaner Assy, Air
[07.2003 - 05.2006] 3MZFE..MCV31 |
17700-0A210 |
— | ||
| replacement | |||||
|
17700
|
17700
17700-0A212
Cleaner Assy, Air
[07.2003 - 05.2006] 3MZFE..MCV31 |
17700-0A212 |
— | ||
|
17705
|
17705
17705-0A170
Cap Sub-Assy, Air Cleaner
[07.2003 - 05.2006] 3MZFE..MCV31 |
17705-0A170 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-0A172
Cap Sub-Assy, Air Cleaner
[07.2003 - 05.2006] 3MZFE..MCV31 |
17705-0A172 |
— | ||
|
17710B
|
17710B
90480-17013 Grommet[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30..5F,5FC |
90480-17013 |
from US $3.21 |
||
|
17750A
|
17750A
17750-AA011
Inlet Assy, Air Cleaner
[07.2003 - 05.2006] 3MZFE..MCV31 |
17750-AA011 |
— | ||
|
17751
|
17751
17751-AA010
Inlet, Air Cleaner, No.1
[07.2003 - 05.2006] 3MZFE..MCV31 |
17751-AA010 |
— | ||
|
17801
|
17801
17801-0H010
Element Sub-Assy, Air Cleaner Filter
[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30..5F,5FC |
17801-0H010 |
— | ||
|
17805F
|
17805F
17805-0A051
Resonator Sub-Assy, Intake Air
[07.2003 - 05.2006] 3MZFE..MCV31 |
17805-0A051 |
— | ||
|
17881
|
17881
17881-AA010
Hose, Air Cleaner, No.1
[07.2003 - 05.2006] 3MZFE..MCV31 |
17881-AA010 |
— | ||
|
17881A
|
17881A
96111-10880 Clamp(For Air Intake Rubber Seal)[05.2006 - 08.2008] 3MZFE..MCV31..CP |
96111-10880 |
from US $8.57 |
||
|
17882
|
17882
17882-AA030
Hose, Air Cleaner, No.2
[07.2003 - 05.2006] 3MZFE..MCV31 |
17882-AA030 |
— | ||
|
17882A
|
17882A
96111-10880 Clamp(For Air Intake Rubber Seal)[05.2006 - 08.2008] 3MZFE..MCV31..CP |
96111-10880 |
from US $8.57 |
||
|
17893
|
17893
17893-0A080
Resonator, Intake Air
[07.2003 - 05.2006] 3MZFE..MCV31 |
17893-0A080 |
— | ||
|
22204
|
22204
22204-0D030
Meter Sub-Assy, Intake Air Flow
[07.2003 - 05.2006] 3MZFE..MCV31 |
22204-0D030 |
— | ||
| replacement | |||||
|
22204
|
22204
22204-22010 Meter Sub-Assy, Intake Air Flow[07.2003 - 05.2006] 3MZFE..MCV31 |
22204-22010 |
from US $130.38 |
||
|
25860N
|
25860N
25860-0A010
Valve Assy, Vacuum Switching
[07.2003 - 05.2006] 3MZFE..MCV31 |
25860-0A010 |
— | ||
|
90467A0015
|
90467A0015
90467-A0015
New Genuine Part
|
90467-A0015 |
— | ||
|
9008011156
|
9008011156
90080-11156 New Genuine Part |
90080-11156 |
US $1.60 |
||
|
9008011391
|
9008011391
90080-11391
New Genuine Part
|
90080-11391 |
— | ||
|
9008011558
|
9008011558
90080-11558
New Genuine Part
|
90080-11558 |
— | ||
|
9008011578
|
9008011578
90080-11578
New Genuine Part
|
90080-11578 |
— | ||
|
9008011619
|
9008011619
90080-11619
New Genuine Part
|
90080-11619 |
— | ||
|
9008138003
|
9008138003
90081-38003
New Genuine Part
|
90081-38003 |
— | ||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.65 |
||
|
9009904593
|
9009904593
90099-04593 BOLT WWASHER |
90099-04593 |
from US $0.59 |
||
|
9009905286
|
9009905286
90099-05286
NUT
|
90099-05286 |
— | ||
|
9038709033
|
9038709033
90387-09033 New Genuine Part |
90387-09033 |
US $1.60 |
||
|
9046912014
|
9046912014
90469-12014 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90469-12014 |
US $1.97 |
||
