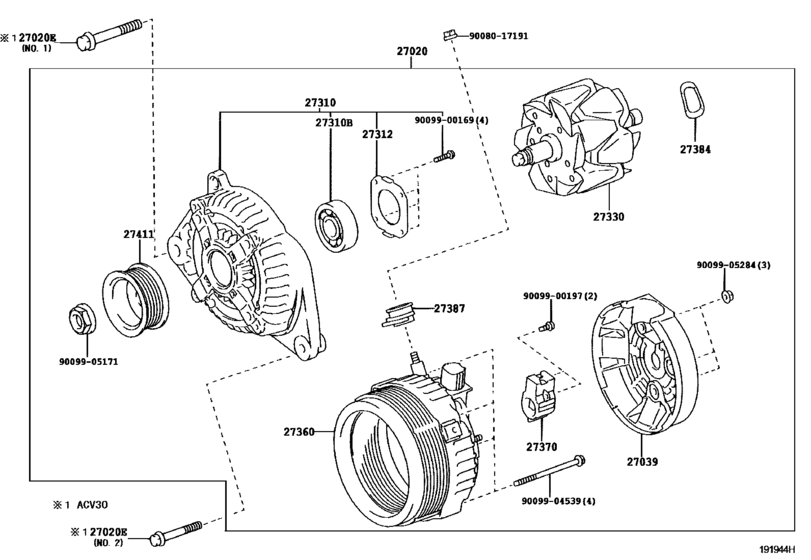

Alternator ([07.2003 - ] 12V 100A (0307-0605)2AZFE ; (0307- )3MZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0A120
Alternator Assy
[07.2003 - 05.2006] 3MZFE..MCV31 12V 100A |
27060-0A120 |
— | ||
|
27039
|
27039
27039-0A110
Cover, Alternator Rear End
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27039-0A110 |
— | ||
|
27310
|
27310
27310-0A110
Frame Assy, Drive End, Alternator
[07.2003 - 05.2006] 3MZFE..MCV31 |
27310-0A110 |
— | ||
|
27310B
|
27310B
90068-10033
Bearing(For Alternator Drive End Frame)
[05.2007 - 08.2008] 2AZFE,3MZFE..ACV30,MCV31..CP |
90068-10033 |
— | ||
|
27310B
|
27310B
90068-10142 Bearing(For Alternator Drive End Frame)[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31 |
90068-10142 |
US $24.90 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27312-72100 |
— | ||
|
27330
|
27330
27330-0F060
Rotor Assy, Alternator
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27330-0F060 |
— | ||
|
27360
|
27360
27360-0A120
Coil Assy, Alternator
[07.2003 - 05.2006] 3MZFE..MCV31 |
27360-0A120 |
— | ||
|
27370
|
27370
27370-0F060
Holder Assy, Alternator Brush
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27370-0F060 |
— | ||
|
27384
|
27384
27384-0A020 Washer[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27384-0A020 |
US $9.32 |
||
|
27387
|
27387
27387-0F060
Insulator, Terminal
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
27387-0F060 |
— | ||
|
27387
|
27387
27387-20130 Insulator, Terminal[09.2006 - 08.2008] 3MZFE..MCV31..CP |
27387-20130 |
from US $4.02 |
||
|
27411
|
27411
27411-0A050
Pulley, Alternator
[07.2003 - 05.2006] 3MZFE..MCV31 |
27411-0A050 |
— | ||
|
9008017191
|
9008017191
90080-17191
New Genuine Part
|
90080-17191 |
— | ||
|
9009900169
|
9009900169
90099-00169
New Genuine Part
|
90099-00169 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.39 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
