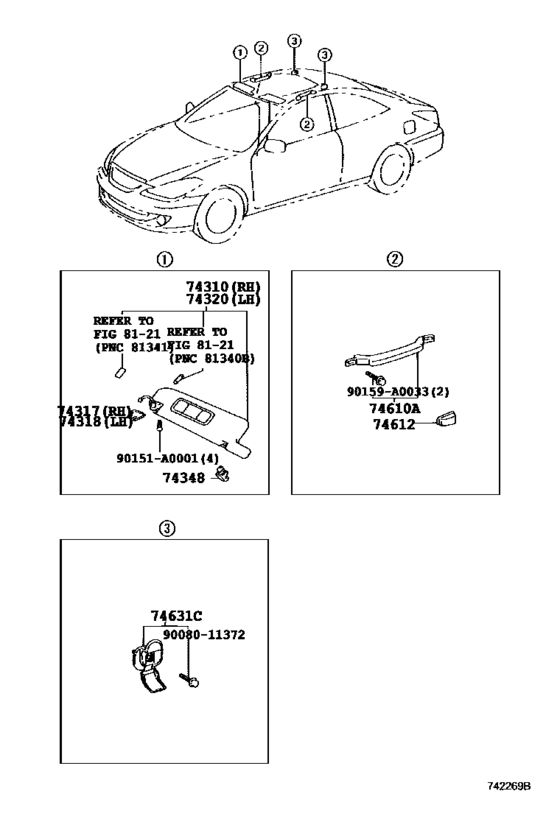

Armrest & Visor ([07.2003 - ] VISOR & ASSIST GRIP (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74310
|
74310
74310-AA271-A1
Visor Assy, Rh
[07.2003 - 03.2005] ACV30,MCV31..CP IVORY,TRIM0# |
74310-AA271-A1 |
— | ||
|
74310
|
74310
74310-AA271-B1
Visor Assy, Rh
[07.2003 - 03.2005] ACV30,MCV31..CP STONE,TRIM1# |
74310-AA271-B1 |
— | ||
|
74310
|
74310
74310-AA272-A1
Visor Assy, Rh
[03.2005 - 05.2006] ACV30,MCV31..CP IVORY,TRIM0# |
74310-AA272-A1 |
— | ||
|
74310
|
74310
74310-AA272-B1
Visor Assy, Rh
[03.2005 - 05.2006] ACV30,MCV31..CP STONE,TRIM1# |
74310-AA272-B1 |
— | ||
|
74317
|
74317
74317-AC010-A1 Cover, Visor Bracket, RhVISOR BRACKET, RH [07.2003 - 05.2006] ACV30,MCV31 IVORY,TRIM0# |
74317-AC010-A1 |
US $6.70 |
||
|
74317
|
74317
74317-AC010-B5
Cover, Visor Bracket, Rh
[07.2003 - 02.2004] ACV30,MCV31..SLE STONE,TRIM1# |
74317-AC010-B5 |
— | ||
|
74318
|
74318
74317-AC010-A1 Cover, Visor Bracket, RhVISOR BRACKET, RH [07.2003 - 05.2006] ACV30,MCV31 IVORY,TRIM0# |
74317-AC010-A1 |
US $6.70 |
||
|
74318
|
74318
74317-AC010-B5
Cover, Visor Bracket, Rh
[07.2003 - 02.2004] ACV30,MCV31..SLE STONE,TRIM1# |
74317-AC010-B5 |
— | ||
|
74320
|
74320
74320-AA231-A1
Visor Assy, Lh
[07.2003 - 03.2005] ACV30,MCV31..CP IVORY,TRIM0# |
74320-AA231-A1 |
— | ||
|
74320
|
74320
74320-AA231-B1
Visor Assy, Lh
[07.2003 - 03.2005] ACV30,MCV31..CP STONE,TRIM1# |
74320-AA231-B1 |
— | ||
|
74320
|
74320
74320-AA232-A1
Visor Assy, Lh
[03.2005 - 05.2006] ACV30,MCV31..CP IVORY,TRIM0# |
74320-AA232-A1 |
— | ||
|
74320
|
74320
74320-AA232-B1
Visor Assy, Lh
[03.2005 - 05.2006] ACV30,MCV31..CP STONE,TRIM1# |
74320-AA232-B1 |
— | ||
|
74348
|
74348
74348-12040-A0 Holder, Visor[07.2003 - 05.2006] ACV30,MCV31 IVORY,TRIM0# |
74348-12040-A0 |
from US $6.44 |
||
|
74348
|
74348
74348-12040-B3 Holder, VisorVISOR [07.2003 - 02.2004] ACV30,MCV31..SLE STONE,TRIM1# |
74348-12040-B3 |
US $10.19 |
||
| replacement | |||||
|
74348
|
74348
74348-12040-B0 Holder, Visor[07.2003 - 02.2004] ACV30,MCV31..SLE STONE,TRIM1# |
74348-12040-B0 |
from US $5.91 |
||
|
74610A
|
74610A
74610-AA050-A0
Grip Sub-Assy, Assist
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) IVORY,TRIM0# |
74610-AA050-A0 |
— | ||
|
74610A
|
74610A
74610-AA050-B1
Grip Sub-Assy, Assist
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC)..SE STONE,TRIM10,11; ACV30,MCV31..CP..5FC..SLE STONE,TRIM1# |
74610-AA050-B1 |
— | ||
|
74612
|
74612
74612-AA030-A0
Cover, Assist Grip
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) IVORY,TRIM0# |
74612-AA030-A0 |
— | ||
|
74612
|
74612
74612-AA030-B1
Cover, Assist Grip
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC)..SE STONE,TRIM10,11; ACV30,MCV31..CP..5FC..SLE STONE,TRIM1# |
74612-AA030-B1 |
— | ||
|
74631C
|
74631C
74631-AA040-A0
Hook, Coat
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) IVORY,TRIM0# |
74631-AA040-A0 |
— | ||
|
74631C
|
74631C
74631-AA040-B0
Hook, Coat
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC)..SE STONE,TRIM10,11; ACV30,MCV31..CP..5FC..SLE STONE,TRIM1# |
74631-AA040-B0 |
— | ||
|
90151A0001
|
90151A0001
90151-A0001
New Genuine Part
|
90151-A0001 |
— | ||
|
90159A0033
|
90159A0033
90159-A0033
New Genuine Part
|
90159-A0033 |
— | ||
|
9008011372
|
9008011372
90080-11372
New Genuine Part
|
90080-11372 |
— | ||
