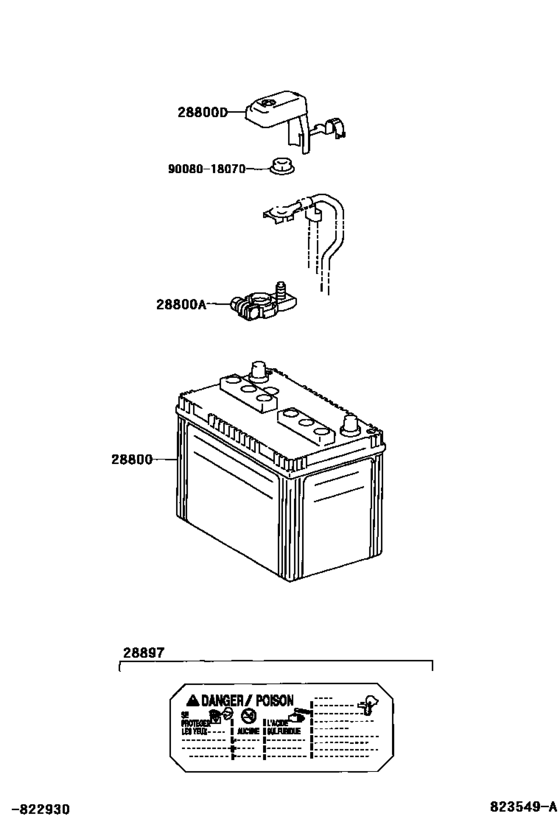

Battery & Battery Cable ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-03044
Battery
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31 80D26L,JOHNSON |
28800-03044 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-67102
Battery
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31 80D26L,JOHNSON |
28800-67102 |
— | ||
|
28800
|
28800
28800-07010
Battery
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31 80D26L,DELPHI |
28800-07010 |
— | ||
|
28800
|
28800
28800-AA041
Battery
[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31 80D26L,GNB |
28800-AA041 |
— | ||
|
28800A
|
28800A
90982-05054 Terminal, Battery Positive[07.2003 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
90982-05054 |
from US $15.23 |
||
|
28800D
|
28800D
82821-06040
Cover, Connector(For Battery Terminal)
[05.2004 - 05.2006] 2AZFE,3MZFE..ACV30,MCV31..5F,5FC |
82821-06040 |
— | ||
|
28800D
|
28800D
82821-12490 Cover, Connector(For Battery Terminal)[07.2003 - 05.2004] 2AZFE,3MZFE..ACV30,MCV31 |
82821-12490 |
from US $8.59 |
||
|
28897
|
28897
28897-AA010 Plate, Battery CautionBATTERY CAUTION [07.2003 - 04.2006] 2AZFE,3MZFE..ACV30,MCV31..4FC,5FC CANADA SPEC |
28897-AA010 |
US $4.80 |
||
|
9008018070
|
9008018070
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
