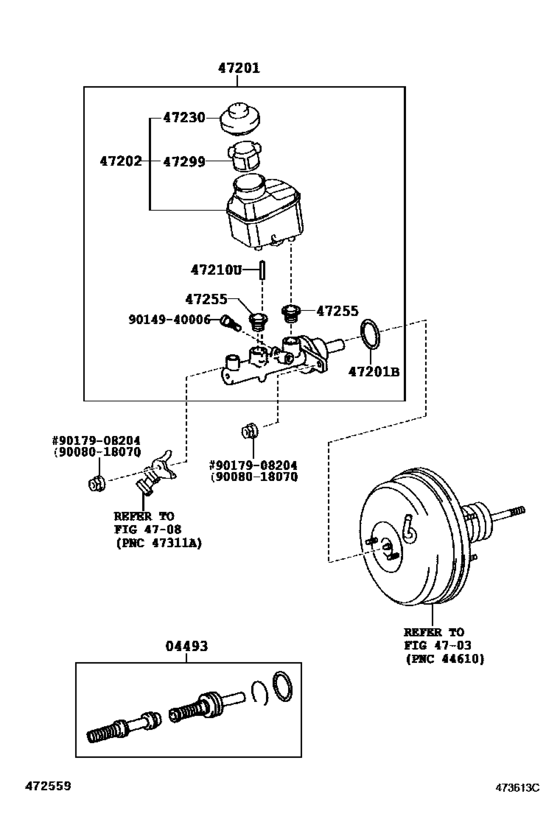

Brake Master Cylinder ([07.2003 - ] W(VSC) (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-06050
Cylinder Kit, Brake Master
[07.2003 - 05.2006] ACV30,MCV31 |
04493-06050 |
— | ||
|
04493
|
04493
04493-33140
Cylinder Kit, Brake Master
[07.2003 - 05.2006] MCV31 VSC-WITH |
04493-33140 |
— | ||
|
47201
|
47201
47201-06290
Cylinder Sub-Assy, Brake Master
[07.2003 - 05.2006] ACV30,MCV31..5FC |
47201-06290 |
— | ||
|
47201
|
47201
47201-33230
Cylinder Sub-Assy, Brake Master
[07.2003 - 05.2006] MCV31 VSC-WITH |
47201-33230 |
— | ||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90029-20059 |
from US $2.19 |
||
|
47202
|
47202
47220-06031
Reservoir Sub-Assy, Brake Master Cylinder
[07.2003 - 05.2006] ACV30,MCV31..4FC,5FC |
47220-06031 |
— | ||
|
47202
|
47202
47220-33131 Reservoir Sub-Assy, Brake Master Cylinder[07.2003 - 05.2006] MCV31 VSC-WITH |
47220-33131 |
US $129.58 |
||
|
47210U
|
47210U
90029-14204 Pin, Straight(For Brake Master Cylinder)[07.2003 - 05.2006] MCV31 VSC-WITH |
90029-14204 |
US $0.83 |
||
|
47230
|
47230
47230-01030
Cap Assy, Brake Master Cylinder Reservoir Filler
[09.2003 - 05.2006] ACV30,MCV31 |
47230-01030 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-01031 Cap Assy, Brake Master Cylinder Reservoir Filler[09.2003 - 05.2006] ACV30,MCV31 |
47230-01031 |
US $9.50 |
||
|
47230
|
47230
47230-12040 Cap Assy, Brake Master Cylinder Reservoir Filler[07.2003 - 09.2003] ACV30,MCV31 |
47230-12040 |
from US $9.32 |
||
|
47255
|
47255
47255-03010 Grommet, Master Cylinder Reservoir[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47255-03010 |
US $4.80 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[07.2003 - 05.2006] MCV31 VSC-WITH |
47255-16010 |
from US $6.45 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47299-20060 |
US $2.41 |
||
|
9008018070
|
9008018070
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
US $1.61 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
