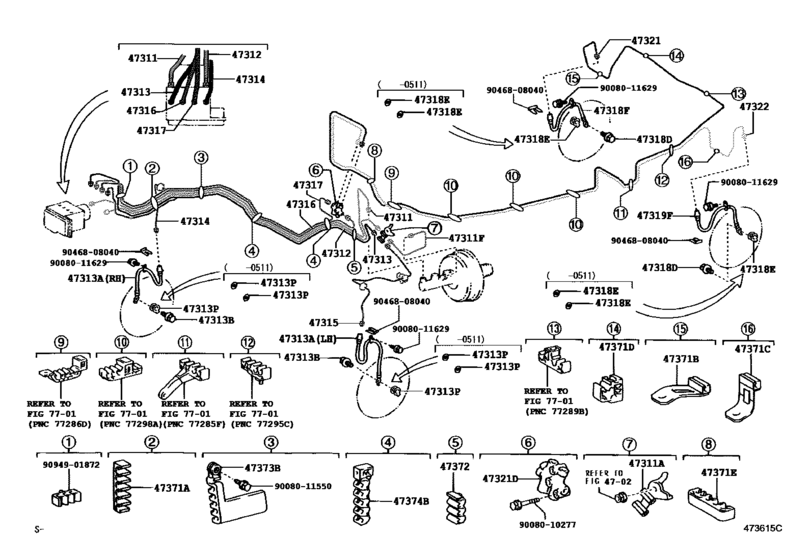

Brake Tube & Clamp ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-06041
Tube, Front Brake, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47311-06041 |
— | ||
|
47311
|
47311
47311-06061
Tube, Front Brake, No.1
[07.2003 - 05.2006] MCV31 VSC-WITH |
47311-06061 |
— | ||
|
47311A
|
47311A
90412-10238 Way(For Front Brake Tube)[07.2003 - 05.2006] ACV30,MCV31 |
90412-10238 |
US $12.96 |
||
|
47311F
|
47311F
47311-06080
Tube, Front Brake, Frame No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47311-06080 |
— | ||
|
47312
|
47312
47312-06081
Tube, Front Brake, No.2
[07.2003 - 05.2006] MCV31 VSC-WITH |
47312-06081 |
— | ||
|
47312
|
47312
47312-06091
Tube, Front Brake, No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47312-06091 |
— | ||
|
47313
|
47313
47313-06081
Tube, Front Brake, No.3
[07.2003 - 05.2006] MCV31 VSC-WITH |
47313-06081 |
— | ||
|
47313
|
47313
47313-06091
Tube, Front Brake, No.3
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47313-06091 |
— | ||
|
47313A
|
47313A
90080-94121
Hose, Flexible, No.1(For Front)
[07.2003 - 11.2005] ACV30,MCV31 RH |
90080-94121 |
— | ||
|
47313A
|
47313A
90080-94122
Hose, Flexible, No.1(For Front)
[07.2003 - 11.2005] ACV30,MCV31 LH |
90080-94122 |
— | ||
|
47313A
|
47313A
90947-A2027
Hose, Flexible, No.1(For Front)
[11.2005 - 05.2006] ACV30,MCV31 RH |
90947-A2027 |
— | ||
|
47313A
|
47313A
90947-A2028
Hose, Flexible, No.1(For Front)
[11.2005 - 05.2006] ACV30,MCV31 LH |
90947-A2028 |
— | ||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[07.2003 - 01.2006] ACV30,MCV31 |
90401-10015 |
from US $3.58 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[02.2006 - 05.2006] ACV30,MCV31 |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[11.2005 - 05.2006] ACV30,MCV31 |
47389-50020 |
from US $4.83 |
||
|
47313P
|
47313P
47389-50021 Gasket(For Front Flexible Hose)[06.2007 - 08.2008] ACV30,MCV31..CP |
47389-50021 |
from US $4.58 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[07.2003 - 11.2005] ACV30,MCV31 |
90430-10074 |
from US $0.86 |
||
|
47314
|
47314
47314-06071
Tube, Front Brake, No.4
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47314-06071 |
— | ||
|
47314
|
47314
47314-06091
Tube, Front Brake, No.4
[07.2003 - 05.2006] MCV31 VSC-WITH |
47314-06091 |
— | ||
|
47315
|
47315
47315-06120
Tube, Front Brake, No.5
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47315-06120 |
— | ||
|
47316
|
47316
47316-06151
Tube, Front Brake, No.6
[07.2003 - 05.2006] MCV31 VSC-WITH |
47316-06151 |
— | ||
|
47316
|
47316
47316-06161
Tube, Front Brake, No.6
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47316-06161 |
— | ||
|
47317
|
47317
47317-06131
Tube, Front Brake, No.7
[07.2003 - 05.2006] MCV31 VSC-WITH |
47317-06131 |
— | ||
|
47317
|
47317
47317-06141
Tube, Front Brake, No.7
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47317-06141 |
— | ||
|
47318D
|
47318D
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[07.2003 - 01.2006] ACV30,MCV31 |
90401-10015 |
from US $3.58 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[02.2006 - 05.2006] ACV30,MCV31 |
90401-10058 |
from US $3.94 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[11.2005 - 05.2006] ACV30,MCV31 |
47389-50020 |
from US $4.83 |
||
|
47318E
|
47318E
47389-50021 Gasket(For Front Flexible Hose)[06.2007 - 08.2008] ACV30,MCV31..CP |
47389-50021 |
from US $4.58 |
||
|
47318E
|
47318E
90430-10074 Gasket(For Oil Pressure Regulator)[07.2003 - 11.2005] ACV30,MCV31 |
90430-10074 |
from US $0.86 |
||
|
47318F
|
47318F
90080-94125
Hose, Flexible(For Rear Rh)
[07.2003 - 11.2005] ACV30,MCV31 |
90080-94125 |
— | ||
|
47318F
|
47318F
90947-A2017
Hose, Flexible(For Rear Rh)
[11.2005 - 05.2006] ACV30,MCV31 |
90947-A2017 |
— | ||
|
47319F
|
47319F
90080-94126
Hose, Flexible(For Rear Lh)
[07.2003 - 11.2005] ACV30,MCV31 |
90080-94126 |
— | ||
|
47319F
|
47319F
90947-A2018
Hose, Flexible(For Rear Lh)
[11.2005 - 05.2006] ACV30,MCV31 |
90947-A2018 |
— | ||
|
47321
|
47321
47321-06080
Tube, Rear Brake, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47321-06080 |
— | ||
|
47321D
|
47321D
90412-10140 Valve Assy, Proportioning[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90412-10140 |
from US $32.50 |
||
|
47322
|
47322
47322-06080
Tube, Rear Brake, No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47322-06080 |
— | ||
|
47371A
|
47371A
90949-01C85 Clamp, Brake Tube, No.2[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90949-01C85 |
from US $6.81 |
||
| replacement | |||||
|
47371A
|
47371A
90080-46366
Clamp, Brake Tube, No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-46366 |
— | ||
|
47371B
|
47371B
47371-32130 Clamp, Brake Tube, No.6[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47371-32130 |
US $9.43 |
||
|
47371C
|
47371C
47371-32140 Clamp, Brake Tube, No.7[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47371-32140 |
US $9.43 |
||
|
47371D
|
47371D
90949-01B45 Clamp(For Clutch Master Cylinder Tube)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90949-01B45 |
US $3.94 |
||
|
47371E
|
47371E
90949-01C53 Clamp, Brake Tube, No.9[07.2003 - 05.2006] ACV30,MCV31 |
90949-01C53 |
US $5.68 |
||
|
47372
|
47372
90464-00778 Clamp, Brake Tube, No.1[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90464-00778 |
US $3.14 |
||
|
47373B
|
47373B
90949-01C55 Clamp, Brake Tube, No.3[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90949-01C55 |
US $14.56 |
||
|
47374B
|
47374B
90949-01C56 Clamp, Brake Tube, No.2[07.2003 - 05.2006] MCV31 VSC-WITH,NO.2 |
90949-01C56 |
US $5.10 |
||
|
47374B
|
47374B
90949-01D06 Clamp, Brake Tube, No.1[07.2003 - 05.2006] MCV31 VSC-WITH,NO.1 |
90949-01D06 |
US $4.02 |
||
| replacement | |||||
|
47374B
|
47374B
90949-A1001
Clamp, Brake Tube, No.1
[07.2003 - 05.2006] MCV31 VSC-WITH,NO.1 |
90949-A1001 |
— | ||
|
9008010277
|
9008010277
90080-10277 New Genuine Part |
90080-10277 |
US $1.02 |
||
|
9008011550
|
9008011550
90080-11550
New Genuine Part
|
90080-11550 |
— | ||
|
9008011629
|
9008011629
90080-11629
New Genuine Part
|
90080-11629 |
— | ||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.37 |
||
|
9094901872
|
9094901872
90949-01872 Clamp, Brake Tube, No.19 |
90949-01872 |
US $1.60 |
||
