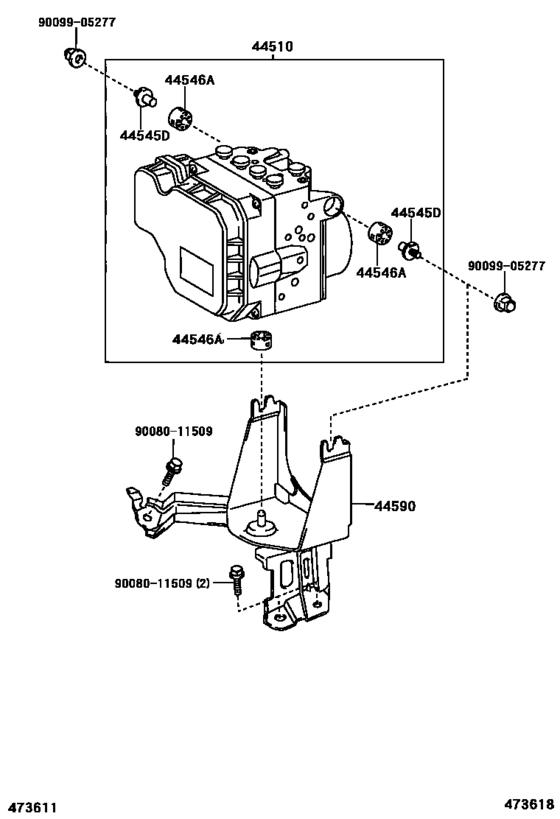

Brake Tube & Clamp ([07.2003 - ] W(VSC) (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44510
|
44510
44050-06060
Actuator Assy, Brake
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
44050-06060 |
— | ||
|
44510
|
44510
44050-33110 Actuator Assy, BrakeBRAKE [07.2003 - 05.2006] MCV31 VSC-WITH |
44050-33110 |
US $1,776.32 |
||
|
44510
|
44510
44050-33190
Actuator Assy, Brake
[05.2006 - 08.2008] MCV31..CP VEHICLE STABILITY CONT-WITH |
44050-33190 |
— | ||
|
44545D
|
44545D
44545-42090 Holder, Brake Actuator Bolt[07.2003 - 05.2006] MCV31 VSC-WITH |
44545-42090 |
US $4.37 |
||
|
44546A
|
44546A
44546-42090 Cushion, Brake Actuator Bolt[07.2003 - 05.2006] MCV31 VSC-WITH |
44546-42090 |
US $4.02 |
||
|
44590
|
44590
44590-06080
Bracket Assy, Brake Actuator
[07.2003 - 05.2004] ACV30,MCV31 |
44590-06080 |
— | ||
| replacement | |||||
|
44590
|
44590
44590-06081
Bracket Assy, Brake Actuator
[07.2003 - 05.2004] ACV30,MCV31 |
44590-06081 |
— | ||
|
44590
|
44590
44590-06081
Bracket Assy, Brake Actuator
[05.2004 - 05.2006] ACV30,MCV31 |
44590-06081 |
— | ||
|
44590
|
44590
44590-06090
Bracket Assy, Brake Actuator
[07.2003 - 05.2006] MCV31 VSC-WITH |
44590-06090 |
— | ||
|
9008011509
|
9008011509
90080-11509 New Genuine Part |
90080-11509 |
US $1.75 |
||
|
9009905277
|
9009905277
90099-05277
New Genuine Part
|
90099-05277 |
— | ||
