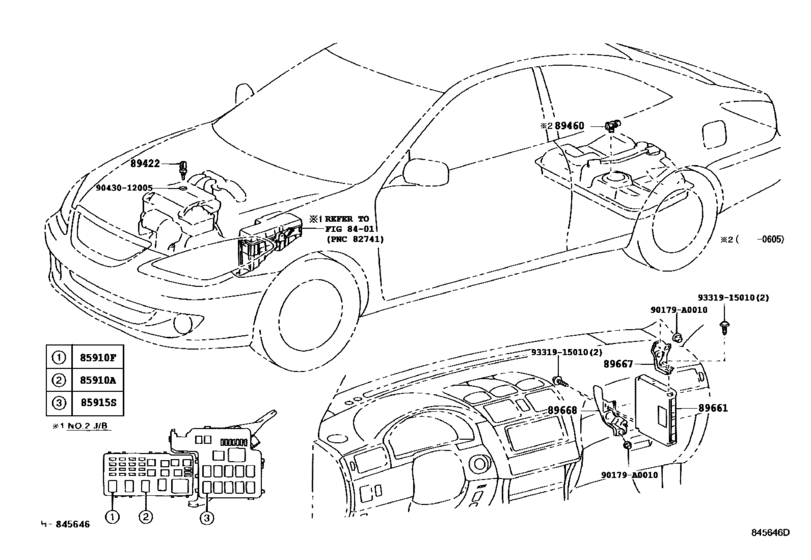

Electronic Fuel Injection System ([07.2003 - ] (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90080-87026
Relay, Water Pump
[07.2003 - 05.2006] ACV30,MCV31 |
90080-87026 |
— | ||
| replacement | |||||
|
85910A
|
85910A
90987-02027 Relay[07.2003 - 05.2006] ACV30,MCV31 |
90987-02027 |
from US $47.82 |
||
|
85910F
|
85910F
90080-87026
Relay, Water Pump
[07.2003 - 05.2006] ACV30,MCV31 |
90080-87026 |
— | ||
| replacement | |||||
|
85910F
|
85910F
90987-02027 Relay[07.2003 - 05.2006] ACV30,MCV31 |
90987-02027 |
from US $47.82 |
||
|
85915S
|
85915S
90080-87026
Relay, Water Pump
[07.2003 - 05.2006] MCV31 |
90080-87026 |
— | ||
| replacement | |||||
|
85915S
|
85915S
90987-02027 Relay[07.2003 - 05.2006] MCV31 |
90987-02027 |
from US $47.82 |
||
|
89422
|
89422
89422-33020 Sensor, Water Temperature (For E.f.i.)[07.2003 - 05.2006] MCV31 P/N LABEL=8942233020 |
89422-33020 |
from US $43.10 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[07.2003 - 05.2006] MCV31 P/N LABEL=8942235010 |
89422-35010 |
from US $43.53 |
||
|
89460
|
89460
89461-0C010
Sensor Assy, Vapor Pressure
[07.2003 - 05.2006] ACV30,MCV31 |
89461-0C010 |
— | ||
|
89661
|
89661
89661-06B80
Computer, Engine Control
[08.2004 - 10.2004] MCV31 |
89661-06B80 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06B81
Computer, Engine Control
[08.2004 - 10.2004] MCV31 |
89661-06B81 |
— | ||
|
89661
|
89661
89661-06B81
Computer, Engine Control
[10.2004 - 03.2005] MCV31 |
89661-06B81 |
— | ||
|
89661
|
89661
89661-06C10
Computer, Engine Control
[03.2005 - 08.2005] MCV31 |
89661-06C10 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06C13
Computer, Engine Control
[03.2005 - 08.2005] MCV31 |
89661-06C13 |
— | ||
|
89661
|
89661
89661-06C11
Computer, Engine Control
[09.2005 - 12.2005] MCV31 |
89661-06C11 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06C13
Computer, Engine Control
[09.2005 - 12.2005] MCV31 |
89661-06C13 |
— | ||
|
89661
|
89661
89661-06C12
Computer, Engine Control
[01.2006 - 05.2006] MCV31 |
89661-06C12 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06C13
Computer, Engine Control
[01.2006 - 05.2006] MCV31 |
89661-06C13 |
— | ||
|
89661
|
89661
89661-06F70
Computer, Engine Control
[05.2006 - 10.2006] MCV31 |
89661-06F70 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06F71
Computer, Engine Control
[05.2006 - 10.2006] MCV31 |
89661-06F71 |
— | ||
|
89661
|
89661
89661-06F71
Computer, Engine Control
[11.2006 - 08.2008] MCV31 |
89661-06F71 |
— | ||
|
89661
|
89661
89661-0X120
Computer, Engine Control
[07.2003 - 04.2004] MCV31 |
89661-0X120 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0X121
Computer, Engine Control
[07.2003 - 04.2004] MCV31 |
89661-0X121 |
— | ||
|
89661
|
89661
89661-0X121
Computer, Engine Control
[04.2004 - 08.2004] MCV31 |
89661-0X121 |
— | ||
|
89667
|
89667
89667-06080
Bracket, Engine Control Computer
[07.2003 - 08.2005] MCV31 |
89667-06080 |
— | ||
|
89668
|
89668
89668-06080
Bracket, Engine Control Computer, No.2
[07.2003 - 08.2005] MCV31 |
89668-06080 |
— | ||
|
90179A0010
|
90179A0010
90179-A0010 Nut, Rear Wiper Link Pivot, No.1 |
90179-A0010 |
US $1.16 |
||
| replacement | |||||
|
90179A0010
|
90179A0010
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
