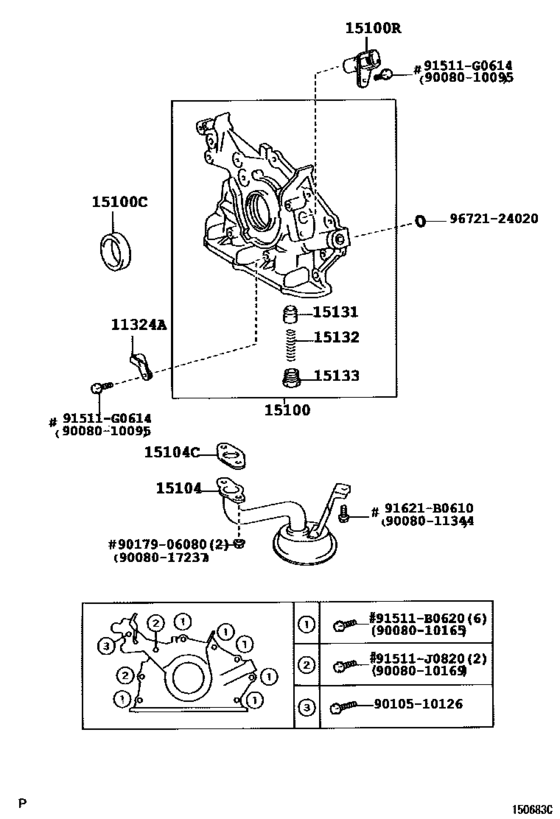

Engine Oil Pump ([07.2003 - ] (0307- )3MZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11324A
|
11324A
11324-20010 Plate, Timing Belt[07.2003 - 05.2006] 3MZFE..MCV31 |
11324-20010 |
US $4.19 |
||
|
15100
|
15100
15100-0A040
Pump Assy, Oil
[07.2003 - 05.2006] 3MZFE..MCV31 |
15100-0A040 |
— | ||
|
15100
|
15100
15100-20050 Pump Assy, Oil[12.2006 - 08.2008] 3MZFE..MCV31..CP (J) |
15100-20050 |
from US $108.43 |
||
|
15100C
|
15100C
90080-31034
Seal(For Oil Pump)
[07.2003 - 05.2006] 3MZFE..MCV31 |
90080-31034 |
— | ||
|
15100C
|
15100C
90311-40022 Oil Seal (For Oil Pump)[12.2006 - 12.2008] 3MZFE..MCV31 (J) |
90311-40022 |
from US $8.42 |
||
|
15100R
|
15100R
90080-19009
Sensor, Crank Position
[07.2003 - 05.2006] 3MZFE..MCV31 |
90080-19009 |
— | ||
|
15100R
|
15100R
90919-05012 Sensor, Crank Position[12.2006 - 08.2008] 3MZFE..MCV31..CP (J) |
90919-05012 |
from US $92.91 |
||
|
15104
|
15104
15104-0A010
Strainer Sub-Assy, Oil
[07.2003 - 05.2006] 3MZFE..MCV31 |
15104-0A010 |
— | ||
|
15104
|
15104
15104-20020 Strainer Sub-Assy, Oil[12.2006 - 08.2008] 3MZFE..MCV31..CP (J) |
15104-20020 |
from US $38.70 |
||
|
15104C
|
15104C
15147-0A010
Gasket(For Oil Strainer)
[07.2003 - 05.2006] 3MZFE..MCV31 |
15147-0A010 |
— | ||
|
15104C
|
15104C
15147-20010 Gasket(For Oil Strainer)[12.2006 - 12.2008] 3MZFE..MCV31 (J) |
15147-20010 |
from US $2.64 |
||
|
15131
|
15131
15131-0A040 Valve, Oil Pump Relief[07.2003 - 05.2006] 3MZFE..MCV31 |
15131-0A040 |
from US $2.28 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[12.2006 - 08.2008] 3MZFE..MCV31..CP (J) |
15131-46040 |
from US $2.87 |
||
|
15132
|
15132
15132-0A020 Spring, Oil Pump Relief Valve[07.2003 - 05.2006] 3MZFE..MCV31; 2AZFE..ACV30 *108 |
15132-0A020 |
US $2.77 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[12.2006 - 08.2008] 3MZFE..MCV31..CP (J) |
15132-46020 |
from US $1.39 |
||
|
15133
|
15133
15133-17010 Plug, Oil Pump Relief Valve[07.2003 - 05.2006] 3MZFE..MCV31 |
15133-17010 |
from US $1.82 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.70 |
||
|
91511G0614
|
91511G0614
91511-G0614 BOLTFLANGE |
91511-G0614 |
US $1.97 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
91621B0610
|
91621B0610
91621-B0610
New Genuine Part
|
91621-B0610 |
— | ||
| replacement | |||||
|
91621B0610
|
91621B0610
91651-B0612 Bolt |
91651-B0612 |
US $2.15 |
||
|
9008010095
|
9008010095
90080-10095
New Genuine Part
|
90080-10095 |
— | ||
|
9008010165
|
9008010165
90080-10165
New Genuine Part
|
90080-10165 |
— | ||
|
9008010169
|
9008010169
90080-10169
BOLT WASHER BASED H
|
90080-10169 |
— | ||
|
9008011344
|
9008011344
90080-11344 New Genuine Part |
90080-11344 |
US $0.87 |
||
| replacement | |||||
|
9008011344
|
9008011344
90080-11646 New Genuine Part |
90080-11646 |
US $0.73 |
||
|
9008017237
|
9008017237
90080-17237
New Genuine Part
|
90080-17237 |
— | ||
|
9010510126
|
9010510126
90105-10126 New Genuine Part |
90105-10126 |
US $2.18 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
|
9672124020
|
9672124020
96721-24020 O-Ring |
96721-24020 |
from US $1.52 |
||
