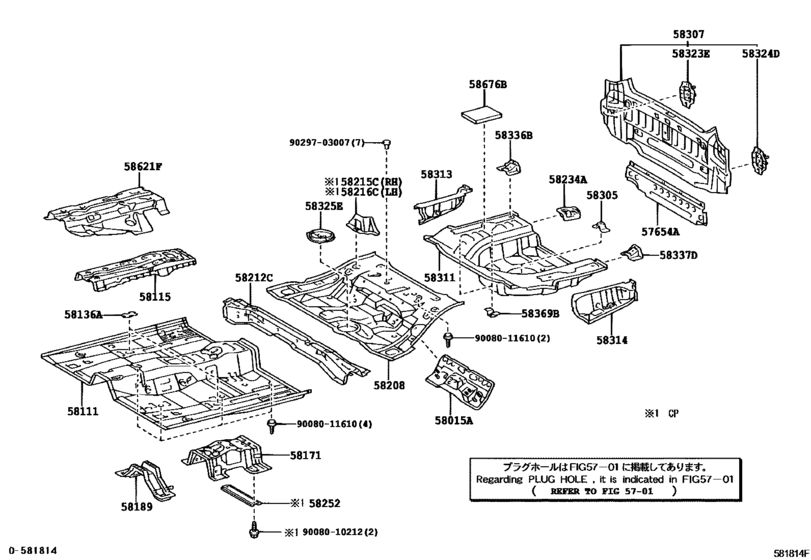

Floor Pan & Lower Back Panel ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57654A
|
57654A
57654-06010
Member, Rear Floor Cross, No.3
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
57654-06010 |
— | ||
|
58015A
|
58015A
58015-06040
Reinforce Sub-Assy, Belt Anchor, No.3 Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58015-06040 |
— | ||
|
58111
|
58111
58111-06904
Pan, Front Floor
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58111-06904 |
— | ||
| replacement | |||||
|
58111
|
58111
58111-33903 Pan, Front Floor[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58111-33903 |
US $713.44 |
||
|
58111
|
58111
58111-06917
Pan, Front Floor
[05.2006 - 08.2008] ACV30,MCV31..CP |
58111-06917 |
— | ||
| replacement | |||||
|
58111
|
58111
58111-33903 Pan, Front Floor[05.2006 - 08.2008] ACV30,MCV31..CP |
58111-33903 |
US $713.44 |
||
|
58115
|
58115
58013-33060 Reinforcement, Front Floor Panel, Front[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58013-33060 |
US $144.14 |
||
|
58136A
|
58136A
58136-06050
Cover, Front Floor Hole
[04.2004 - 05.2006] ACV30,MCV31..5F,5FC |
58136-06050 |
— | ||
|
58136A
|
58136A
58136-33010 Cover, Front Floor Hole[07.2003 - 04.2004] ACV30,MCV31 |
58136-33010 |
US $3.06 |
||
|
58171
|
58171
58107-06020
Reinforcement, Parking Brake Base
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58107-06020 |
— | ||
|
58189
|
58189
58189-06020
Reinforcement, Exhaust Pipe Clamp Bracket
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58189-06020 |
— | ||
|
58208
|
58208
58211-06080
Pan, Center Floor
[07.2003 - 02.2006] ACV30,MCV31 |
58211-06080 |
— | ||
|
58208
|
58208
58211-07070
Pan, Center Floor
[02.2006 - 05.2006] ACV30,MCV31 |
58211-07070 |
— | ||
|
58212C
|
58212C
58212-06020
Pan, Center Floor, Front
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58212-06020 |
— | ||
|
58215C
|
58215C
58215-06020
Reinforcement, Center Floor Panel, No.2 Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
58215-06020 |
— | ||
|
58216C
|
58216C
58216-06020
Reinforcement, Center Floor Panel, No.2 Lh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
58216-06020 |
— | ||
|
58234A
|
58234A
58234-41010 Bracket, Exhaust Pipe Mounting, Inner[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58234-41010 |
US $23.59 |
||
|
58252
|
58252
58252-06020
Brace, Floor Panel, Rear
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
58252-06020 |
— | ||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58351-33010 |
US $7.35 |
||
|
58307
|
58307
58307-AA030
Panel Sub-Assy, Body Lower Back
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58307-AA030 |
— | ||
| replacements | |||||
|
58307
|
58307
58307-AA031
Panel Sub-Assy, Body Lower Back
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58307-AA031 |
— | ||
|
58307
|
58307
90950-01955 Plug, Hole, No.1(For Dash Panel)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90950-01955 |
from US $1.79 |
||
|
58307
|
58307
58307-AA031
Panel Sub-Assy, Body Lower Back
[05.2006 - 08.2008] ACV30,MCV31..CP |
58307-AA031 |
— | ||
|
58311
|
58311
58311-06040 Pan, Rear Floor[07.2003 - 02.2005] ACV30,MCV31..CP |
58311-06040 |
US $503.78 |
||
|
58311
|
58311
58311-07040
Pan, Rear Floor
[02.2005 - 05.2006] ACV30,MCV31..5F,5FC |
58311-07040 |
— | ||
| replacement | |||||
|
58311
|
58311
58311-06040 Pan, Rear Floor[02.2005 - 05.2006] ACV30,MCV31..5F,5FC |
58311-06040 |
US $503.78 |
||
|
58313
|
58313
58305-06030 Panel Sub-Assy, Rear Floor Side, Rh[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58305-06030 |
US $72.80 |
||
|
58314
|
58314
58306-06010
Panel, Rear Floor Side, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58306-06010 |
— | ||
|
58323E
|
58323E
58323-AA030
Reinforcement, Rear Bumper Arm Support, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58323-AA030 |
— | ||
|
58324D
|
58324D
58324-AA030
Reinforcement, Rear Bumper Arm Support, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58324-AA030 |
— | ||
|
58325E
|
58325E
58325-06020
Cover, Rear Floor Service Hole
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58325-06020 |
— | ||
|
58325E
|
58325E
58325-06050
Cover, Rear Floor Service Hole
[03.2007 - 08.2008] ACV30,MCV31..CP |
58325-06050 |
— | ||
|
58336B
|
58336B
58336-33010 Reinforcement, Rear Floor Pan[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58336-33010 |
US $25.19 |
||
|
58337D
|
58337D
58337-33020 Reinforcement, Rear Floor Pan, Lh[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58337-33020 |
US $24.02 |
||
|
58369B
|
58369B
58369-06010 Bracket, Fuel Tube, No.3[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58369-06010 |
US $3.35 |
||
|
58621F
|
58621F
58621-06070
Silencer, Center Console, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
58621-06070 |
— | ||
|
58676B
|
58676B
58676-33010 Pad, Rear Floor Silencer, No.1 Rh[07.2003 - 05.2006] ACV30,MCV31 |
58676-33010 |
US $5.82 |
||
|
9008010212
|
9008010212
90080-10212 New Genuine Part |
90080-10212 |
US $1.16 |
||
|
9008011610
|
9008011610
90080-11610
Bolt, Weld(For Front Floor Pan)
|
90080-11610 |
— | ||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
