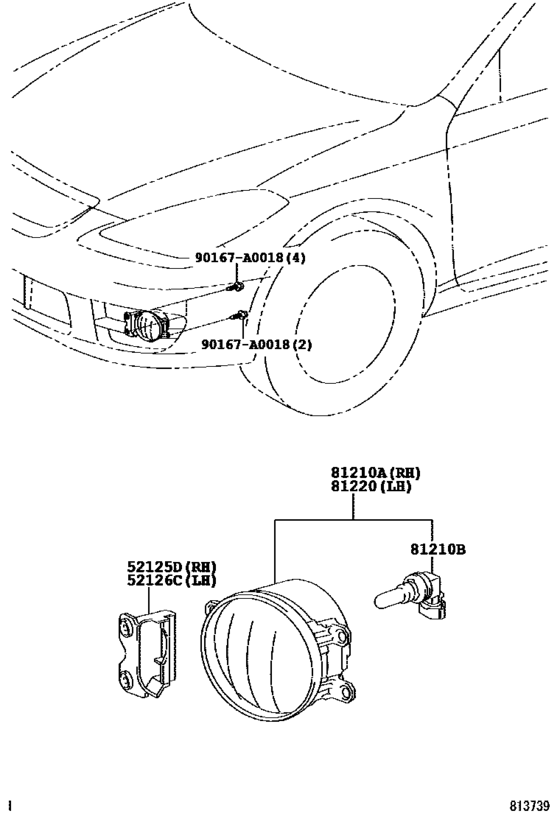

Fog Lamp ([05.2006 - ] (0605- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52125D
|
52125D
52125-06070
Bracket, Fog Lamp Mounting, Rh
[05.2006 - 12.2008] ACV30,MCV31 |
52125-06070 |
— | ||
|
52126C
|
52126C
52126-06070
Bracket, Fog Lamp Mounting, Lh
[05.2006 - 12.2008] ACV30,MCV31 |
52126-06070 |
— | ||
|
81210A
|
81210A
81210-06070 Lamp Assy, Fog, Rh[05.2006 - 08.2008] ACV30,MCV31..CP |
81210-06070 |
US $163.07 |
||
| replacement | |||||
|
81210A
|
81210A
81210-06071 Lamp Assy, Fog, Rh[05.2006 - 08.2008] ACV30,MCV31..CP |
81210-06071 |
from US $126.62 |
||
|
81210A
|
81210A
81210-AA030 Lamp Assy, Fog, RhFOG, RH [07.2003 - 05.2006] ACV30,MCV31 |
81210-AA030 |
from US $154.17 |
||
|
81210B
|
81210B
90981-AD002 Bulb, Fog LampFOG LAMP [07.2003 - 05.2006] ACV30,MCV31..5F,5FC 12V 45W |
90981-AD002 |
from US $17.46 |
||
|
81210B
|
81210B
90981-AD006 Bulb, Fog Lamp[05.2006 - 08.2008] ACV30,MCV31..CP 12V 55W |
90981-AD006 |
from US $14.57 |
||
|
81220
|
81220
81210-AA030 Lamp Assy, Fog, RhFOG, RH [07.2003 - 05.2006] ACV30,MCV31 |
81210-AA030 |
from US $154.17 |
||
|
81220
|
81220
81220-06070 Lamp Assy, Fog, Lh[05.2006 - 08.2008] ACV30,MCV31..CP |
81220-06070 |
US $163.07 |
||
| replacement | |||||
|
81220
|
81220
81220-06071 Lamp Assy, Fog, Lh[05.2006 - 08.2008] ACV30,MCV31..CP |
81220-06071 |
from US $131.14 |
||
|
90167A0018
|
90167A0018
90167-A0018 SCREW PAN TAPPING |
90167-A0018 |
US $0.73 |
||
