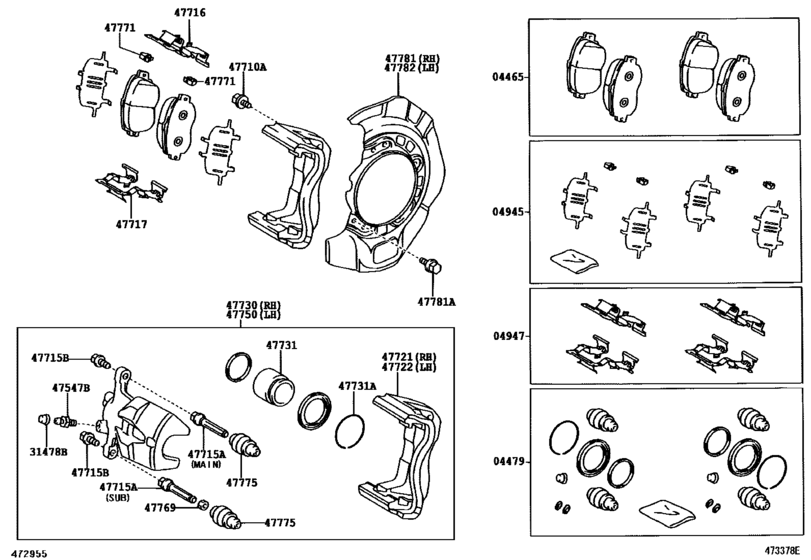

Front Disc Brake Caliper & Dust Cover ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-08030 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [07.2003 - 05.2006] ACV30,MCV31 MARK SELP PS558H |
04465-08030 |
US $160.19 |
||
|
04479
|
04479
04478-08081 Cylinder Kit, Disc Brake, Front[07.2003 - 11.2005] ACV30,MCV31 |
04478-08081 |
from US $28.83 |
||
|
04479
|
04479
04478-08100 Cylinder Kit, Disc Brake, Front[03.2006 - 05.2006] ACV30,MCV31 |
04478-08100 |
US $38.30 |
||
|
04479
|
04479
04478-08110
Cylinder Kit, Disc Brake, Front
[11.2005 - 03.2006] ACV30,MCV31 |
04478-08110 |
— | ||
| replacement | |||||
|
04479
|
04479
04478-08100 Cylinder Kit, Disc Brake, Front[11.2005 - 03.2006] ACV30,MCV31 |
04478-08100 |
US $38.30 |
||
|
04945
|
04945
04945-58010 Shim Kit, Anti Squeal, Front[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
04945-58010 |
from US $28.06 |
||
|
04947
|
04947
04947-08040 Fitting Kit, Disc Brake, FrontDISC BRAKE, FRONT [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
04947-08040 |
from US $18.64 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
31478-30010 |
from US $1.48 |
||
|
47547B
|
47547B
47547-20010 Plug, Bleeder(For Release Cylinder)[07.2003 - 04.2006] ACV30,MCV31 |
47547-20010 |
from US $3.58 |
||
|
47710A
|
47710A
90080-10067
Bolt, Hexagon(For Front Disc Brake Caliper)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC *12-1.25PX29.5-23 |
90080-10067 |
— | ||
|
47715A
|
47715A
47715-06020
Pin, Front Disc Brake Cylinder Slide
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC SUB PIN SIDE |
47715-06020 |
— | ||
|
47715A
|
47715A
47715-06040
Pin, Front Disc Brake Cylinder Slide
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC MAIN PIN SIDE |
47715-06040 |
— | ||
|
47715B
|
47715B
90016-AA103
Bolt(For Front Disc Brake Cylinder Slide)
[05.2006 - 08.2008] ACV30,MCV31..CP |
90016-AA103 |
— | ||
|
47715B
|
47715B
90080-10050
Bolt(For Front Disc Brake Cylinder Slide)
[07.2003 - 04.2006] ACV30,MCV31 |
90080-10050 |
— | ||
| replacement | |||||
|
47715B
|
47715B
90016-AA103
Bolt(For Front Disc Brake Cylinder Slide)
[07.2003 - 04.2006] ACV30,MCV31 |
90016-AA103 |
— | ||
|
47716
|
47716
47716-08030
Plate, Pad Support, No.1(For Front Disc Brake)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47716-08030 |
— | ||
|
47717
|
47717
47717-08030
Plate, Pad Support, No.2(For Front Disc Brake)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47717-08030 |
— | ||
|
47721
|
47721
47721-08020 Mounting, Front Disc Brake Cylinder, RhFRONT DISC BRAKE CYLINDER, RH [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47721-08020 |
US $113.57 |
||
|
47722
|
47722
47721-08020 Mounting, Front Disc Brake Cylinder, RhFRONT DISC BRAKE CYLINDER, RH [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47721-08020 |
US $113.57 |
||
|
47730
|
47730
47730-08030
Cylinder Assy, Front Disc Brake, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47730-08030 |
— | ||
|
47731
|
47731
47731-08020
Piston, Front Disc Brake
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47731-08020 |
— | ||
|
47731A
|
47731A
90080-52108 Ring, Set(For Front Disc Brake Piston)SET(FOR FRONT DISC BRAKE PISTON) [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-52108 |
US $1.60 |
||
|
47750
|
47750
47750-08030
Cylinder Assy, Disc Brake, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47750-08030 |
— | ||
|
47769
|
47769
47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47769-50010 |
from US $0.74 |
||
|
47771
|
47771
47771-33020 Plate, Pad Wear Indicator, No.1[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47771-33020 |
US $4.30 |
||
|
47775
|
47775
47775-06030
Boot, Bush Dust(For Front Disc Brake)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
47775-06030 |
— | ||
|
47781
|
47781
47781-06110
Cover, Disc Brake Dust, Front Rh
[05.2006 - 08.2008] ACV30,MCV31..CP |
47781-06110 |
— | ||
|
47781
|
47781
47781-08020
Cover, Disc Brake Dust, Front Rh
[07.2003 - 05.2006] ACV30,MCV31 |
47781-08020 |
— | ||
|
47781A
|
47781A
90080-11429
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-11429 |
— | ||
|
47782
|
47782
47782-06110
Cover, Disc Brake Dust, Front Lh
[05.2006 - 08.2008] ACV30,MCV31..CP |
47782-06110 |
— | ||
|
47782
|
47782
47782-08020
Cover, Disc Brake Dust, Front Lh
[07.2003 - 05.2006] ACV30,MCV31 |
47782-08020 |
— | ||
