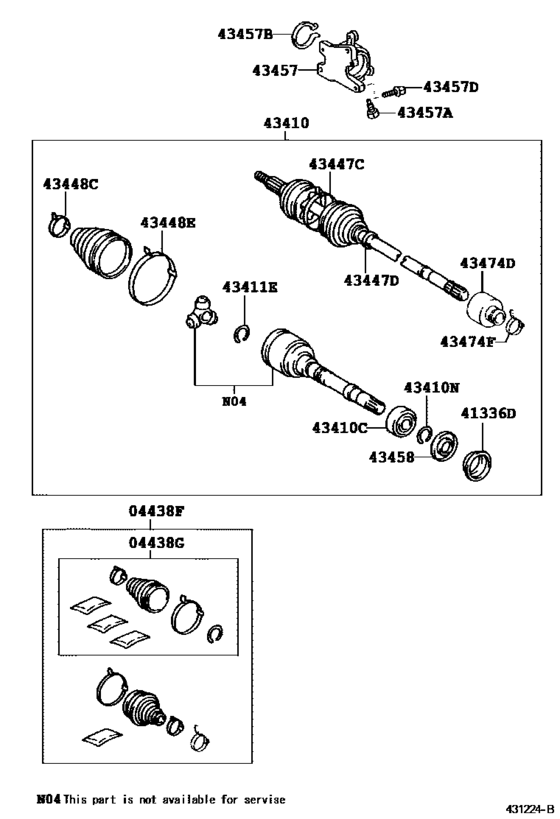

Front Drive Shaft ([07.2003 - ] RH (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-08080 Boot Kit, Front Drive Shaft, In & Outboard, Rh[07.2003 - 05.2006] MCV31 |
04438-08080 |
from US $145.60 |
||
|
04438G
|
04438G
04438-08010 Boot Kit, Front Drive Shaft Inboard Joint, Rh[07.2003 - 05.2006] MCV31 |
04438-08010 |
US $81.84 |
||
|
41336D
|
41336D
41336-06020 Cover, Front Drive Shaft Dust, Rh[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
41336-06020 |
from US $11.53 |
||
|
43410
|
43410
43410-06480
Shaft Assy, Front Drive, Rh
[07.2003 - 05.2006] MCV31 |
43410-06480 |
— | ||
|
43410C
|
43410C
90080-36133 Bearing (For Front Drive Shaft)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-36133 |
from US $25.78 |
||
|
43410N
|
43410N
90080-52013
Ring, Hole Snap (For Front Drive Shaft Rh)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-52013 |
— | ||
|
43411E
|
43411E
43425-08040 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[07.2003 - 05.2006] MCV31 |
43425-08040 |
US $0.44 |
||
|
43447C
|
43447C
42345-04040 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[07.2003 - 05.2006] MCV31 |
42345-04040 |
US $4.80 |
||
|
43447D
|
43447D
42345-04030 Clamp (For Front Axle Outboard Joint Boot Rh)[07.2003 - 05.2006] MCV31;ACV30..5F |
42345-04030 |
US $2.48 |
||
|
43448C
|
43448C
42345-08070 Clamp (For Front Axle Inboard Joint Boot Rh)[07.2003 - 05.2006] MCV31 |
42345-08070 |
US $3.49 |
||
|
43448E
|
43448E
42345-08060 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[07.2003 - 05.2006] MCV31 |
42345-08060 |
US $4.80 |
||
|
43457
|
43457
43457-08010
Bracket, Drive Shaft Bearing
[07.2003 - 05.2006] MCV31 |
43457-08010 |
— | ||
|
43457A
|
43457A
90119-10461 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC *10-1.25PX19.8-8.3 |
90119-10461 |
from US $1.08 |
||
|
43457B
|
43457B
90521-78002 Ring, Hole Snap(For Rear Drive Shaft)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90521-78002 |
from US $2.26 |
||
|
43457D
|
43457D
90080-10087
Bolt(For Drive Shaft Bearring Bracket Setting No.2)
[07.2003 - 05.2006] ACV30,MCV31..5FC |
90080-10087 |
— | ||
|
43458
|
43458
43458-06020 Cover, Front Drive Shaft Dust[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
43458-06020 |
US $11.65 |
||
|
43474D
|
43474D
43474-06011 Damper, Front Drive Shaft, RhFRONT DRIVE SHAFT, RH [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
43474-06011 |
US $44.12 |
||
|
43474F
|
43474F
42345-06100 Clamp (For Front Drive Shaft Damper Rh)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
42345-06100 |
US $1.60 |
