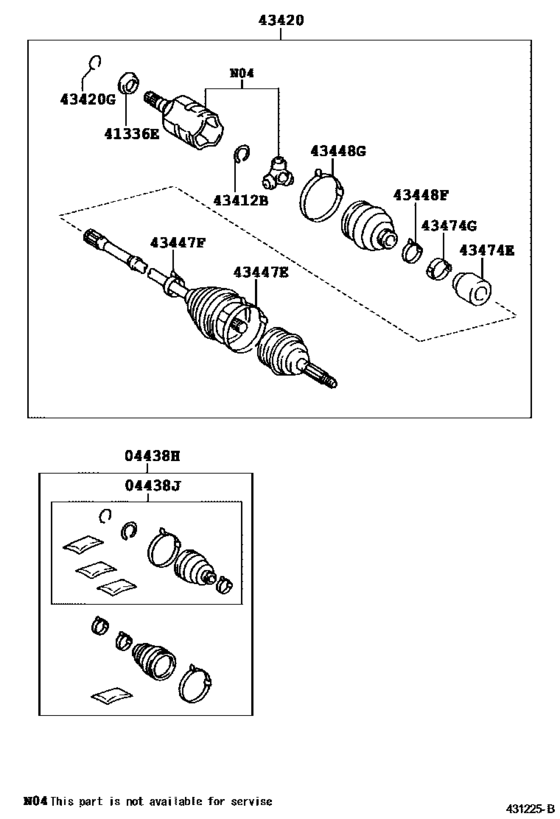

Front Drive Shaft ([07.2003 - ] LH (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-0E010 Boot Kit, Front Drive Shaft, In & Outboard, Lh[07.2003 - 05.2006] MCV31 |
04438-0E010 |
from US $145.60 |
||
|
04438J
|
04438J
04438-08020 Boot Kit, Front Drive Shaft Inboard Joint, Lh[07.2003 - 05.2006] MCV31 |
04438-08020 |
US $81.84 |
||
|
41336E
|
41336E
41336-07010 Cover, Front Drive Shaft Dust, Lh[07.2003 - 05.2006] MCV31 |
41336-07010 |
US $33.63 |
||
|
43412B
|
43412B
43425-08040 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[07.2003 - 05.2006] MCV31 |
43425-08040 |
US $0.44 |
||
|
43420
|
43420
43420-06450
Shaft Assy, Front Drive, Lh
[07.2003 - 05.2006] MCV31 |
43420-06450 |
— | ||
|
43420G
|
43420G
90080-52017
Ring, Hole Snap (For Front Drive Shaft Lh)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-52017 |
— | ||
|
43447E
|
43447E
42345-04040 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[07.2003 - 05.2006] MCV31 |
42345-04040 |
US $4.80 |
||
|
43447F
|
43447F
42345-04030 Clamp (For Front Axle Outboard Joint Boot Rh)[07.2003 - 05.2006] MCV31;ACV30..5F |
42345-04030 |
US $2.48 |
||
|
43448F
|
43448F
42345-08070 Clamp (For Front Axle Inboard Joint Boot Rh)[07.2003 - 05.2006] MCV31 |
42345-08070 |
US $3.49 |
||
|
43448G
|
43448G
42345-08060 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[07.2003 - 05.2006] MCV31 |
42345-08060 |
US $4.80 |
||
|
43474E
|
43474E
43474-06050
Damper, Front Drive Shaft, Lh
[07.2003 - 05.2006] MCV31 |
43474-06050 |
— | ||
|
43474G
|
43474G
42345-06100 Clamp (For Front Drive Shaft Damper Rh)[07.2003 - 05.2006] ACV30,MCV31..5FC |
42345-06100 |
US $1.60 |
