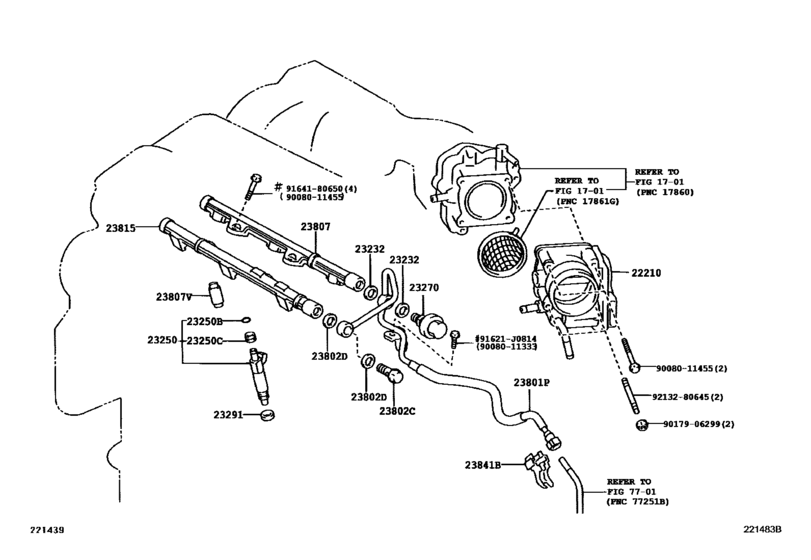

Fuel Injection System ([07.2003 - ] (0307- )3MZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22030-0A020 Body Assy, ThrottleTHROTTLE [07.2003 - 05.2006] 3MZFE..MCV31 |
22030-0A020 |
US $1,153.15 |
||
|
22210
|
22210
22030-20060 Body Assy, Throttle[12.2006 - 12.2008] 3MZFE..MCV31 (J) |
22030-20060 |
US $939.12 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[07.2003 - 05.2006] 3MZFE..MCV31 |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-0A020
Injector Assy, Fuel
[07.2003 - 05.2006] 3MZFE..MCV31 (L) |
23209-0A020 |
— | ||
|
23250
|
23250
23209-20030 Injector Assy, Fuel[07.2003 - 05.2006] 3MZFE..MCV31 (J) |
23209-20030 |
US $225.68 |
||
| replacement | |||||
|
23250
|
23250
23209-20040 Injector Assy, FuelFUEL [07.2003 - 05.2006] 3MZFE..MCV31 (J) |
23209-20040 |
from US $204.71 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[07.2003 - 02.2005] 3MZFE..MCV31 |
90301-07024 |
from US $2.72 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[02.2005 - 05.2006] 3MZFE..MCV31 |
90301-07037 |
from US $2.07 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[07.2003 - 05.2006] 3MZFE..MCV31 |
90480-13005 |
from US $2.36 |
||
|
23270
|
23270
23270-62010
Damper Assy, Fuel Pressure Pulsation
[07.2003 - 10.2004] 3MZFE..MCV31 |
23270-62010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[07.2003 - 10.2004] 3MZFE..MCV31 |
23207-20011 |
from US $56.87 |
||
|
23270
|
23270
23270-62011 Damper Assy, Fuel Pressure Pulsation[10.2004 - 05.2006] 3MZFE..MCV31 |
23270-62011 |
US $71.64 |
||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[10.2004 - 05.2006] 3MZFE..MCV31 |
23207-20011 |
from US $56.87 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[07.2003 - 05.2006] 3MZFE..MCV31 |
23291-41010 |
from US $2.62 |
||
|
23801P
|
23801P
23801-20190
Pipe Sub-Assy, Fuel, No.1
[07.2003 - 05.2006] 3MZFE..MCV31 |
23801-20190 |
— | ||
|
23802C
|
23802C
90401-12015 Bolt, Union(For Fuel Pipe No.2)[07.2003 - 05.2006] 3MZFE..MCV31 |
90401-12015 |
US $5.07 |
||
|
23802D
|
23802D
90430-12026 Gasket[07.2003 - 05.2006] 3MZFE..MCV31 |
90430-12026 |
from US $0.80 |
||
|
23807
|
23807
23814-20020 Pipe Sub-Assy, Fuel Delivery[07.2003 - 01.2004] 3MZFE..MCV31 |
23814-20020 |
US $103.38 |
||
| replacement | |||||
|
23807
|
23807
23814-20021 Pipe Sub-Assy, Fuel Delivery[07.2003 - 01.2004] 3MZFE..MCV31 |
23814-20021 |
US $85.90 |
||
|
23807
|
23807
23814-20021 Pipe Sub-Assy, Fuel Delivery[01.2004 - 05.2006] 3MZFE..MCV31 |
23814-20021 |
US $85.90 |
||
|
23807V
|
23807V
90561-08020 Spacer, No.1(For Delivery Pipe)[07.2003 - 05.2006] 3MZFE..MCV31 |
90561-08020 |
from US $2.66 |
||
|
23815
|
23815
23815-20020
Pipe, Fuel Delivery, No.2
[07.2003 - 01.2004] 3MZFE..MCV31 |
23815-20020 |
— | ||
| replacement | |||||
|
23815
|
23815
23815-20021 Pipe, Fuel Delivery, No.2[07.2003 - 01.2004] 3MZFE..MCV31 |
23815-20021 |
US $101.34 |
||
|
23815
|
23815
23815-20021 Pipe, Fuel Delivery, No.2[01.2004 - 05.2006] 3MZFE..MCV31 |
23815-20021 |
US $101.34 |
||
|
23841B
|
23841B
23841-0P010
Clamp, Fuel Pipe, No.1(For Efi)
[04.2006 - 05.2006] 3MZFE..MCV31 |
23841-0P010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[04.2006 - 05.2006] 3MZFE..MCV31 |
23841-21050 |
US $3.94 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[01.2008 - 12.2008] 3MZFE..MCV31 |
23841-21050 |
US $3.94 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[07.2003 - 03.2006] 3MZFE..MCV31 |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[07.2003 - 03.2006] 3MZFE..MCV31 |
23841-21050 |
US $3.94 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
9008011333
|
9008011333
90080-11333
New Genuine Part
|
90080-11333 |
— | ||
|
9008011455
|
9008011455
90080-11455 New Genuine Part |
90080-11455 |
US $1.02 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9164180650
|
9164180650
91641-80650 New Genuine Part |
91641-80650 |
US $1.46 |
||
|
9213280645
|
9213280645
92132-80645 New Genuine Part |
92132-80645 |
US $1.60 |
||
