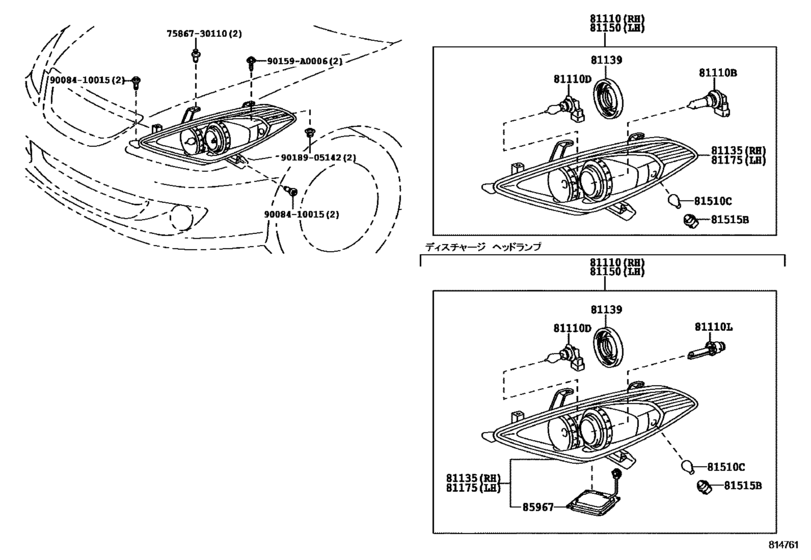

Headlamp ([05.2006 - ] (0605- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-06420
Headlamp Assy, Rh
[05.2006 - 10.2007] ACV30,MCV31 |
81110-06420 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-06422
Headlamp Assy, Rh
[05.2006 - 10.2007] ACV30,MCV31 |
81110-06422 |
— | ||
|
81110
|
81110
81110-06421
Headlamp Assy, Rh
[11.2007 - 03.2008] ACV30,MCV31 |
81110-06421 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-06422
Headlamp Assy, Rh
[11.2007 - 03.2008] ACV30,MCV31 |
81110-06422 |
— | ||
|
81110
|
81110
81110-06422
Headlamp Assy, Rh
[04.2008 - 08.2008] ACV30,MCV31..CP |
81110-06422 |
— | ||
|
81110
|
81110
81110-06430
Headlamp Assy, Rh
[05.2006 - 10.2007] ACV30,MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81110-06430 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-06432
Headlamp Assy, Rh
[05.2006 - 10.2007] ACV30,MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81110-06432 |
— | ||
|
81110
|
81110
81110-06431
Headlamp Assy, Rh
[11.2007 - 03.2008] ACV30,MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81110-06431 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-06432
Headlamp Assy, Rh
[11.2007 - 03.2008] ACV30,MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81110-06432 |
— | ||
|
81110
|
81110
81110-06432
Headlamp Assy, Rh
[04.2008 - 08.2008] ACV30,MCV31..CP..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81110-06432 |
— | ||
|
81110
|
81110
81110-AA080
Headlamp Assy, Rh
[07.2003 - 05.2006] ACV30,MCV31 |
81110-AA080 |
— | ||
|
81110B
|
81110B
90981-AD001 Bulb(For Headlamp, No.1)NO.2) [07.2003 - 05.2006] ACV30,MCV31..5F,5FC 12V 55W |
90981-AD001 |
from US $17.77 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC 12V 65W |
90981-13046 |
from US $15.88 |
||
|
81110D
|
81110D
90981-13066 Bulb(For Headlamp, No.2)[05.2006 - 08.2008] ACV30,MCV31..CP 12V 65W,HALOGEN |
90981-13066 |
from US $25.71 |
||
|
81110L
|
81110L
90981-20013 Bulb, Discharge Headlamp[05.2006 - 08.2008] ACV30,MCV31..CP..SE 45V 35W,SPORT PACKAGE(HID HEAD LAMP); ACV30,MCV31..CP..SLE 45V 35W,HEADLAMP-LOW:HID HI:HALOGEN |
90981-20013 |
US $189.28 |
||
| replacement | |||||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[05.2006 - 08.2008] ACV30,MCV31..CP..SE 45V 35W,SPORT PACKAGE(HID HEAD LAMP); ACV30,MCV31..CP..SLE 45V 35W,HEADLAMP-LOW:HID HI:HALOGEN |
90981-20024 |
from US $164.74 |
||
|
81135
|
81135
81130-06420
Unit Assy, Headlamp, Rh
[05.2006 - 08.2008] ACV30,MCV31..CP |
81130-06420 |
— | ||
|
81135
|
81135
81130-06430
Unit Assy, Headlamp, Rh
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81130-06430 |
— | ||
|
81135
|
81135
81130-AA080
Unit Assy, Headlamp, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
81130-AA080 |
— | ||
| replacement | |||||
|
81135
|
81135
81110-AA080
Headlamp Assy, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
81110-AA080 |
— | ||
|
81139
|
81139
90069-91008
Cover, Headlamp Socket
[05.2006 - 08.2008] ACV30,MCV31..CP |
90069-91008 |
— | ||
|
81150
|
81150
81150-06420
Headlamp Assy, Lh
[05.2006 - 10.2007] ACV30,MCV31 |
81150-06420 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-06422
Headlamp Assy, Lh
[05.2006 - 10.2007] ACV30,MCV31 |
81150-06422 |
— | ||
|
81150
|
81150
81150-06421
Headlamp Assy, Lh
[11.2007 - 03.2008] ACV30,MCV31 |
81150-06421 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-06422
Headlamp Assy, Lh
[11.2007 - 03.2008] ACV30,MCV31 |
81150-06422 |
— | ||
|
81150
|
81150
81150-06422
Headlamp Assy, Lh
[04.2008 - 08.2008] ACV30,MCV31..CP |
81150-06422 |
— | ||
|
81150
|
81150
81150-06430
Headlamp Assy, Lh
[05.2006 - 10.2007] ACV30,MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81150-06430 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-06432
Headlamp Assy, Lh
[05.2006 - 10.2007] ACV30,MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81150-06432 |
— | ||
|
81150
|
81150
81150-06431
Headlamp Assy, Lh
[11.2007 - 03.2008] ACV30,MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81150-06431 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-06432
Headlamp Assy, Lh
[11.2007 - 03.2008] ACV30,MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81150-06432 |
— | ||
|
81150
|
81150
81150-06432
Headlamp Assy, Lh
[04.2008 - 08.2008] ACV30,MCV31..CP..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81150-06432 |
— | ||
|
81150
|
81150
81150-AA080
Headlamp Assy, Lh
[07.2003 - 05.2006] ACV30,MCV31 |
81150-AA080 |
— | ||
|
81175
|
81175
81170-06420
Unit Assy, Headlamp, Lh
[05.2006 - 08.2008] ACV30,MCV31..CP |
81170-06420 |
— | ||
|
81175
|
81175
81170-06430
Unit Assy, Headlamp, Lh
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE HEADLAMP-LOW:HID HI:HALOGEN |
81170-06430 |
— | ||
|
81175
|
81175
81170-AA080
Unit Assy, Headlamp, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
81170-AA080 |
— | ||
| replacement | |||||
|
81175
|
81175
81150-AA080
Headlamp Assy, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
81150-AA080 |
— | ||
|
81510C
|
81510C
90981-AF001 Bulb (For Front Turn Signal Lamp)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC 12V 30/8W |
90981-AF001 |
US $14.19 |
||
|
81510C
|
81510C
90981-AF004 Bulb, Front Turn Signal & Parking Lamp[11.2007 - 08.2008] ACV30,MCV31..CP 12V 30/8W |
90981-AF004 |
US $11.65 |
||
|
81515B
|
81515B
90069-81003 Plug Assy, Front Turn Signal LampFRONT TURN SIGNAL LAMP [05.2006 - 08.2008] ACV30,MCV31..CP |
90069-81003 |
US $10.92 |
||
|
81515B
|
81515B
90075-60060 Plug Assy, Front Turn Signal LampFRONT TURN SIGNAL LAMP [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90075-60060 |
from US $6.14 |
||
|
85967
|
85967
85967-06020
Computer, Light Control
[05.2006 - 08.2008] ACV30,MCV31..CP..SE SPORT PACKAGE(HID HEAD LAMP); ACV30,MCV31..CP..SLE HEADLAMP-LOW:HID HI:HALOGEN |
85967-06020 |
— | ||
|
90159A0006
|
90159A0006
90159-A0006
Bolt, Bumper Pad, No.2
|
90159-A0006 |
— | ||
|
7586730110
|
7586730110
75867-30110 Clip, Rocker Panel Moulding |
75867-30110 |
US $6.27 |
||
|
9008410015
|
9008410015
90084-10015
BOLT
|
90084-10015 |
— | ||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.74 |
||
