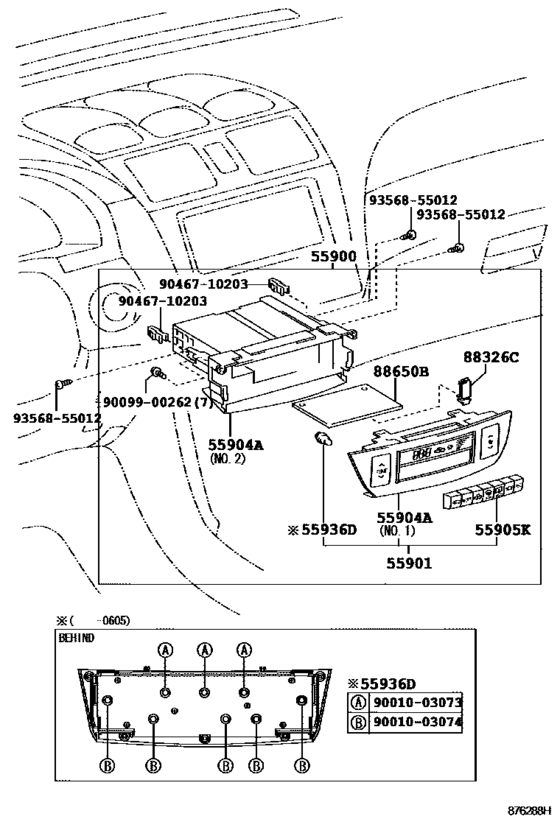

Heating & Air Conditioning - Control & Air Duct ([07.2003 - ] CONTROL PANEL--AUTO (0307- )SLE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55900
|
55900
55900-06251
Control Assy, Air Conditioner
[05.2006 - 08.2008] MCV31..CP..SLE |
55900-06251 |
— | ||
|
55900
|
55900
55900-AA010
Control Assy, Air Conditioner
[07.2003 - 08.2004] ACV30,MCV31..SLE |
55900-AA010 |
— | ||
|
55900
|
55900
55900-AA011
Control Assy, Air Conditioner
[08.2004 - 05.2006] MCV31..SLE |
55900-AA011 |
— | ||
|
55901
|
55901
55901-06020
Base Sub-Assy, Heater Control
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE |
55901-06020 |
— | ||
|
55901
|
55901
55901-AA010
Base Sub-Assy, Heater Control
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE |
55901-AA010 |
— | ||
|
55904A
|
55904A
55904-06030
Housing Sub-Assy, Heater Control
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE NO.1 |
55904-06030 |
— | ||
|
55904A
|
55904A
55904-AA010
Housing Sub-Assy, Heater Control
[04.2004 - 05.2006] MCV31..SLE;ACV30..4FC..SLE NO.1 |
55904-AA010 |
— | ||
|
55904A
|
55904A
55904-AA020
Housing Sub-Assy, Heater Control
[07.2003 - 05.2006] MCV31..SLE;ACV30..4FC..SLE NO.2 |
55904-AA020 |
— | ||
|
55904A
|
55904A
55904-AA030
Housing Sub-Assy, Heater Control
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE NO.2 |
55904-AA030 |
— | ||
|
55905K
|
55905K
55905-06150
Knob, Heater Control, No.4
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE |
55905-06150 |
— | ||
|
55905K
|
55905K
55905-AA010
Knob, Heater Control, No.4
[04.2004 - 05.2006] MCV31..SLE;ACV30..4FC..SLE |
55905-AA010 |
— | ||
|
55936D
|
55936D
90010-03073
Blub, Center Cluster Module Switch
[04.2004 - 05.2006] MCV31..SLE;ACV30..4FC..SLE 12V 1.4W,TYPE A:REFER ILLUST. |
90010-03073 |
— | ||
|
55936D
|
55936D
90010-03074
Blub, Center Cluster Module Switch
[04.2004 - 05.2006] MCV31..SLE;ACV30..4FC..SLE 14V 1.12W,TYPE B:REFER ILLUST. |
90010-03074 |
— | ||
|
88326C
|
88326C
88326-63010
Plate, Cover
[08.2004 - 05.2006] ACV30,MCV31..SLE |
88326-63010 |
— | ||
|
88650B
|
88650B
88650-06270
Amplifier Assy, Airconditioner
[05.2006 - 08.2008] MCV31..CP..SLE |
88650-06270 |
— | ||
|
88650B
|
88650B
88650-AA010
Amplifier Assy, Airconditioner
[07.2003 - 08.2004] ACV30,MCV31..SLE |
88650-AA010 |
— | ||
|
88650B
|
88650B
88650-AA011
Amplifier Assy, Airconditioner
[08.2004 - 05.2006] MCV31..SLE |
88650-AA011 |
— | ||
|
9009900262
|
9009900262
90099-00262
SCREW TAPPING
|
90099-00262 |
— | ||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
