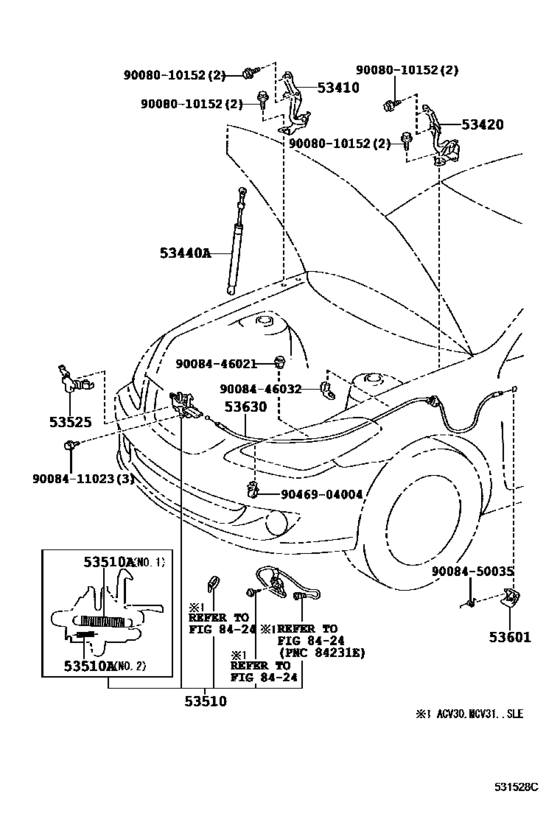

Hood Lock & Hinge ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-AA040
Hinge Assy, Hood, Rh
[07.2003 - 05.2006] ACV30,MCV31 |
53410-AA040 |
— | ||
|
53420
|
53420
53420-AA040
Hinge Assy, Hood, Lh
[07.2003 - 05.2006] ACV30,MCV31 |
53420-AA040 |
— | ||
|
53440A
|
53440A
53440-AA030 Support Assy, Hood, RhHOOD, RH [07.2003 - 05.2006] ACV30,MCV31 |
53440-AA030 |
US $151.42 |
||
|
53510
|
53510
53510-AA061
Lock Assy, Hood
[07.2003 - 05.2006] ACV30,MCV31..SLE |
53510-AA061 |
— | ||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[07.2003 - 05.2006] ACV30,MCV31 WD=0.9,CW=21,NO.2 |
90506-09055 |
from US $1.48 |
||
|
53510A
|
53510A
90506-18080 Spring, Tension(For Hood Lock)[05.2006 - 08.2008] ACV30,MCV31..CP WD=1.8,CW=19,NO.1 |
90506-18080 |
US $3.32 |
||
|
53510A
|
53510A
90506-20066 Spring, Tension(For Hood Lock)[07.2003 - 05.2006] ACV30,MCV31 WD=2.0,CW=17,NO.1 |
90506-20066 |
US $3.49 |
||
|
53525
|
53525
53525-AA030
Protector, Hood Lock Release Lever
[07.2003 - 05.2006] ACV30,MCV31 |
53525-AA030 |
— | ||
|
53601
|
53601
53611-AA010-A0
Lever Sub-Assy, Hood Lock Control
[07.2003 - 05.2006] ACV30,MCV31 IVORY,TRIM0# |
53611-AA010-A0 |
— | ||
|
53601
|
53601
53611-AA010-B2
Lever Sub-Assy, Hood Lock Control
[07.2003 - 05.2006] ACV30,MCV31..SE DK. STONE,TRIM10; ACV30,MCV31..SLE DK. STONE,TRIM1# |
53611-AA010-B2 |
— | ||
|
53630
|
53630
53630-AA030 Cable Assy, Hood Lock ControlHOOD LOCK CONTROL [07.2003 - 05.2006] ACV30,MCV31..CP |
53630-AA030 |
US $28.54 |
||
|
9008010152
|
9008010152
90080-10152 Bolt |
90080-10152 |
US $0.61 |
||
|
9008411023
|
9008411023
90084-11023 New Genuine Part |
90084-11023 |
US $0.73 |
||
|
9008446021
|
9008446021
90084-46021
New Genuine Part
|
90084-46021 |
— | ||
|
9008446032
|
9008446032
90084-46032
New Genuine Part
|
90084-46032 |
— | ||
|
9008450035
|
9008450035
90084-50035
New Genuine Part
|
90084-50035 |
— | ||
|
9046904004
|
9046904004
90469-04004 Clamp (For Fuel Lid Lock Control Cable) |
90469-04004 |
US $1.25 |
