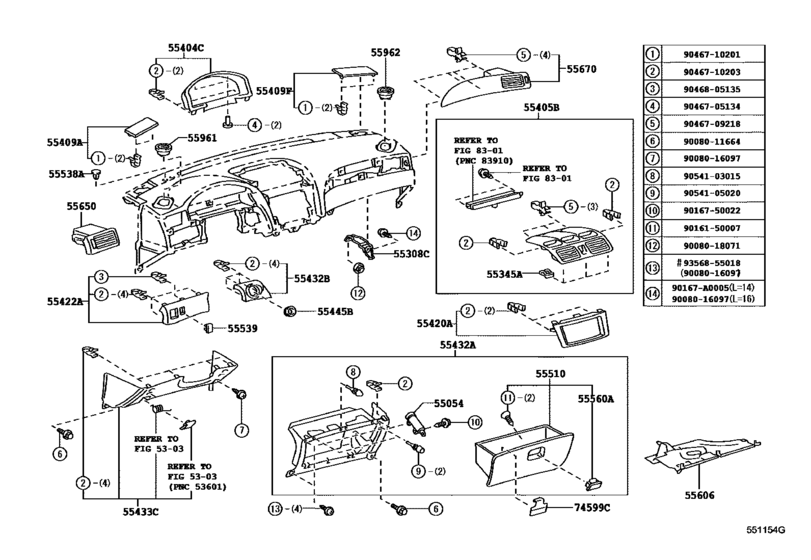

Instrument Panel & Glove Compartment ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-33060 Stopper Sub-Assy, Glove Compartment Door[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55054-33060 |
from US $14.88 |
||
|
55308C
|
55308C
55308-AA030
Bracket Sub-Assy, Instrument Panel, Center
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55308-AA030 |
— | ||
|
55345A
|
55345A
55345-AA010
Clip, Instrument Panel, No.1
[07.2003 - 07.2004] ACV30,MCV31..CP |
55345-AA010 |
— | ||
|
55404C
|
55404C
55404-AA010
Panel Sub-Assy, Instrument Cluster Finish, No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55404-AA010 |
— | ||
|
55405B
|
55405B
55405-AA080
Panel Sub-Assy, Instrument Cluster Finish, Center
[07.2003 - 08.2003] ACV30,MCV31..SLE; ACV30,MCV31..SE SPORT PACKAGE |
55405-AA080 |
— | ||
| replacement | |||||
|
55405B
|
55405B
55405-AA082
Panel Sub-Assy, Instrument Cluster Finish, Center
[07.2003 - 08.2003] ACV30,MCV31..SLE; ACV30,MCV31..SE SPORT PACKAGE |
55405-AA082 |
— | ||
|
55405B
|
55405B
55405-AA081
Panel Sub-Assy, Instrument Cluster Finish, Center
[08.2003 - 07.2004] ACV30,MCV31..CP..SLE; ACV30,MCV31..CP..SE SPORT PACKAGE |
55405-AA081 |
— | ||
| replacement | |||||
|
55405B
|
55405B
55405-AA082
Panel Sub-Assy, Instrument Cluster Finish, Center
[08.2003 - 07.2004] ACV30,MCV31..CP..SLE; ACV30,MCV31..CP..SE SPORT PACKAGE |
55405-AA082 |
— | ||
|
55405B
|
55405B
55405-AA082
Panel Sub-Assy, Instrument Cluster Finish, Center
[08.2004 - 05.2006] ACV30,MCV31..CP..5FC..SLE; ACV30,MCV31..CP..(5F,5FC)..SE SPORT PACKAGE |
55405-AA082 |
— | ||
|
55405B
|
55405B
55405-AA083
Panel Sub-Assy, Instrument Cluster Finish, Center
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE; ACV30,MCV31..CP..SE SPORT PACKAGE(HID HEAD LAMP) |
55405-AA083 |
— | ||
|
55409A
|
55409A
55472-AA010-B1
Panel Sub-Assy, Instrument Panel Speaker
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK.GRAY,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK.GRAY,TRIM10,11 |
55472-AA010-B1 |
— | ||
|
55409A
|
55409A
55472-AA010-E1
Panel Sub-Assy, Instrument Panel Speaker
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC ORCHID BROWN,TRIM0# |
55472-AA010-E1 |
— | ||
|
55409F
|
55409F
55473-AA010-B1
Panel Sub-Assy, Instrument Panel Speaker, No.2
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK.GRAY,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK.GRAY,TRIM10,11 |
55473-AA010-B1 |
— | ||
|
55409F
|
55409F
55473-AA010-E1
Panel Sub-Assy, Instrument Panel Speaker, No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC ORCHID BROWN,TRIM0# |
55473-AA010-E1 |
— | ||
|
55420A
|
55420A
55420-AA010
Panel Assy, Instrument Cluster Finish, Center
[07.2003 - 05.2006] MCV31..CP..SLE AUDIO-MULTI DISPLAY |
55420-AA010 |
— | ||
|
55420A
|
55420A
55420-AA011
Panel Assy, Instrument Cluster Finish, Center
[05.2006 - 08.2008] MCV31..CP..SLE AUDIO-NAVIGATION, CD, PREMIUM W/6SPEAKER |
55420-AA011 |
— | ||
|
55422A
|
55422A
55422-AA010-A0
Panel, Instrument Cluster Finish, Lower
[07.2003 - 08.2005] ACV30,MCV31..CP IVORY,TRIM0# |
55422-AA010-A0 |
— | ||
| replacement | |||||
|
55422A
|
55422A
55422-AA011-A0
Panel, Instrument Cluster Finish, Lower
[07.2003 - 08.2005] ACV30,MCV31..CP IVORY,TRIM0# |
55422-AA011-A0 |
— | ||
|
55422A
|
55422A
55422-AA010-B0
Panel, Instrument Cluster Finish, Lower
[07.2003 - 08.2005] ACV30,MCV31..CP..SE DK. STONE,TRIM10; ACV30,MCV31..CP..SLE DK. STONE,TRIM1# |
55422-AA010-B0 |
— | ||
| replacement | |||||
|
55422A
|
55422A
55422-AA011-B0
Panel, Instrument Cluster Finish, Lower
[07.2003 - 08.2005] ACV30,MCV31..CP..SE DK. STONE,TRIM10; ACV30,MCV31..CP..SLE DK. STONE,TRIM1# |
55422-AA011-B0 |
— | ||
|
55422A
|
55422A
55422-AA011-A0
Panel, Instrument Cluster Finish, Lower
[09.2005 - 05.2006] ACV30,MCV31..CP IVORY,TRIM0# |
55422-AA011-A0 |
— | ||
|
55422A
|
55422A
55422-AA011-B0
Panel, Instrument Cluster Finish, Lower
[09.2005 - 05.2006] ACV30,MCV31..CP..SE DK. STONE,TRIM10; ACV30,MCV31..CP..SLE DK. STONE,TRIM1# |
55422-AA011-B0 |
— | ||
|
55432A
|
55432A
55303-AA040-A0
Panel, Instrument Panel Finish, Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
55303-AA040-A0 |
— | ||
|
55432A
|
55432A
55303-AA040-B0
Panel, Instrument Panel Finish, Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
55303-AA040-B0 |
— | ||
|
55432B
|
55432B
55480-AA020-A0
Panel, Instrument Panel Finish, Lower
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
55480-AA020-A0 |
— | ||
|
55432B
|
55432B
55480-AA020-B0
Panel, Instrument Panel Finish, Lower
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
55480-AA020-B0 |
— | ||
|
55433C
|
55433C
55302-AA030-A0
Panel, Instrument Panel Finish, Lower Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
55302-AA030-A0 |
— | ||
|
55433C
|
55433C
55302-AA030-B0
Panel, Instrument Panel Finish, Lower Lh
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
55302-AA030-B0 |
— | ||
|
55445B
|
55445B
55445-51020-A0 Plate, Instrument Panel Finish[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
55445-51020-A0 |
US $3.20 |
||
|
55445B
|
55445B
55445-51020-B4 Plate, Instrument Panel FinishINSTRUMENT PANEL FINISH [07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
55445-51020-B4 |
US $3.93 |
||
| replacement | |||||
|
55445B
|
55445B
55445-51020-C0 Plate, Instrument Panel Finish[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
55445-51020-C0 |
US $3.14 |
||
|
55510
|
55510
55501-AA020-A0
Door Assy, Glove Compartment
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
55501-AA020-A0 |
— | ||
|
55510
|
55510
55501-AA020-B0
Door Assy, Glove Compartment
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
55501-AA020-B0 |
— | ||
|
55539
|
55539
55539-48010 Cover, Spare Switch Hole[09.2006 - 08.2008] ACV30,MCV31..CP; MCV31..CP VEHICLE STABILITY CONT-WITH |
55539-48010 |
US $5.38 |
||
|
55539
|
55539
55539-AE010-C0
Cover, Spare Switch Hole
[08.2006 - 09.2006] MCV31 VEHICLE STABILITY CONT-WITH,BLACK |
55539-AE010-C0 |
— | ||
|
55560A
|
55560A
55506-33030-A0 Handle, Glove Compartment Door Lock[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
55506-33030-A0 |
from US $17.42 |
||
|
55560A
|
55560A
55506-33030-B4
Lock Assy, Glove Compartment Door
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
55506-33030-B4 |
— | ||
|
55606
|
55606
55607-AA020
Cover Sub-Assy, Instrument Panel Under, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55607-AA020 |
— | ||
|
55650
|
55650
55650-AA050
Register Assy, Instrument Panel, No.1
[07.2003 - 03.2005] ACV30,MCV31..SLE |
55650-AA050 |
— | ||
|
55650
|
55650
55650-AA051
Register Assy, Instrument Panel, No.1
[03.2005 - 05.2006] MCV31..CP..SLE; ACV30..SLE;MCV31..CVT..SLE |
55650-AA051 |
— | ||
|
55650
|
55650
55650-AA052
Register Assy, Instrument Panel, No.1
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE |
55650-AA052 |
— | ||
|
55670
|
55670
55670-AA060
Register Assy, Instrument Panel, No.3
[07.2003 - 03.2005] ACV30,MCV31..CP..SLE |
55670-AA060 |
— | ||
|
55670
|
55670
55670-AA061
Register Assy, Instrument Panel, No.3
[03.2005 - 05.2006] MCV31..CP..SLE; ACV30..SLE |
55670-AA061 |
— | ||
|
55670
|
55670
55670-AA062
Register Assy, Instrument Panel, No.3
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE |
55670-AA062 |
— | ||
|
55961
|
55961
55961-AA010-B0
Nozzle, Side Defroster, No.1
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK.GRAY,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK.GRAY,TRIM10,11 |
55961-AA010-B0 |
— | ||
|
55961
|
55961
55961-AA010-E0
Nozzle, Side Defroster, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC ORCHID BROWN,TRIM0# |
55961-AA010-E0 |
— | ||
|
55962
|
55962
55962-AA020-B0
Nozzle, Side Defroster, No.2
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK.GRAY,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK.GRAY,TRIM10,11 |
55962-AA020-B0 |
— | ||
|
55962
|
55962
55962-AA020-E0
Nozzle, Side Defroster, No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC ORCHID BROWN,TRIM0# |
55962-AA020-E0 |
— | ||
|
74599C
|
74599C
74599-06010
Label, Driver & Passenger Air Bag Caution
[07.2003 - 03.2005] ACV30,MCV31 |
74599-06010 |
— | ||
|
74599C
|
74599C
74599-0E020 Label, Driver & Passenger Air Bag Caution[03.2005 - 05.2006] MCV31;ACV30..5F |
74599-0E020 |
US $5.73 |
||
|
90167A0005
|
90167A0005
90167-A0005 New Genuine Part |
90167-A0005 |
US $0.73 |
||
|
9008011664
|
9008011664
90080-11664
New Genuine Part
|
90080-11664 |
— | ||
|
9008016097
|
9008016097
90080-16097 New Genuine Part |
90080-16097 |
US $0.73 |
||
|
9008018071
|
9008018071
90080-18071
New Genuine Part
|
90080-18071 |
— | ||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9016750022
|
9016750022
90167-50022 SCREW |
90167-50022 |
US $1.25 |
||
|
9046705134
|
9046705134
90467-05134 CLIP |
90467-05134 |
US $2.33 |
||
|
9046709218
|
9046709218
90467-09218 CLIP |
90467-09218 |
from US $1.16 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.87 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.91 |
||
|
9054103015
|
9054103015
90541-03015 Cushion, Instrument Panel Box |
90541-03015 |
from US $1.52 |
||
|
9054105020
|
9054105020
90541-05020 Cushion(For Glove Compartment) |
90541-05020 |
from US $1.38 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
from US $0.59 |
||
