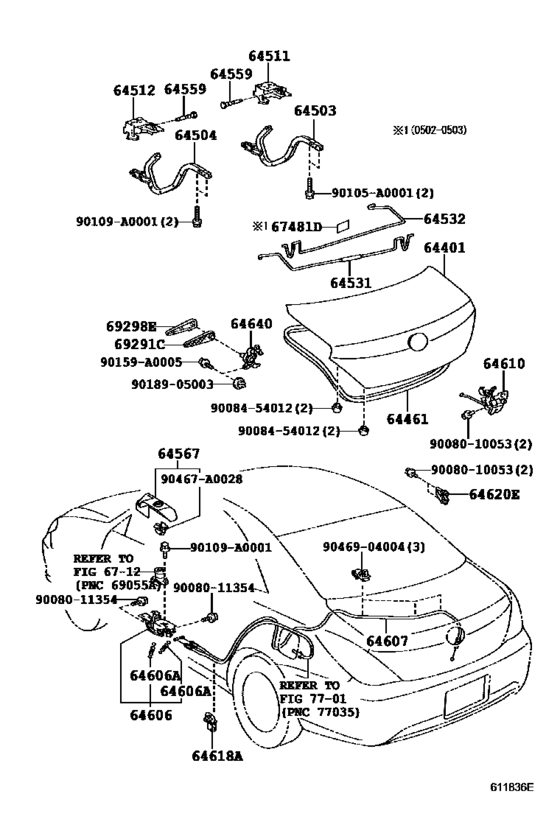

Luggage Compartment Door & Lock ([07.2003 - ] (0307- )CP) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64401
|
64401
64401-AA100
Panel Sub-Assy, Luggage Compartment Door
[07.2003 - 05.2006] ACV30;MCV31..SE;MCV31..CP..SLE |
64401-AA100 |
— | ||
| replacement | |||||
|
64401
|
64401
64401-AA101
Panel Sub-Assy, Luggage Compartment Door
[07.2003 - 05.2006] ACV30;MCV31..SE;MCV31..CP..SLE |
64401-AA101 |
— | ||
|
64401
|
64401
64401-AA110
Panel Sub-Assy, Luggage Compartment Door
[07.2003 - 05.2006] ACV30;MCV31..SE;MCV31..CP..SLE REAR SPOILER-WITH |
64401-AA110 |
— | ||
| replacement | |||||
|
64401
|
64401
64401-AA111
Panel Sub-Assy, Luggage Compartment Door
[07.2003 - 05.2006] ACV30;MCV31..SE;MCV31..CP..SLE REAR SPOILER-WITH |
64401-AA111 |
— | ||
|
64401
|
64401
64401-AA111
Panel Sub-Assy, Luggage Compartment Door
[05.2006 - 12.2008] ACV30,MCV31 |
64401-AA111 |
— | ||
|
64461
|
64461
64461-AA040
Weatherstrip, Luggage Compartment Door
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
64461-AA040 |
— | ||
|
64503
|
64503
64503-AA050
Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
64503-AA050 |
— | ||
|
64504
|
64504
64503-AA050
Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
64503-AA050 |
— | ||
|
64511
|
64511
64511-AA030
Support, Luggage Compartment Door Hinge, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP |
64511-AA030 |
— | ||
|
64512
|
64512
64512-AA030
Support, Luggage Compartment Door Hinge, Lh
[07.2003 - 05.2006] ACV30,MCV31..CP |
64512-AA030 |
— | ||
|
64531
|
64531
64531-AA080
Bar, Luggage Door Hinge Torsion, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP |
64531-AA080 |
— | ||
|
64531
|
64531
64531-AA090
Bar, Luggage Door Hinge Torsion, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP REAR SPOILER-WITH |
64531-AA090 |
— | ||
|
64532
|
64532
64532-AA080
Bar, Luggage Door Hinge Torsion, Lh
[07.2003 - 05.2006] ACV30,MCV31..CP |
64532-AA080 |
— | ||
|
64532
|
64532
64532-AA090
Bar, Luggage Door Hinge Torsion, Lh
[07.2003 - 05.2006] ACV30,MCV31..CP REAR SPOILER-WITH |
64532-AA090 |
— | ||
|
64559
|
64559
64559-AC020 Pin, Luggage Door Hinge[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
64559-AC020 |
US $4.08 |
||
|
64567
|
64567
64657-AA010-A0
Bezel, Luggage Door Lock Open
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
64657-AA010-A0 |
— | ||
|
64567
|
64567
64657-AA010-B0
Bezel, Luggage Door Lock Open
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
64657-AA010-B0 |
— | ||
|
64606
|
64606
64606-AA030-A0
Lever Sub-Assy, Luggage Door Lock Open
[07.2003 - 05.2006] ACV30,MCV31 IVORY,TRIM0# |
64606-AA030-A0 |
— | ||
|
64606
|
64606
64606-AA030-B0
Lever Sub-Assy, Luggage Door Lock Open
[07.2003 - 05.2006] ACV30,MCV31..SE DK. STONE,TRIM10; ACV30,MCV31..SLE DK. STONE,TRIM1# |
64606-AA030-B0 |
— | ||
|
64606A
|
64606A
90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90506-09004 |
US $2.62 |
||
|
64607
|
64607
64607-AA050
Cable Sub-Assy, Luggage Door Lock Control
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
64607-AA050 |
— | ||
|
64610
|
64610
64600-AA010
Lock Assy, Luggage Compartment Door
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
64600-AA010 |
— | ||
|
64618A
|
64618A
64618-AA010
Clamp, Luggage Lock Control Cable
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
64618-AA010 |
— | ||
|
64620E
|
64620E
64621-AA010
Striker Assy, Luggage Compartment Door
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
64621-AA010 |
— | ||
|
64640
|
64640
64640-AA020
Opener Assy, Luggage Door Lock
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
64640-AA020 |
— | ||
|
67481D
|
67481D
67481-AA020
Seal, Front Door Front Lower Frame, Rh
[02.2005 - 03.2005] ACV30,MCV31..CP |
67481-AA020 |
— | ||
|
69291C
|
69291C
69291-AA020
Handle, Luggage Compartment Door, Inside
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
69291-AA020 |
— | ||
|
69298E
|
69298E
69298-AA020
Cover, Luggage Component Door Inside Handle
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
69298-AA020 |
— | ||
|
90105A0001
|
90105A0001
90105-A0001
New Genuine Part
|
90105-A0001 |
— | ||
|
90109A0001
|
90109A0001
90109-A0001
New Genuine Part
|
90109-A0001 |
— | ||
|
90159A0005
|
90159A0005
90159-A0005
New Genuine Part
|
90159-A0005 |
— | ||
|
90467A0028
|
90467A0028
90467-A0028
New Genuine Part
|
90467-A0028 |
— | ||
|
9008010053
|
9008010053
90080-10053 New Genuine Part |
90080-10053 |
US $0.73 |
||
|
9008011354
|
9008011354
90080-11354 New Genuine Part |
90080-11354 |
US $0.52 |
||
|
9008454012
|
9008454012
90084-54012
Cushion, Front Door Panel
|
90084-54012 |
— | ||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.10 |
||
|
9046904004
|
9046904004
90469-04004 Clamp (For Fuel Lid Lock Control Cable) |
90469-04004 |
US $1.25 |
||
