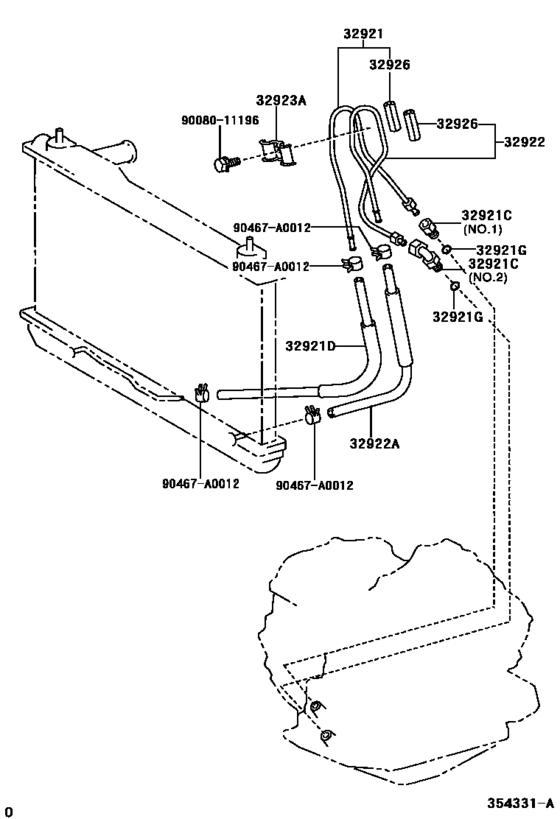

Oil Cooler & Tube (Atm) ([07.2003 - ] U151E (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-06170
Tube, Oil Cooler Inlet, No.1
[07.2003 - 05.2006] MCV31 |
32921-06170 |
— | ||
|
32921C
|
32921C
90404-16031 Union(For Transaxle Housing)[07.2003 - 05.2006] ACV30,MCV31..5FC NO.1 |
90404-16031 |
US $6.09 |
||
|
32921C
|
32921C
90407-16010 Union(For Oil Cooler Tube)[07.2003 - 05.2006] ACV30,MCV31..5FC NO.2 |
90407-16010 |
US $9.50 |
||
|
32921D
|
32921D
32941-33050 Hose(For Oil Cooler Inlet)[07.2003 - 05.2006] MCV31 |
32941-33050 |
US $16.89 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[07.2003 - 05.2006] ACV30,MCV31..4FC,5FC |
90301-10189 |
from US $2.57 |
||
|
32921G
|
32921G
90301-A0016
Ring, O(For Oil Cooler Tube Union)
[05.2006 - 08.2008] MCV31..CP (L) |
90301-A0016 |
— | ||
|
32922
|
32922
32922-06150
Tube, Oil Cooler Outlet, No.1
[07.2003 - 05.2006] MCV31 |
32922-06150 |
— | ||
|
32922A
|
32922A
32942-33030 Hose(For Oil Cooler Outlet)[07.2003 - 05.2006] MCV31 |
32942-33030 |
US $24.29 |
||
|
32923A
|
32923A
90462-12074 Clamp, Automatic Transmission Oil Cooler Tube[07.2003 - 05.2006] ACV30,MCV31..5FC |
90462-12074 |
US $3.14 |
||
|
32926
|
32926
32926-04010
Cushion, Oil Cooler Tube(Atm)
[07.2003 - 05.2006] ACV30,MCV31..5FC L=36,ID=10 |
32926-04010 |
— | ||
|
90467A0012
|
90467A0012
90467-A0012 Clip(For Water Inlet Hose) |
90467-A0012 |
from US $1.84 |
||
|
9008011196
|
9008011196
90080-11196
New Genuine Part
|
90080-11196 |
— |
