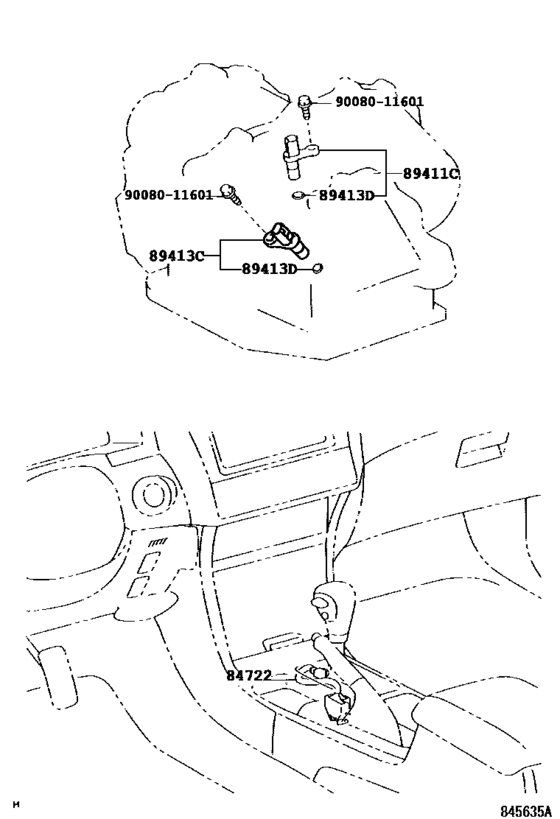

Overdrive & Electronic Controlled Transmission ([07.2003 - ] (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84722
|
84722
84722-20240
Switch, Transmission Control
[07.2003 - 05.2006] ACV30,MCV31..5FC |
84722-20240 |
— | ||
|
89411C
|
89411C
89413-08010
Sensor, Speed
[07.2003 - 07.2004] MCV31 |
89413-08010 |
— | ||
| replacement | |||||
|
89411C
|
89411C
89413-48010 Sensor, Speed[07.2003 - 07.2004] MCV31 |
89413-48010 |
from US $96.10 |
||
|
89411C
|
89411C
89413-48010 Sensor, Speed[07.2004 - 05.2006] MCV31 (J) |
89413-48010 |
from US $96.10 |
||
|
89413C
|
89413C
89413-08020
Sensor, Speed
[07.2003 - 07.2004] MCV31 |
89413-08020 |
— | ||
|
89413C
|
89413C
89413-24010 Sensor, Speed[07.2004 - 05.2006] MCV31 (J) |
89413-24010 |
from US $86.89 |
||
|
89413D
|
89413D
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[07.2004 - 05.2006] MCV31 |
90301-11008 |
from US $0.87 |
||
|
9008011601
|
9008011601
90080-11601
New Genuine Part
|
90080-11601 |
— | ||
