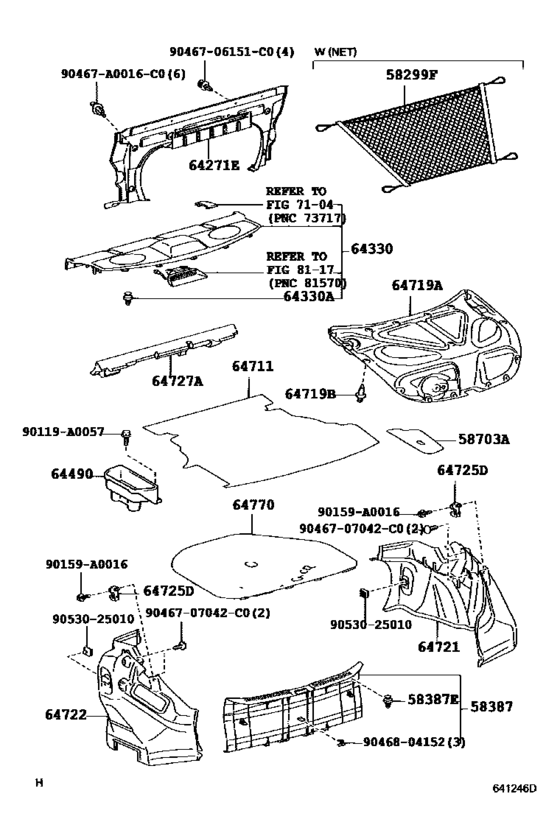

Package Tray Panel & Luggage Compartment Mat ([07.2003 - 08.2008] (0307-0808)CP) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58299F
|
58299F
58299-AA020-C0
Net, Baggage Holder
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE BLACK,TRIM0#,1# |
58299-AA020-C0 |
— | ||
|
58387
|
58387
58387-AA030-C0
Plate, Rear Floor Finish
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE BLACK,TRIM0#,1#; ACV30,MCV31..(5F,5FC)..SE BLACK,TRIM0#,10,11 |
58387-AA030-C0 |
— | ||
|
58387E
|
58387E
90467-A0006 Clip(For Front Fender Seal)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90467-A0006 |
US $1.43 |
||
|
58703A
|
58703A
58703-06040
Cover Sub-Assy, Luggage Compartment Side, Rh
[07.2003 - 05.2006] ACV30,MCV31 |
58703-06040 |
— | ||
|
64271E
|
64271E
64271-AA040-C0
Panel, Room Partition
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC)..SE BLACK,TRIM0#,10,11; ACV30,MCV31..CP..5FC..SLE BLACK,TRIM0#,1# |
64271-AA040-C0 |
— | ||
|
64330
|
64330
64330-AA150-A1
Panel Assy, Package Tray Trim
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) IVORY,TRIM0# |
64330-AA150-A1 |
— | ||
|
64330
|
64330
64330-AA150-B1
Panel Assy, Package Tray Trim
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC)..SE DARK STONE,TRIM10; ACV30,MCV31..CP..5FC..SLE DARK STONE,TRIM1# |
64330-AA150-B1 |
— | ||
|
64330A
|
64330A
90467-A0006 Clip(For Front Fender Seal)[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
90467-A0006 |
US $1.43 |
||
|
64490
|
64490
64490-AA010
Tray Assy, Luggage Compartment Side
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
64490-AA010 |
— | ||
|
64711
|
64711
64711-AA030-C0
Mat, Luggage Compartment Floor
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC)..SE BLACK,TRIM0#,10,11; ACV30,MCV31..CP..5FC..SLE BLACK,TRIM0#,1# |
64711-AA030-C0 |
— | ||
|
64719A
|
64719A
64719-AA070-C0
Cover, Luggage Compartment Door
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC)..SE BLACK,TRIM0#,10,11; ACV30,MCV31..CP..5FC..SLE BLACK,TRIM0#,1# |
64719-AA070-C0 |
— | ||
|
64719B
|
64719B
90467-07138
Clip(For Rear Floor Finish Plate)
[07.2003 - 09.2003] ACV30,MCV31 |
90467-07138 |
— | ||
| replacement | |||||
|
64719B
|
64719B
90467-07138-C0 Clip[07.2003 - 09.2003] ACV30,MCV31 |
90467-07138-C0 |
from US $1.31 |
||
|
64719B
|
64719B
90467-07201 Clamp(For Cool Air Intake)[09.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
90467-07201 |
from US $0.93 |
||
|
64721
|
64721
64721-AA040-C0
Cover, Luggage Compartment Trim, Inner Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC)..SE BLACK,TRIM0#,10,11; ACV30,MCV31..CP..5FC..SLE BLACK,TRIM0#,1# |
64721-AA040-C0 |
— | ||
|
64722
|
64722
64722-AA050-C0
Cover, Luggage Compartment Trim, Inner Lh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC)..SE BLACK,TRIM0#,10,11; ACV30,MCV31..CP..5FC..SLE BLACK,TRIM0#,1# |
64722-AA050-C0 |
— | ||
|
64725D
|
64725D
64725-AC010-C0 Hook, Luggage Compartment Trim, No.1[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE BLACK,TRIM0#,1#; ACV30,MCV31..(5F,5FC)..SE BLACK,TRIM0#,10,11 |
64725-AC010-C0 |
US $20.53 |
||
|
64727A
|
64727A
64727-AA011
Pad, Luggage Compartment Trim, Inner
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
64727-AA011 |
— | ||
|
64770
|
64770
64770-06130
Cover Assy, Spare Wheel
[07.2003 - 04.2005] ACV30,MCV31..SE TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM&SPARE TIRE-WITH(ALMINUM); ACV30,MCV31..CP..SE TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL&SPARE TIRE-WITH(ALMINUM); MCV31..SLE SPARE TIRE-WITH(ALMINUM) |
64770-06130 |
— | ||
| replacement | |||||
|
64770
|
64770
64770-06132
Cover Assy, Spare Wheel
[07.2003 - 04.2005] ACV30,MCV31..SE TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM&SPARE TIRE-WITH(ALMINUM); ACV30,MCV31..CP..SE TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL&SPARE TIRE-WITH(ALMINUM); MCV31..SLE SPARE TIRE-WITH(ALMINUM) |
64770-06132 |
— | ||
|
64770
|
64770
64770-06131
Cover Assy, Spare Wheel
[05.2005 - 06.2005] ACV30,MCV31..SE TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM&SPARE TIRE-WITH(ALMINUM); ACV30,MCV31..CP..SE TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL&SPARE TIRE-WITH(ALMINUM); MCV31..SLE SPARE TIRE-WITH(ALMINUM) |
64770-06131 |
— | ||
| replacement | |||||
|
64770
|
64770
64770-06132
Cover Assy, Spare Wheel
[05.2005 - 06.2005] ACV30,MCV31..SE TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM&SPARE TIRE-WITH(ALMINUM); ACV30,MCV31..CP..SE TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL&SPARE TIRE-WITH(ALMINUM); MCV31..SLE SPARE TIRE-WITH(ALMINUM) |
64770-06132 |
— | ||
|
64770
|
64770
64770-06132
Cover Assy, Spare Wheel
[07.2005 - 05.2006] ACV30,MCV31..SE TIRE & DISC WHEEL-215/55R17AS93V 7JJ ALMINUM&SPARE TIRE-WITH(ALMINUM); ACV30,MCV31..CP..SE TIRE & DISC WHEEL-215/55R17SM93V 7JJ AL&SPARE TIRE-WITH(ALMINUM); MCV31..SLE SPARE TIRE-WITH(ALMINUM) |
64770-06132 |
— | ||
|
64770
|
64770
64770-07010 Cover Assy, Spare Wheel[07.2003 - 08.2004] ACV30,MCV31 |
64770-07010 |
US $74.26 |
||
| replacement | |||||
|
64770
|
64770
64770-07014 Cover Assy, Spare Wheel[07.2003 - 08.2004] ACV30,MCV31 |
64770-07014 |
US $74.26 |
||
|
64770
|
64770
64770-07011
Cover Assy, Spare Wheel
[09.2004 - 10.2004] ACV30,MCV31 |
64770-07011 |
— | ||
| replacement | |||||
|
64770
|
64770
64770-07014 Cover Assy, Spare Wheel[09.2004 - 10.2004] ACV30,MCV31 |
64770-07014 |
US $74.26 |
||
|
64770
|
64770
64770-07012 Cover Assy, Spare Wheel[10.2004 - 04.2005] ACV30,MCV31 |
64770-07012 |
US $74.26 |
||
| replacement | |||||
|
64770
|
64770
64770-07014 Cover Assy, Spare Wheel[10.2004 - 04.2005] ACV30,MCV31 |
64770-07014 |
US $74.26 |
||
|
64770
|
64770
64770-07013 Cover Assy, Spare Wheel[05.2005 - 08.2005] ACV30,MCV31 |
64770-07013 |
US $74.26 |
||
| replacement | |||||
|
64770
|
64770
64770-07014 Cover Assy, Spare Wheel[05.2005 - 08.2005] ACV30,MCV31 |
64770-07014 |
US $74.26 |
||
|
64770
|
64770
64770-07014 Cover Assy, Spare Wheel[09.2005 - 05.2006] ACV30,MCV31 |
64770-07014 |
US $74.26 |
||
|
90119A0057
|
90119A0057
90119-A0057
New Genuine Part
|
90119-A0057 |
— | ||
|
90159A0016
|
90159A0016
90159-A0016
New Genuine Part
|
90159-A0016 |
— | ||
|
90467A0016C0
|
90467A0016C0
90467-A0016-C0
Clip, Radiator Grille
|
90467-A0016-C0 |
— | ||
|
9046706151C0
|
9046706151C0
90467-06151-C0 Clip(For Front Floor Carpet) |
90467-06151-C0 |
US $1.60 |
||
| replacement | |||||
|
9046706151C0
|
9046706151C0
90467-06153 Clip(For Rear Seat) |
90467-06153 |
US $1.97 |
||
|
9046707042C0
|
9046707042C0
90467-07042-C0 Clip |
90467-07042-C0 |
US $1.25 |
||
| replacement | |||||
|
9046707042C0
|
9046707042C0
90467-06175 Clip(For Luggage Compartment Door) |
90467-06175 |
US $3.94 |
||
|
9046804152
|
9046804152
90468-04152 DASH BOARD CLIPS |
90468-04152 |
US $2.87 |
||
|
9053025010
|
9053025010
90530-25010 Fastener, Hook |
90530-25010 |
from US $1.48 |
||
