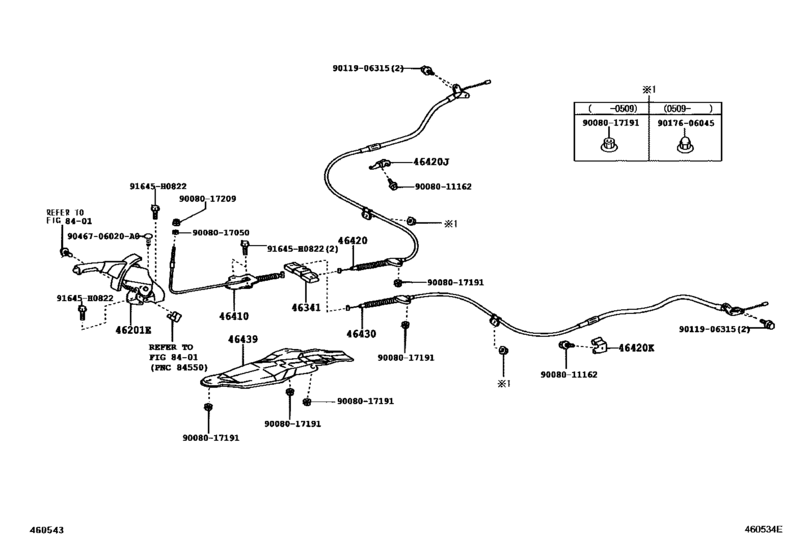

Parking Brake & Cable ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-06111-A0
Lever Sub-Assy, Parking Brake
[07.2003 - 02.2004] ACV30,MCV31..SLE IVORY,TRIM0# |
46201-06111-A0 |
— | ||
|
46201E
|
46201E
46201-06111-B0
Lever Sub-Assy, Parking Brake
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1# |
46201-06111-B0 |
— | ||
|
46201E
|
46201E
46201-06111-E0
Lever Sub-Assy, Parking Brake
[02.2004 - 05.2006] MCV31..SLE ORCHID BROWN,TRIM0# |
46201-06111-E0 |
— | ||
|
46341
|
46341
46341-20070 Equalizer, Parking Brake[07.2003 - 05.2006] ACV30,MCV31 |
46341-20070 |
from US $5.02 |
||
|
46410
|
46410
46410-06030
Cable Assy, Parking Brake, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
46410-06030 |
— | ||
|
46420
|
46420
46420-33100 Cable Assy, Parking Brake, No.2[07.2003 - 05.2006] ACV30,MCV31 |
46420-33100 |
from US $60.71 |
||
|
46420J
|
46420J
90949-01C61 Clamp, No.1(For Parking Brake Cable)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90949-01C61 |
US $3.79 |
||
|
46420K
|
46420K
90949-01C62 Clamp, No.2(For Parking Brake Cable)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90949-01C62 |
US $3.79 |
||
|
46430
|
46430
46430-33100 Cable Assy, Parking Brake, No.3[07.2003 - 05.2006] ACV30,MCV31 |
46430-33100 |
US $66.39 |
||
|
46439
|
46439
46439-06020
Insulator, Parking Brake Cable Heat
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
46439-06020 |
— | ||
|
91645H0822
|
91645H0822
91645-H0822 New Genuine Part |
91645-H0822 |
US $1.75 |
||
| replacement | |||||
|
91645H0822
|
91645H0822
91641-H0822 New Genuine Part |
91641-H0822 |
US $1.05 |
||
|
9008011162
|
9008011162
90080-11162 New Genuine Part |
90080-11162 |
US $0.73 |
||
|
9008017050
|
9008017050
90080-17050
New Genuine Part
|
90080-17050 |
— | ||
|
9008017191
|
9008017191
90080-17191
New Genuine Part
|
90080-17191 |
— | ||
|
9008017209
|
9008017209
90080-17209 Nut, Wire Adjusting, No.2WIRE ADJUSTING, NO.2 |
90080-17209 |
US $1.16 |
||
|
9011906315
|
9011906315
90119-06315 BOLT |
90119-06315 |
US $1.25 |
||
|
9017606045
|
9017606045
90176-06045 NUT, CAP CYL HEAD COVER |
90176-06045 |
from US $0.76 |
||
|
9046706020A0
|
9046706020A0
90467-06020-A0 Retainer, Door Trim |
90467-06020-A0 |
US $2.48 |
||
