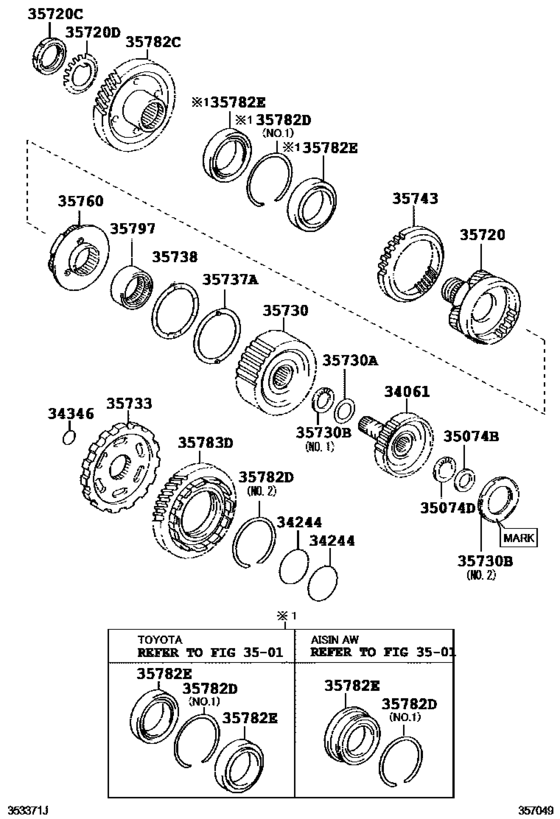

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2003 - ] U151E (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34061
|
34061
34061-07010
Hub Sub-Assy, Overdreve Direct Clutch
[12.2005 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
34061-07010 |
— | ||
|
34061
|
34061
34061-33010 Hub Sub-Assy, Overdreve Direct Clutch[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
34061-33010 |
US $74.26 |
||
|
34061
|
34061
34061-45010 Hub Sub-Assy, Overdreve Direct Clutch[07.2003 - 12.2005] MCV31 TOYOTA:REFER 35-01 |
34061-45010 |
US $74.26 |
||
| replacement | |||||
|
34061
|
34061
34061-33H01 Hub Sub-Assy, Overdreve Direct Clutch[07.2003 - 12.2005] MCV31 TOYOTA:REFER 35-01 |
34061-33H01 |
US $244.76 |
||
|
34244
|
34244
34244-21010 Ring, Underdrive Clutch Drum Oil Seal[07.2003 - 05.2006] ACV30,MCV31..5FC |
34244-21010 |
US $4.95 |
||
|
34346
|
34346
34346-21011 Ring, Underdrive Output Shaft Oil Seal[07.2003 - 05.2006] MCV31 TOYOTA:REFER 35-01; ACV30..5FC |
34346-21011 |
from US $0.87 |
||
|
34346
|
34346
34346-28010 Ring, Underdrive Output Shaft Oil Seal[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
34346-28010 |
US $1.60 |
||
| replacement | |||||
|
34346
|
34346
34346-21011 Ring, Underdrive Output Shaft Oil Seal[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
34346-21011 |
from US $0.87 |
||
|
35074B
|
35074B
35789-08010
Race, Thrust Bearing (For Rear Planetary Ring Gear Front)
[07.2003 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
35789-08010 |
— | ||
|
35074B
|
35074B
35789-33030 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35789-33030 |
US $10.48 |
||
|
35074D
|
35074D
90080-37022
Bearing, Thrust (For Rear Planetary Ring Gear Rear)
[07.2003 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
90080-37022 |
— | ||
|
35074D
|
35074D
90374-25010 Bearing, Thrust (For Rear Planetary Ring Gear Rear)[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
90374-25010 |
US $12.08 |
||
|
35720
|
35720
35720-07010
Gear Assy, Front Planetary
[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35720-07010 |
— | ||
| replacement | |||||
|
35720
|
35720
35720-28070 Gear Assy, Front Planetary[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35720-28070 |
US $628.99 |
||
|
35720
|
35720
35720-21030 Gear Assy, Front Planetary[07.2003 - 07.2004] MCV31 |
35720-21030 |
US $646.46 |
||
| replacement | |||||
|
35720
|
35720
35720-28070 Gear Assy, Front Planetary[07.2003 - 07.2004] MCV31 |
35720-28070 |
US $628.99 |
||
|
35720
|
35720
35720-21031 Gear Assy, Front Planetary[07.2004 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35720-21031 |
US $538.72 |
||
| replacement | |||||
|
35720
|
35720
35720-28070 Gear Assy, Front Planetary[07.2004 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35720-28070 |
US $628.99 |
||
|
35720
|
35720
35720-28070 Gear Assy, Front Planetary[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35720-28070 |
US $628.99 |
||
|
35720C
|
35720C
90179-46001 Nut (For Front Planetary Gear)[01.2005 - 05.2006] MCV31 (J) |
90179-46001 |
US $2.91 |
||
|
35720C
|
35720C
90179-A0012
Nut (For Front Planetary Gear)
[07.2003 - 05.2006] MCV31 (L) |
90179-A0012 |
— | ||
|
35720D
|
35720D
90209-46001 Washer (For Front Planetary Gear)[07.2003 - 05.2006] ACV30,MCV31..5FC |
90209-46001 |
US $1.60 |
||
|
35730
|
35730
35730-07010
Gear Assy, Rear Planetary Sun
[12.2005 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
35730-07010 |
— | ||
|
35730
|
35730
35730-33010 Gear Assy, Rear Planetary Sun[01.2005 - 01.2006] MCV31 AISIN:REFER 35-01 |
35730-33010 |
US $206.75 |
||
| replacement | |||||
|
35730
|
35730
35730-33011 Gear Assy, Rear Planetary Sun[01.2005 - 01.2006] MCV31 AISIN:REFER 35-01 |
35730-33011 |
US $142.69 |
||
|
35730
|
35730
35730-33011 Gear Assy, Rear Planetary Sun[01.2006 - 05.2006] MCV31 AISIN:REFER 35-01 |
35730-33011 |
US $142.69 |
||
|
35730
|
35730
35730-45010
Gear Assy, Rear Planetary Sun
[07.2003 - 12.2005] MCV31 TOYOTA:REFER 35-01 |
35730-45010 |
— | ||
| replacement | |||||
|
35730
|
35730
34061-33H01 Hub Sub-Assy, Overdreve Direct Clutch[07.2003 - 12.2005] MCV31 TOYOTA:REFER 35-01 |
34061-33H01 |
US $244.76 |
||
|
35730A
|
35730A
35785-08010 Race, Thrust Bearing (For Rear Planetary Sun Gear)THRUST BEARING (FOR REAR PLANETARY SUN GEAR) [07.2003 - 05.2006] MCV31 TOYOTA:REFER 35-01 |
35785-08010 |
US $4.95 |
||
|
35730A
|
35730A
35788-33010 Race, Thrust Bearing (For Rear Planetary Sun Gear)[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35788-33010 |
US $3.49 |
||
|
35730B
|
35730B
90080-37023
Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)
[07.2003 - 05.2006] MCV31 NO.2 BLACK PAINTED |
90080-37023 |
— | ||
|
35730B
|
35730B
90080-37024
Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)
[07.2003 - 05.2006] MCV31 NO.2 BROWN PAINTED |
90080-37024 |
— | ||
|
35730B
|
35730B
90080-37025
Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)
[07.2003 - 05.2006] MCV31 *116,NO.1 |
90080-37025 |
— | ||
|
35730B
|
35730B
90374-31007 Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)[01.2005 - 05.2006] MCV31 *122,NO.1 |
90374-31007 |
US $16.02 |
||
|
35730B
|
35730B
90374-55002 Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)[01.2005 - 05.2006] ACV30,MCV31..5FC NO.2,T=3.4 |
90374-55002 |
US $17.47 |
||
|
35730B
|
35730B
90374-55003 Bearing, Thrust Needle Roller (For Rear Planerary Sun Gear)[01.2005 - 05.2006] ACV30,MCV31..5FC NO.2,T=3.7 |
90374-55003 |
US $11.36 |
||
|
35733
|
35733
35733-48010 Gear, Parking Lock[07.2003 - 05.2006] MCV31 |
35733-48010 |
from US $52.12 |
||
|
35737A
|
35737A
35737-08010
Washer, Planetary Carrier Thrust, No.1
[07.2003 - 05.2006] MCV31 (L),TMC:REFER 35-01 |
35737-08010 |
— | ||
|
35737A
|
35737A
35737-21010 Washer, Planetary Carrier Thrust, No.1[07.2003 - 05.2006] MCV31 (J),TMC:REFER 35-01 |
35737-21010 |
US $15.43 |
||
|
35737A
|
35737A
35737-28020
Washer, Planetary Carrier Thrust, No.1
[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35737-28020 |
— | ||
|
35738
|
35738
35738-08010
Washer, Planetary Carrier Thrust, No.2
[07.2003 - 05.2006] MCV31 (L) |
35738-08010 |
— | ||
|
35738
|
35738
35738-33030 Washer, Planetary Carrier Thrust, No.2[07.2003 - 05.2006] MCV31 (J) |
35738-33030 |
US $15.43 |
||
|
35743
|
35743
35743-07010
Gear, Front Planetary Ring
[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35743-07010 |
— | ||
| replacement | |||||
|
35743
|
35743
35743-28010 Gear, Front Planetary Ring[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35743-28010 |
from US $78.26 |
||
|
35743
|
35743
35743-21010 Gear, Front Planetary Ring[07.2003 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35743-21010 |
US $125.22 |
||
| replacement | |||||
|
35743
|
35743
35743-28010 Gear, Front Planetary Ring[07.2003 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35743-28010 |
from US $78.26 |
||
|
35743
|
35743
35743-28010 Gear, Front Planetary Ring[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35743-28010 |
from US $78.26 |
||
|
35760
|
35760
35760-07010
Gear Assy, Rear Planetary
[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35760-07010 |
— | ||
| replacements | |||||
|
35760
|
35760
35737-42010 Washer, Planetary Carrier Thrust, No.1[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35737-42010 |
US $18.49 |
||
|
35760
|
35760
35760-42010 Gear Assy, Rear Planetary[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35760-42010 |
US $211.12 |
||
|
35760
|
35760
35760-33040 Gear Assy, Rear Planetary[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35760-33040 |
US $304.30 |
||
| replacements | |||||
|
35760
|
35760
35737-42010 Washer, Planetary Carrier Thrust, No.1[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35737-42010 |
US $18.49 |
||
|
35760
|
35760
35760-42010 Gear Assy, Rear Planetary[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35760-42010 |
US $211.12 |
||
|
35760
|
35760
35760-45010 Gear Assy, Rear Planetary[07.2003 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35760-45010 |
US $305.76 |
||
| replacements | |||||
|
35760
|
35760
35737-42010 Washer, Planetary Carrier Thrust, No.1[07.2003 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35737-42010 |
US $18.49 |
||
|
35760
|
35760
35760-42010 Gear Assy, Rear Planetary[07.2003 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35760-42010 |
US $211.12 |
||
|
35782C
|
35782C
35782-07010
Gear, Counter Drive
[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35782-07010 |
— | ||
| replacements | |||||
|
35782C
|
35782C
35782-33020 Gear, Counter Drive[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35782-33020 |
US $278.10 |
||
|
35782C
|
35782C
35783-33030 Gear, Counter Driven[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35783-33030 |
US $282.46 |
||
|
35782C
|
35782C
35782-33020 Gear, Counter Drive[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35782-33020 |
US $278.10 |
||
|
35782C
|
35782C
35782-45010 Gear, Counter Drive[07.2003 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35782-45010 |
US $128.13 |
||
| replacement | |||||
|
35782C
|
35782C
35782-33020 Gear, Counter Drive[07.2003 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35782-33020 |
US $278.10 |
||
|
35782D
|
35782D
90080-52128
Ring, Hole Snap(For Counter Drive Gear)
[07.2003 - 05.2006] MCV31 *116,NO.1,(L) |
90080-52128 |
— | ||
|
35782D
|
35782D
90080-52134
Ring, Hole Snap(For Counter Drive Gear)
[07.2003 - 05.2006] MCV31 *116,NO.2,(L) |
90080-52134 |
— | ||
|
35782D
|
35782D
90520-84001 Ring, Hole Snap(For Counter Drive Gear)[07.2003 - 05.2006] MCV31 *116,NO.1,(J) |
90520-84001 |
from US $3.91 |
||
|
35782D
|
35782D
90520-87004 Ring, Hole Snap(For Counter Drive Gear)[01.2005 - 05.2006] MCV31 *122,NO.1 |
90520-87004 |
US $2.77 |
||
|
35782D
|
35782D
90520-89004 Ring, Hole Snap(For Counter Drive Gear)[07.2003 - 05.2006] MCV31 *116,NO.2,(J) |
90520-89004 |
US $1.89 |
||
|
35782E
|
35782E
90080-36121
Bearing(For Counter Drive Gear)
[07.2003 - 05.2006] MCV31 *116 |
90080-36121 |
— | ||
|
35782E
|
35782E
90366-59001
Bearing(For Counter Drive Gear)
[01.2005 - 05.2006] MCV31 *122 |
90366-59001 |
— | ||
|
35783D
|
35783D
35783-07010
Gear, Counter Driven
[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35783-07010 |
— | ||
| replacements | |||||
|
35783D
|
35783D
35782-33020 Gear, Counter Drive[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35782-33020 |
US $278.10 |
||
|
35783D
|
35783D
35783-33030 Gear, Counter Driven[01.2006 - 05.2006] MCV31 (L)TOYOTA:REFER35-01 |
35783-33030 |
US $282.46 |
||
|
35783D
|
35783D
35783-33030 Gear, Counter Driven[01.2005 - 05.2006] MCV31 AISIN:REFER 35-01 |
35783-33030 |
US $282.46 |
||
|
35783D
|
35783D
35783-45010 Gear, Counter Driven[07.2003 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35783-45010 |
US $321.78 |
||
| replacement | |||||
|
35783D
|
35783D
35783-33030 Gear, Counter Driven[07.2003 - 01.2006] MCV31 TOYOTA:REFER 35-01 |
35783-33030 |
US $282.46 |
||
|
35797
|
35797
35797-21010 Race, 1 Way Clutch Inner[07.2003 - 05.2006] ACV30,MCV31..5FC |
35797-21010 |
US $72.81 |
||
