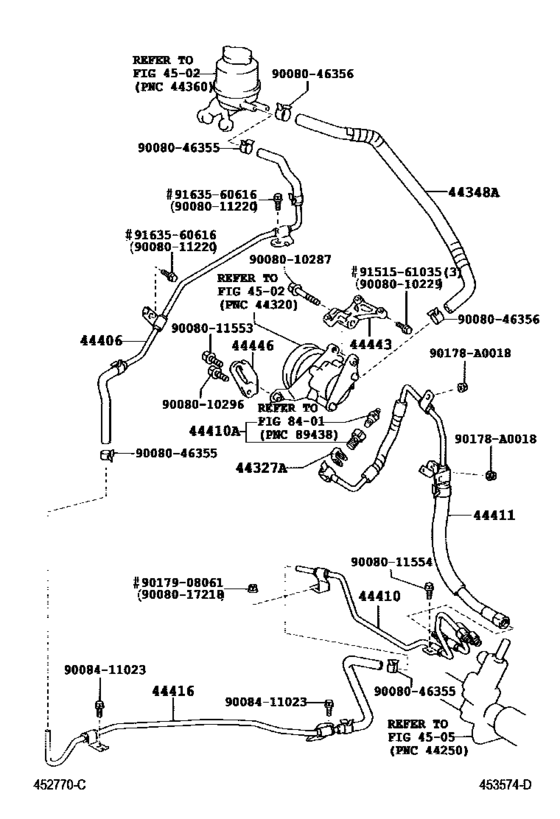

Power Steering Tube ([07.2003 - ] (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[07.2003 - 05.2006] ACV30,MCV31 |
44327-30030 |
from US $1.90 |
||
|
44348A
|
44348A
44348-06180
Hose, Oil Reservoir To Pump, No.1
[07.2003 - 05.2006] MCV31 |
44348-06180 |
— | ||
|
44406
|
44406
44406-06100
Tube Sub-Assy, Return
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
44406-06100 |
— | ||
|
44410
|
44410
44410-06150
Tube Assy, Pressure Feed
[07.2003 - 05.2006] MCV31 |
44410-06150 |
— | ||
|
44410A
|
44410A
44338-08010
Bolt, Union(For Pressure Feed Tube)
[07.2003 - 05.2006] MCV31 |
44338-08010 |
— | ||
|
44411
|
44411
44411-06080
Hose, Pressure Feed
[07.2003 - 05.2006] MCV31 |
44411-06080 |
— | ||
| replacement | |||||
|
44411
|
44411
44411-06081
Hose, Pressure Feed
[07.2003 - 05.2006] MCV31 |
44411-06081 |
— | ||
|
44411
|
44411
44411-06081
Hose, Pressure Feed
[07.2007 - 08.2008] MCV31..CP |
44411-06081 |
— | ||
|
44416
|
44416
44416-06100
Tube, Return(For Steering Gear Outlet)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
44416-06100 |
— | ||
|
44443
|
44443
44443-33041 Bracket, Pump[07.2003 - 05.2006] MCV31 |
44443-33041 |
US $49.80 |
||
|
44446
|
44446
44446-28030 Strut, Adjusting[07.2003 - 05.2006] MCV31 |
44446-28030 |
US $10.48 |
||
|
90178A0018
|
90178A0018
90178-A0018
New Genuine Part
|
90178-A0018 |
— | ||
|
9008010229
|
9008010229
90080-10229
New Genuine Part
|
90080-10229 |
— | ||
|
9008010287
|
9008010287
90080-10287
New Genuine Part
|
90080-10287 |
— | ||
|
9008010296
|
9008010296
90080-10296
New Genuine Part
|
90080-10296 |
— | ||
|
9008011220
|
9008011220
90080-11220 BOLT WWASHER |
90080-11220 |
US $0.83 |
||
|
9008011553
|
9008011553
90080-11553
New Genuine Part
|
90080-11553 |
— | ||
|
9008011554
|
9008011554
90080-11554
New Genuine Part
|
90080-11554 |
— | ||
|
9008017218
|
9008017218
90080-17218
New Genuine Part
|
90080-17218 |
— | ||
|
9008046355
|
9008046355
90080-46355 CLIP HOSE |
90080-46355 |
from US $1.40 |
||
|
9008046356
|
9008046356
90080-46356
CLIP HOSE
|
90080-46356 |
— | ||
|
9008411023
|
9008411023
90084-11023 New Genuine Part |
90084-11023 |
US $0.73 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.74 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
from US $0.93 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
