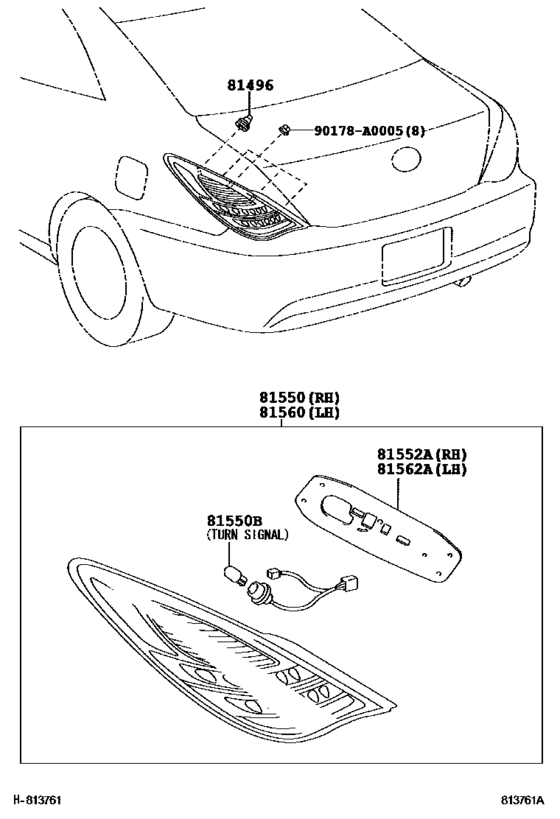

Rear Combination Lamp ([05.2006 - ] (0605- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-AA010
Guide, Rear Combination Lamp
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
81496-AA010 |
— | ||
|
81550
|
81550
81550-06320
Lamp Assy, Rear Combination, Rh
[05.2006 - 08.2008] ACV30,MCV31..CP |
81550-06320 |
— | ||
|
81550
|
81550
81550-AA060 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
81550-AA060 |
US $226.04 |
||
|
81550B
|
81550B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[07.2003 - 05.2006] ACV30,MCV31..5F,5FC 12V 16W,BACK UP |
90981-11059 |
from US $3.15 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[05.2006 - 08.2008] ACV30,MCV31..CP 12V 21W,AMBER,TURN SIGNAL |
90981-15011 |
from US $4.48 |
||
|
81550B
|
81550B
90981-AD003
Bulb(For Rear Combination Lamp)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC 12V 27W,TURN SIGNAL |
90981-AD003 |
— | ||
|
81550B
|
81550B
90981-AD004
Bulb(For Rear Combination Lamp)
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC 12V 27/7W,TAIL & STOP |
90981-AD004 |
— | ||
|
81552A
|
81552A
81552-06320
Gasket, Rear Combination Lamp, Rh
[05.2006 - 08.2008] ACV30,MCV31..CP |
81552-06320 |
— | ||
|
81560
|
81560
81560-06320
Lamp Assy, Rear Combination, Lh
[05.2006 - 08.2008] ACV30,MCV31..CP |
81560-06320 |
— | ||
|
81560
|
81560
81560-AA060 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
81560-AA060 |
US $222.34 |
||
|
81562A
|
81562A
81562-06320
Gasket, Rear Combination Lamp, Lh
[05.2006 - 08.2008] ACV30,MCV31..CP |
81562-06320 |
— | ||
|
90178A0005
|
90178A0005
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
