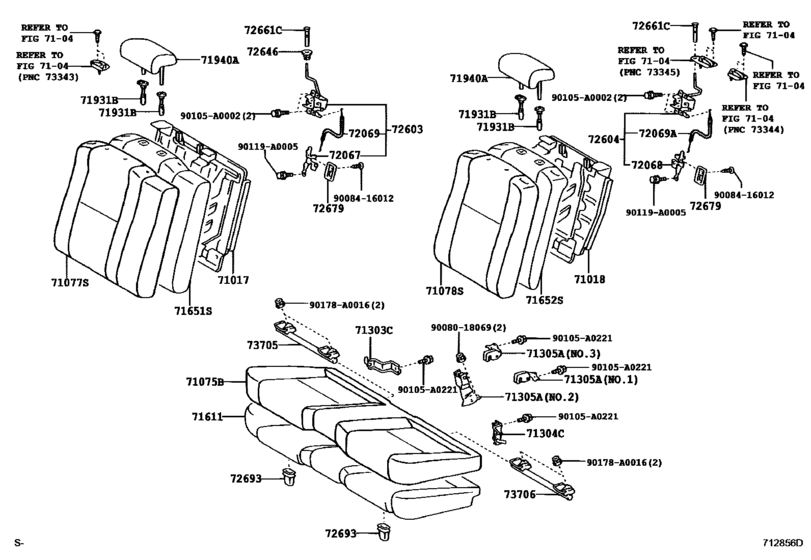

Rear Seat & Seat Track ([07.2003 - ] (0307- )CP) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71017
|
71017
71017-AA050
Frame Sub-Assy, Rear Seat Back, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP |
71017-AA050 |
— | ||
|
71018
|
71018
71018-AA040
Frame Sub-Assy, Rear Seat Back, Lh
[07.2003 - 05.2006] ACV30,MCV31..CP |
71018-AA040 |
— | ||
|
71075B
|
71075B
71075-AA310-A0
Cover, Rear Seat Cushion (For Bench Type)
[07.2003 - 08.2004] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71075-AA310-A0 |
— | ||
| replacement | |||||
|
71075B
|
71075B
71075-AA311-A0
Cover, Rear Seat Cushion (For Bench Type)
[07.2003 - 08.2004] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71075-AA311-A0 |
— | ||
|
71075B
|
71075B
71075-AA310-B0
Cover, Rear Seat Cushion (For Bench Type)
[07.2003 - 08.2004] MCV31..CP..SLE DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),DARK STONE,TRIM1# |
71075-AA310-B0 |
— | ||
| replacement | |||||
|
71075B
|
71075B
71075-AA311-B0
Cover, Rear Seat Cushion (For Bench Type)
[07.2003 - 08.2004] MCV31..CP..SLE DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),DARK STONE,TRIM1# |
71075-AA311-B0 |
— | ||
|
71075B
|
71075B
71075-AA311-A0
Cover, Rear Seat Cushion (For Bench Type)
[08.2004 - 05.2006] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71075-AA311-A0 |
— | ||
|
71075B
|
71075B
71075-AA311-B0
Cover, Rear Seat Cushion (For Bench Type)
[08.2004 - 05.2006] MCV31..CP..SLE STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),STONE,TRIM1# |
71075-AA311-B0 |
— | ||
|
71077S
|
71077S
71077-AA430-A0
Cover, Rear Seat Back, Rh (For Separate Type)
[07.2003 - 08.2004] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71077-AA430-A0 |
— | ||
| replacement | |||||
|
71077S
|
71077S
71077-AA432-A1
Cover, Rear Seat Back, Rh (For Separate Type)
[07.2003 - 08.2004] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71077-AA432-A1 |
— | ||
|
71077S
|
71077S
71077-AA430-B0
Cover, Rear Seat Back, Rh (For Separate Type)
[07.2003 - 08.2004] MCV31..CP..SLE DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),DARK STONE,TRIM1# |
71077-AA430-B0 |
— | ||
|
71077S
|
71077S
71077-AA432-A1
Cover, Rear Seat Back, Rh (For Separate Type)
[08.2004 - 05.2006] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71077-AA432-A1 |
— | ||
|
71077S
|
71077S
71077-AA432-B1
Cover, Rear Seat Back, Rh (For Separate Type)
[08.2004 - 05.2006] MCV31..CP..SLE DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),DARK STONE,TRIM1# |
71077-AA432-B1 |
— | ||
|
71078S
|
71078S
71078-AA320-A0
Cover, Rear Seat Back, Lh(For Separate Type)
[07.2003 - 08.2004] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71078-AA320-A0 |
— | ||
| replacement | |||||
|
71078S
|
71078S
71078-AA322-A1
Cover, Rear Seat Back, Lh(For Separate Type)
[07.2003 - 08.2004] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71078-AA322-A1 |
— | ||
|
71078S
|
71078S
71078-AA320-B0
Cover, Rear Seat Back, Lh(For Separate Type)
[07.2003 - 08.2004] MCV31..CP..SLE DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),DARK STONE,TRIM1# |
71078-AA320-B0 |
— | ||
|
71078S
|
71078S
71078-AA322-A1
Cover, Rear Seat Back, Lh(For Separate Type)
[08.2004 - 05.2006] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71078-AA322-A1 |
— | ||
|
71078S
|
71078S
71078-AA322-B1
Cover, Rear Seat Back, Lh(For Separate Type)
[08.2004 - 05.2006] MCV31..CP..SLE DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),DARK STONE,TRIM1# |
71078-AA322-B1 |
— | ||
|
71303C
|
71303C
71303-AA090
Hinge Sub-Assy, Rear Seat Back, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP |
71303-AA090 |
— | ||
|
71304C
|
71304C
71303-AA100
Hinge Sub-Assy, Rear Seat Back, Lh
[07.2003 - 05.2006] ACV30,MCV31..CP |
71303-AA100 |
— | ||
|
71305A
|
71305A
71305-AA060
Hinge Sub-Assy, Rear Seat Back, Center
[07.2003 - 05.2006] ACV30,MCV31..CP NO.1 |
71305-AA060 |
— | ||
|
71305A
|
71305A
71305-AA070
Hinge Sub-Assy, Rear Seat Back, Center
[07.2003 - 05.2006] ACV30,MCV31..CP |
71305-AA070 |
— | ||
|
71305A
|
71305A
71305-AA080
Hinge Sub-Assy, Rear Seat Back, Center
[07.2003 - 05.2006] ACV30,MCV31..CP NO.3 |
71305-AA080 |
— | ||
|
71611
|
71611
71503-AA040
Pad, Rear Seat Cushion
[07.2003 - 05.2006] ACV30,MCV31..CP |
71503-AA040 |
— | ||
|
71651S
|
71651S
71651-AA060
Pad, Rear Seat Back, Rh(For Separate Type)
[07.2003 - 08.2004] ACV30,MCV31..CP |
71651-AA060 |
— | ||
| replacement | |||||
|
71651S
|
71651S
71651-AA061
Pad, Rear Seat Back, Rh(For Separate Type)
[07.2003 - 08.2004] ACV30,MCV31..CP |
71651-AA061 |
— | ||
|
71651S
|
71651S
71651-AA061
Pad, Rear Seat Back, Rh(For Separate Type)
[08.2004 - 05.2006] ACV30,MCV31..CP |
71651-AA061 |
— | ||
|
71652S
|
71652S
71652-AA060
Pad, Rear Seat Back, Lh(For Separate Type)
[07.2003 - 08.2004] ACV30,MCV31..CP |
71652-AA060 |
— | ||
| replacement | |||||
|
71652S
|
71652S
71652-AA061
Pad, Rear Seat Back, Lh(For Separate Type)
[07.2003 - 08.2004] ACV30,MCV31..CP |
71652-AA061 |
— | ||
|
71652S
|
71652S
71652-AA061
Pad, Rear Seat Back, Lh(For Separate Type)
[08.2004 - 05.2006] ACV30,MCV31..CP |
71652-AA061 |
— | ||
|
71931B
|
71931B
71956-02040-A0
Support, Rear Seat Headrest
[03.2005 - 05.2006] ACV30,MCV31..CP W/O(LOCK),IVORY,TRIM0# |
71956-02040-A0 |
— | ||
|
71931B
|
71931B
71956-02040-B2 Support Assy, Rear No.1 Seat Headrest[03.2005 - 05.2006] ACV30,MCV31..CP..SE W/O(LOCK),DK. STONE,TRIM10; ACV30,MCV31..CP..SLE W/O(LOCK),DK. STONE,TRIM1# |
71956-02040-B2 |
US $13.83 |
||
|
71931B
|
71931B
71956-47010-A0 Support, Rear Seat Headrest[07.2003 - 02.2005] ACV30,MCV31..CP W/O(LOCK),IVORY,TRIM0# |
71956-47010-A0 |
US $14.50 |
||
|
71931B
|
71931B
71956-47010-B7
Support Assy, Rear No.1 Seat Headrest
[07.2003 - 02.2005] ACV30,MCV31..CP..SE W/O(LOCK),DK. STONE,TRIM10; ACV30,MCV31..CP..SLE W/O(LOCK),DK. STONE,TRIM1# |
71956-47010-B7 |
— | ||
| replacement | |||||
|
71931B
|
71931B
71956-02040-B2 Support Assy, Rear No.1 Seat Headrest[07.2003 - 02.2005] ACV30,MCV31..CP..SE W/O(LOCK),DK. STONE,TRIM10; ACV30,MCV31..CP..SLE W/O(LOCK),DK. STONE,TRIM1# |
71956-02040-B2 |
US $13.83 |
||
|
71931B
|
71931B
71970-02040-A0
Support, Rear Seat Headrest
[03.2005 - 05.2006] ACV30,MCV31..CP W(LOCK),IVORY,TRIM0# |
71970-02040-A0 |
— | ||
|
71931B
|
71931B
71970-02040-B2
Support Assy, Rear No.1 Seat Headrest
[03.2005 - 05.2006] ACV30,MCV31..CP..SE W(LOCK),DK. STONE,TRIM10; ACV30,MCV31..CP..SLE W(LOCK),DK. STONE,TRIM1# |
71970-02040-B2 |
— | ||
|
71931B
|
71931B
71970-47010-A0 Support, Rear Seat Headrest[07.2003 - 02.2005] ACV30,MCV31..CP W(LOCK),IVORY,TRIM0# |
71970-47010-A0 |
US $17.82 |
||
|
71931B
|
71931B
71970-47010-B8
Support Assy, Rear No.1 Seat Headrest
[07.2003 - 02.2005] ACV30,MCV31..CP..SE W(LOCK),DK. STONE,TRIM10; ACV30,MCV31..CP..SLE W(LOCK),DK. STONE,TRIM1# |
71970-47010-B8 |
— | ||
| replacement | |||||
|
71931B
|
71931B
71970-02040-B2
Support Assy, Rear No.1 Seat Headrest
[07.2003 - 02.2005] ACV30,MCV31..CP..SE W(LOCK),DK. STONE,TRIM10; ACV30,MCV31..CP..SLE W(LOCK),DK. STONE,TRIM1# |
71970-02040-B2 |
— | ||
|
71940A
|
71940A
71940-06540-A0
Headrest Assy, Rear Seat
[05.2006 - 08.2008] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE DRIVER POWER SEAT + LEATHER PACKAGE,IVORY,TRIM0#; ACV30..SLE DRIVER POWER SEAT + LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER&PASSENGER),IVORY,TRIM0 # |
71940-06540-A0 |
— | ||
|
71940A
|
71940A
71940-06540-B0
Headrest Assy, Rear Seat
[05.2006 - 08.2008] MCV31..CP..SLE DK STONE,TRIM1#; ACV30..SLE DRIVER POWER SEAT + LEATHER PACKAGE,DK STONE,TRIM1#; ACV30..SLE DRIVER POWER SEAT + LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER&PASSENGER),DK STONE,TR IM1# |
71940-06540-B0 |
— | ||
|
71940A
|
71940A
71940-AA150-A0
Headrest Assy, Rear Seat
[07.2003 - 08.2004] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71940-AA150-A0 |
— | ||
| replacement | |||||
|
71940A
|
71940A
71940-AA151-A0
Headrest Assy, Rear Seat
[07.2003 - 08.2004] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71940-AA151-A0 |
— | ||
|
71940A
|
71940A
71940-AA150-B0
Headrest Assy, Rear Seat
[07.2003 - 08.2004] MCV31..CP..SLE DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),DARK STONE,TRIM1# |
71940-AA150-B0 |
— | ||
| replacement | |||||
|
71940A
|
71940A
71940-AA151-B1
Headrest Assy, Rear Seat
[07.2003 - 08.2004] MCV31..CP..SLE DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,DARK STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),DARK STONE,TRIM1# |
71940-AA151-B1 |
— | ||
|
71940A
|
71940A
71940-AA151-A0
Headrest Assy, Rear Seat
[08.2004 - 05.2006] MCV31..CP..SLE IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,IVORY,TRIM0#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),IVORY,TRIM0# |
71940-AA151-A0 |
— | ||
|
71940A
|
71940A
71940-AA151-B0
Headrest Assy, Rear Seat
[08.2004 - 05.2006] MCV31..CP..SLE STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT,STONE,TRIM1#; ACV30..SLE W/POWER SEAT & LEATHER SEAT&SEAT HEATER-WITH(D&P SEAT),STONE,TRIM1# |
71940-AA151-B0 |
— | ||
|
72067
|
72067
72067-AA010 Lever Sub-Assy, Rear Back Lock Control, RhREAR BACK LOCK CONTROL, RH [07.2003 - 05.2006] ACV30,MCV31..CP |
72067-AA010 |
US $13.40 |
||
|
72068
|
72068
72067-AA010 Lever Sub-Assy, Rear Back Lock Control, RhREAR BACK LOCK CONTROL, RH [07.2003 - 05.2006] ACV30,MCV31..CP |
72067-AA010 |
US $13.40 |
||
|
72069
|
72069
72069-AA010
Cable Sub-Assy, Rear Seat Back Lock Control
[07.2003 - 05.2006] ACV30,MCV31..CP |
72069-AA010 |
— | ||
|
72069A
|
72069A
72069-AA010
Cable Sub-Assy, Rear Seat Back Lock Control
[07.2003 - 05.2006] ACV30,MCV31..CP |
72069-AA010 |
— | ||
|
72603
|
72603
72630-AA040
Lock Sub-Assy, Rear Seat Back, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP |
72630-AA040 |
— | ||
|
72604
|
72604
72640-AA040
Lock Sub-Assy, Rear Seat Back, Lh
[07.2003 - 05.2006] ACV30,MCV31..CP |
72640-AA040 |
— | ||
|
72646
|
72646
72646-AA020-A0
Grommet, Rear Seat Back Stop Button
[07.2003 - 05.2006] ACV30,MCV31..CP IVORY,TRIM0# |
72646-AA020-A0 |
— | ||
|
72646
|
72646
72646-AA020-B2
Grommet, Rear Seat Back Stop Button
[07.2003 - 05.2006] ACV30,MCV31..CP..SE DK. STONE,TRIM10; ACV30,MCV31..CP..SLE DK. STONE,TRIM1# |
72646-AA020-B2 |
— | ||
|
72661C
|
72661C
72661-AA020-A0
Button, Rear Seat Back Lock Release
[07.2003 - 05.2006] ACV30,MCV31..CP IVORY,TRIM0# |
72661-AA020-A0 |
— | ||
|
72661C
|
72661C
72661-AA020-B2
Button, Rear Seat Back Lock Release
[07.2003 - 05.2006] ACV30,MCV31..CP..SE DK. STONE,TRIM10; ACV30,MCV31..CP..SLE DK. STONE,TRIM1# |
72661-AA020-B2 |
— | ||
|
72679
|
72679
72679-06010
Bezel, Rear Seat Back Lock Control
[07.2003 - 08.2004] MCV31..CP..SLE |
72679-06010 |
— | ||
|
72679
|
72679
72679-06010-C0
Bezel, Rear Seat Back Lock Control
[08.2004 - 05.2006] ACV30,MCV31..CP..5FC..SLE BLACK,TRIM0#,1#; MCV31..CP..SE;ACV30..(4FC,5F)..SE SPORT PACKAGE&W/POWER SEAT & LEATHER SEAT,BLACK,TRIM0#,10,11 |
72679-06010-C0 |
— | ||
|
72693
|
72693
72693-12080 Hook, Rear Seat Cushion Lock[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
72693-12080 |
from US $1.25 |
||
|
73705
|
73705
73705-AA060
Bracket Sub-Assy, Child Restraint Seat Anchor, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
73705-AA060 |
— | ||
|
73706
|
73706
73706-AA060
Bracket Sub-Assy, Child Restraint Seat Anchor, Lh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
73706-AA060 |
— | ||
|
90105A0002
|
90105A0002
90105-A0002
New Genuine Part
|
90105-A0002 |
— | ||
|
90105A0221
|
90105A0221
90105-A0221
New Genuine Part
|
90105-A0221 |
— | ||
|
90119A0005
|
90119A0005
90119-A0005
New Genuine Part
|
90119-A0005 |
— | ||
|
90178A0016
|
90178A0016
90178-A0016
New Genuine Part
|
90178-A0016 |
— | ||
|
9008018069
|
9008018069
90080-18069
New Genuine Part
|
90080-18069 |
— | ||
|
9008416012
|
9008416012
90084-16012 SCREW |
90084-16012 |
US $1.77 |
||
