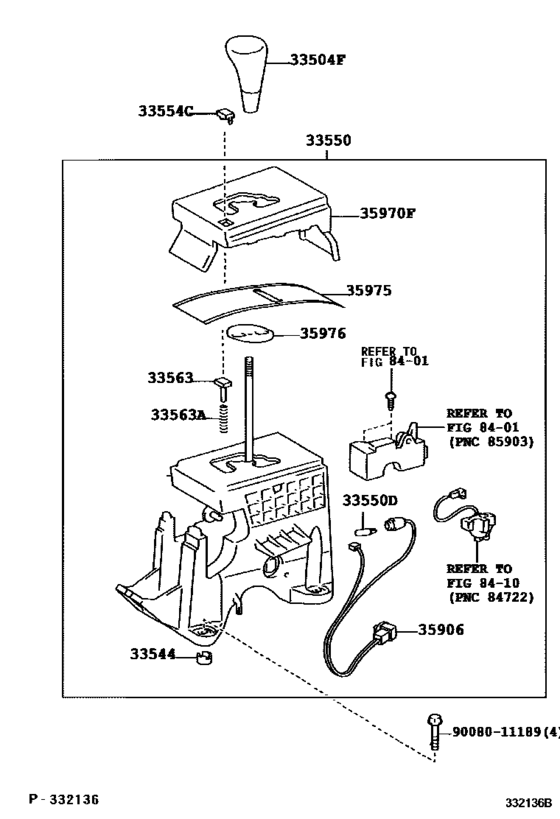

Shift Lever & Retainer ([07.2003 - ] (0307- )4FC,5FC) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-06020-B1
Knob Sub-Assy, Shift Lever
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE DK. STONE,TRIM1#; ACV30,MCV31..CP..5FC..SE SPORT PACKAGE(HID HEAD LAMP),DK. STONE,TRIM10; ACV30,MCV31..CP..5FC..SE SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK. STONE,TRIM10; ACV30,MCV31..CP |
33504-06020-B1 |
— | ||
|
33504F
|
33504F
33504-06020-E0
Knob Sub-Assy, Shift Lever
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE ORCHID BROWN,TRIM0#; ACV30,MCV31..CP..5FC..SE SPORT PACKAGE(HID HEAD LAMP),ORCHID BROWN,TRIM0#; ACV30,MCV31..CP..5FC..SE SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,ORCHID BROWN,TRI M0#; ACV30 |
33504-06020-E0 |
— | ||
|
33504F
|
33504F
33504-30281-A0 Knob Sub-Assy, Shift Lever[07.2003 - 03.2004] ACV30,MCV31..SLE IVORY,TRIM0# |
33504-30281-A0 |
US $82.99 |
||
| replacement | |||||
|
33504F
|
33504F
33504-52090-B0 Knob Sub-Assy, Shift Lever[07.2003 - 03.2004] ACV30,MCV31..SLE IVORY,TRIM0# |
33504-52090-B0 |
US $87.36 |
||
|
33504F
|
33504F
33504-30281-B4 Knob Sub-Assy, Shift LeverSHIFT LEVER [07.2003 - 05.2006] ACV30,MCV31..SLE DK. STONE,TRIM1# |
33504-30281-B4 |
US $82.99 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30281-C1 Knob Sub-Assy, Shift Lever (Black color)[07.2003 - 05.2006] ACV30,MCV31..SLE DK. STONE,TRIM1# |
33504-30281-C1 |
US $81.84 |
||
|
33504F
|
33504F
33504-30281-E3 Knob Sub-Assy, Shift Lever[03.2004 - 05.2006] MCV31..SLE;ACV30..4FC..SLE ORCHID BROWN,TRIM00 |
33504-30281-E3 |
US $82.99 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30281-C1 Knob Sub-Assy, Shift Lever (Black color)[03.2004 - 05.2006] MCV31..SLE;ACV30..4FC..SLE ORCHID BROWN,TRIM00 |
33504-30281-C1 |
US $81.84 |
||
|
33544
|
33544
33544-06010 Insert, Shift Lever, No.1[07.2003 - 05.2006] ACV30,MCV31..5FC |
33544-06010 |
US $0.99 |
||
|
33550
|
33550
33550-06461
Floor Shift Assy, Transmission
[05.2006 - 08.2008] ACV30,MCV31..CP..5FC |
33550-06461 |
— | ||
|
33550
|
33550
33550-AA020
Floor Shift Assy, Transmission
[07.2003 - 12.2005] ACV30,MCV31..5FC |
33550-AA020 |
— | ||
| replacement | |||||
|
33550
|
33550
33550-AA021
Floor Shift Assy, Transmission
[07.2003 - 12.2005] ACV30,MCV31..5FC |
33550-AA021 |
— | ||
|
33550
|
33550
33550-AA021
Floor Shift Assy, Transmission
[01.2006 - 05.2006] ACV30,MCV31..5FC |
33550-AA021 |
— | ||
|
33550D
|
33550D
90981-11040 Bulb, Position Indicator Lamp[07.2003 - 05.2006] ACV30,MCV31..5FC 12V 2W |
90981-11040 |
from US $2.03 |
||
|
33554C
|
33554C
33554-AA010 Cover, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [07.2003 - 05.2006] ACV30,MCV31..5FC |
33554-AA010 |
US $1.50 |
||
|
33563
|
33563
33563-AA010
Button, Shift Lock Release
[07.2003 - 05.2006] ACV30,MCV31..5FC |
33563-AA010 |
— | ||
|
33563A
|
33563A
90080-50179 Spring, Compression (For Shift Lock Release Button)COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) [07.2003 - 05.2006] ACV30,MCV31..5FC |
90080-50179 |
US $1.16 |
||
|
35906
|
35906
35906-AA010
Wire Sub-Assy, Indicator Lamp
[07.2003 - 09.2003] MCV31 |
35906-AA010 |
— | ||
|
35906
|
35906
35906-AA020
Wire Sub-Assy, Indicator Lamp
[09.2003 - 05.2006] ACV30,MCV31..5FC |
35906-AA020 |
— | ||
|
35970F
|
35970F
35970-33220
Housing Assy, Position Indicator
[05.2006 - 08.2008] ACV30,MCV31..CP..5FC |
35970-33220 |
— | ||
|
35970F
|
35970F
35970-AA020
Housing Assy, Position Indicator
[07.2003 - 05.2006] ACV30,MCV31..5FC |
35970-AA020 |
— | ||
|
35975
|
35975
35975-20240 Cover, Slide (For Position Indicator)[07.2003 - 05.2006] ACV30,MCV31..5FC |
35975-20240 |
US $5.10 |
||
|
35976
|
35976
35976-20160 Cover, Slide, No.2 (For Position Indicator)[07.2003 - 05.2006] ACV30,MCV31..5FC |
35976-20160 |
US $6.55 |
||
|
9008011189
|
9008011189
90080-11189
New Genuine Part
|
90080-11189 |
— | ||
