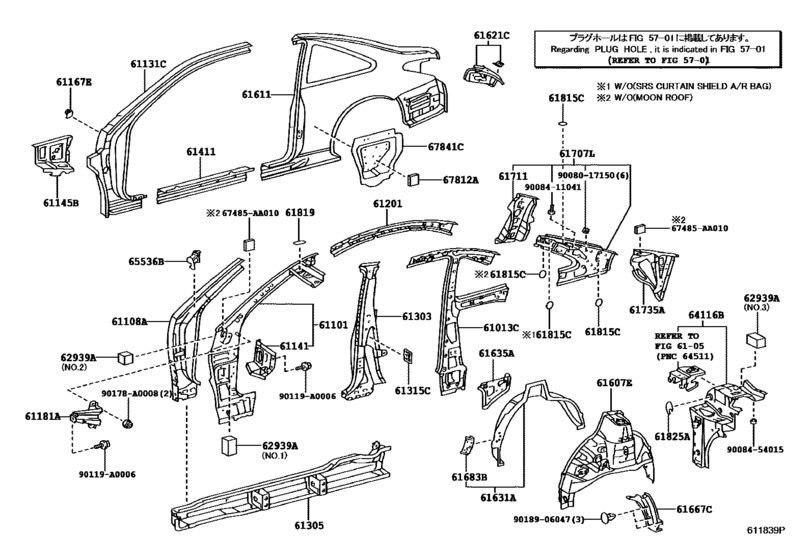

Side Member ([07.2003 - ] RH SIDE (0307- )CP) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61013C
|
61013C
61013-AA010
Panel Sub-Assy, Side, Inner Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61013-AA010 |
— | ||
|
61101
|
61101
61101-AA030
Panel Sub-Assy, Cowl Side, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61101-AA030 |
— | ||
|
61108A
|
61108A
61108-AA030
Reinforce Sub-Assy, Front Body Pillar, Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61108-AA030 |
— | ||
|
61131C
|
61131C
61131-AA040
Pillar, Front Body, Outer Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61131-AA040 |
— | ||
|
61141
|
61141
61141-AA020
Gusset, Front Pillar Upper Corner, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61141-AA020 |
— | ||
|
61145B
|
61145B
61145-AA030
Gusset, Front Body Pillar, Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61145-AA030 |
— | ||
|
61167E
|
61167E
61168-06010 Bracket, Instrument Panel To Cowl Side, RhNO.6 PILLAR OUTER [07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61168-06010 |
US $2.91 |
||
|
61181A
|
61181A
61181-AA010
Bracket, Instrument Side, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61181-AA010 |
— | ||
|
61201
|
61201
61201-AA010
Rail Sub-Assy, Roof Side, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61201-AA010 |
— | ||
|
61303
|
61303
61303-AA902
Reinforce Sub-Assy, Center Body Pillar, Upper Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61303-AA902 |
— | ||
|
61305
|
61305
61305-AA030
Reinforce Sub-Assy, Center Body Pillar, Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61305-AA030 |
— | ||
| replacement | |||||
|
61305
|
61305
61305-AA900
Reinforce Sub-Assy, Center Body Pillar, Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61305-AA900 |
— | ||
|
61305
|
61305
61305-AA900
Reinforce Sub-Assy, Center Body Pillar, Lower Rh
[05.2006 - 08.2008] ACV30,MCV31..CP |
61305-AA900 |
— | ||
|
61315C
|
61315C
61315-AA010
Retainer, Door Lock Striker, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61315-AA010 |
— | ||
|
61411
|
61411
61411-AA010
Panel, Rocker, Outer Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61411-AA010 |
— | ||
|
61607E
|
61607E
61607-AA902
Panel, Quarter Wheel House, Inner Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61607-AA902 |
— | ||
|
61611
|
61611
61611-AA060
Panel, Quarter, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61611-AA060 |
— | ||
|
61621C
|
61621C
61697-AA904
Trough, Luggage Compartment Opening, Rh
[07.2003 - 05.2006] ACV30,MCV31 |
61697-AA904 |
— | ||
|
61631A
|
61631A
61631-AA901
Panel, Quarter Wheel House, Outer Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61631-AA901 |
— | ||
|
61635A
|
61635A
61635-AA020
Brace, Quarter Wheel House, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61635-AA020 |
— | ||
|
61667C
|
61667C
61667-AA030
Seal, Qaurter Panel, No.1
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61667-AA030 |
— | ||
|
61683B
|
61683B
61683-AA010
Bracket, Rear Wheel Opening, No.1 Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61683-AA010 |
— | ||
|
61707L
|
61707L
61707-AA900
Panel Sub-Assy, Roof Side, Inner Front Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61707-AA900 |
— | ||
|
61711
|
61711
61711-AA040
Panel, Roof Side, Outer Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61711-AA040 |
— | ||
|
61735A
|
61735A
61735-AA020
Panel, Roof Side, Inner Rear Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61735-AA020 |
— | ||
|
61815C
|
61815C
61815-AC030 Cover, Roof Side, Inner No.2 Rh[07.2003 - 05.2006] ACV30,MCV31..CP..5FC..SLE SRS AIR BAG-W/CURTAIN; ACV30,MCV31..CP..(5F,5FC)..SE SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE)&SRS AIR BAG-W/CURTAIN |
61815-AC030 |
US $6.55 |
||
|
61819
|
61819
61817-AA010
Cover, Roof Side, Inner Lower Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61817-AA010 |
— | ||
| replacement | |||||
|
61819
|
61819
61824-12060 Plate, Noise Control, No.1[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
61824-12060 |
US $2.91 |
||
|
61825A
|
61825A
61825-AA020
Plate, Noise Control, No.2
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
61825-AA020 |
— | ||
|
62939A
|
62939A
62939-06010
Silencer, Quarter Vent
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC NO.1 |
62939-06010 |
— | ||
|
62939A
|
62939A
62939-32030 Silencer, Quarter Vent[07.2003 - 05.2006] ACV30,MCV31..5F,5FC NO.2 |
62939-32030 |
US $5.10 |
||
|
62939A
|
62939A
62939-AC010
Silencer, Quarter Vent
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) NO.3 |
62939-AC010 |
— | ||
|
64116B
|
64116B
64201-AA903
Reinforcement, Upper Back, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
64201-AA903 |
— | ||
|
65536B
|
65536B
65536-AA020
Patch, Side Panel Reinforcement, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
65536-AA020 |
— | ||
|
67812A
|
67812A
67812-AA040
Pad, Quarter Panel Silencer
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
67812-AA040 |
— | ||
|
67841C
|
67841C
67841-AA040
Cover, Quarter Service Hole, Rh
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
67841-AA040 |
— | ||
|
67485AA010
|
67485AA010
67485-AA010
Seal, Rear Door Division Bar, Inside, Rh
|
67485-AA010 |
— | ||
| replacement | |||||
|
67485AA010
|
67485AA010
61824-12060 Plate, Noise Control, No.1 |
61824-12060 |
US $2.91 |
||
|
90119A0006
|
90119A0006
90119-A0006
New Genuine Part
|
90119-A0006 |
— | ||
|
90178A0008
|
90178A0008
90178-A0008
New Genuine Part
|
90178-A0008 |
— | ||
|
9008017150
|
9008017150
90080-17150
New Genuine Part
|
90080-17150 |
— | ||
|
9008411041
|
9008411041
90084-11041
New Genuine Part
|
90084-11041 |
— | ||
|
9008454015
|
9008454015
90084-54015
New Genuine Part
|
90084-54015 |
— | ||
|
9018906047
|
9018906047
90189-06047 GROMMET |
90189-06047 |
from US $0.59 |
||
