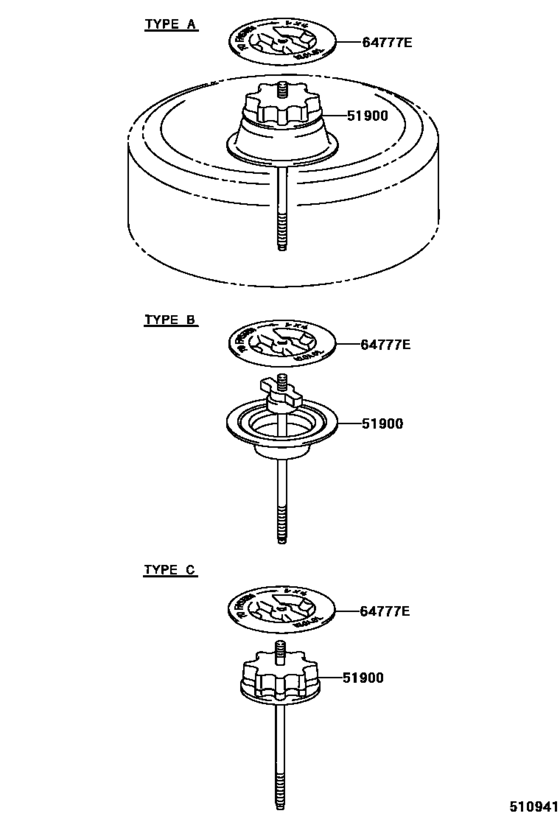

Spare Wheel Carrier ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900
|
51900
51900-33040 Carrier Assy, Spare Wheel[07.2003 - 12.2004] ACV30,MCV31 TYPE A:REFER ILLUST. |
51900-33040 |
US $14.71 |
||
| replacement | |||||
|
51900
|
51900
51931-33170 Carrier Assy, Spare Wheel[07.2003 - 12.2004] ACV30,MCV31 TYPE A:REFER ILLUST. |
51931-33170 |
US $14.71 |
||
|
51900
|
51900
51900-33050 Carrier Assy, Spare WheelSPARE WHEEL [07.2003 - 05.2006] MCV31;ACV30..(5F,5FC)..SE SPARE TIRE-WITH(ALMINUM),TYPE B:REFER ILLUST. |
51900-33050 |
US $13.40 |
||
|
51900
|
51900
51931-33170 Carrier Assy, Spare Wheel[01.2005 - 05.2006] ACV30,MCV31..5F,5FC TYPE C:REFER ILLUST. |
51931-33170 |
US $14.71 |
||
|
64777E
|
64777E
64777-32030 Cover Sub-Assy, Spare Wheel[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
64777-32030 |
from US $9.27 |
||
