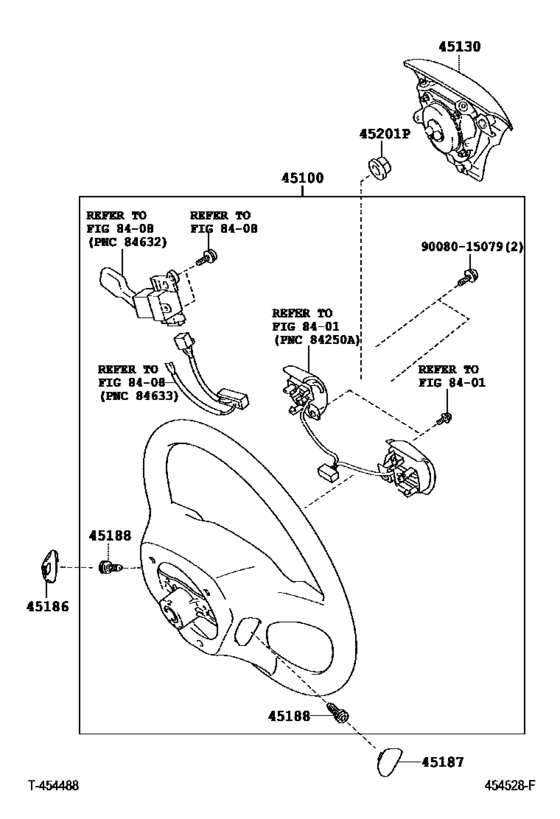

Steering Wheel ([05.2006 - ] 3-SPOKE (0605- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-06820-A0
Wheel Assy, Steering
[07.2003 - 07.2004] MCV31..SLE 3-SPOKE,LEATHER,IVORY,TRIM0# |
45100-06820-A0 |
— | ||
| replacement | |||||
|
45100
|
45100
45100-06821-A0
Wheel Assy, Steering
[07.2003 - 07.2004] MCV31..SLE 3-SPOKE,LEATHER,IVORY,TRIM0# |
45100-06821-A0 |
— | ||
|
45100
|
45100
45100-06820-B0
Wheel Assy, Steering
[07.2003 - 07.2004] MCV31..SLE 3-SPOKE,LEATHER,DK. STONE,TRIM1# |
45100-06820-B0 |
— | ||
| replacements | |||||
|
45100
|
45100
45100-06821-B0
Wheel Assy, Steering
[07.2003 - 07.2004] MCV31..SLE 3-SPOKE,LEATHER,DK. STONE,TRIM1# |
45100-06821-B0 |
— | ||
|
45100
|
45100
45100-06821-B1
Wheel Assy, Steering
[07.2003 - 07.2004] MCV31..SLE 3-SPOKE,LEATHER,DK. STONE,TRIM1# |
45100-06821-B1 |
— | ||
|
45100
|
45100
45100-06821-A0
Wheel Assy, Steering
[08.2004 - 05.2006] MCV31..SLE 3-SPOKE,LEATHER,IVORY,TRIM0# |
45100-06821-A0 |
— | ||
|
45100
|
45100
45100-06821-B0
Wheel Assy, Steering
[08.2004 - 05.2006] MCV31..SLE 3-SPOKE,LEATHER,DK. STONE,TRIM1# |
45100-06821-B0 |
— | ||
|
45100
|
45100
45100-06K90-A0
Wheel Assy, Steering
[05.2006 - 08.2008] MCV31..CP..SLE 3-SPOKE,LEATHER,IVORY,TRIM0#; MCV31..CP..SE 3-SPOKE,LEATHER,SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER, IVORY,TRIM0#; MCV31..CP..SE 3-SPOKE,LEATHER,AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,IVORY,TRIM0# |
45100-06K90-A0 |
— | ||
|
45100
|
45100
45100-06K90-B0
Wheel Assy, Steering
[05.2006 - 08.2008] MCV31..CP..SLE 3-SPOKE,LEATHER,DK. STONE,TRIM1#; MCV31..CP..SE 3-SPOKE,LEATHER,SPORT PACKAGE(HID HEAD LAMP)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER, DK. STONE,TRIM10; MCV31..CP..SE 3-SPOKE,LEATHER,AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER,DK. |
45100-06K90-B0 |
— | ||
|
45130
|
45130
45130-06150-A0
Button Assy, Horn
[07.2003 - 07.2004] ACV30,MCV31 IVORY,TRIM0# |
45130-06150-A0 |
— | ||
| replacement | |||||
|
45130
|
45130
45130-06152-A0
Button Assy, Horn
[07.2003 - 07.2004] ACV30,MCV31 IVORY,TRIM0# |
45130-06152-A0 |
— | ||
|
45130
|
45130
45130-06150-B0
Button Assy, Horn
[07.2003 - 07.2004] ACV30,MCV31..SE DK. STONE,TRIM10; ACV30,MCV31..SLE DK. STONE,TRIM1# |
45130-06150-B0 |
— | ||
| replacement | |||||
|
45130
|
45130
45130-06152-B0
Button Assy, Horn
[07.2003 - 07.2004] ACV30,MCV31..SE DK. STONE,TRIM10; ACV30,MCV31..SLE DK. STONE,TRIM1# |
45130-06152-B0 |
— | ||
|
45130
|
45130
45130-06152-A0
Button Assy, Horn
[08.2004 - 05.2006] MCV31..SLE;ACV30..5F,5FC;MCV31..CP..SE IVORY,TRIM0# |
45130-06152-A0 |
— | ||
|
45130
|
45130
45130-06152-B0
Button Assy, Horn
[08.2004 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..CP..(5F,5FC)..SE DK. STONE,TRIM10 |
45130-06152-B0 |
— | ||
|
45130
|
45130
45130-06330-A0
Button Assy, Horn
[05.2006 - 08.2008] ACV30,MCV31..CP IVORY,TRIM0# |
45130-06330-A0 |
— | ||
|
45130
|
45130
45130-06330-B0
Button Assy, Horn
[05.2006 - 08.2008] ACV30,MCV31..CP..SE DK. STONE,TRIM10; ACV30,MCV31..CP..SLE DK. STONE,TRIM1# |
45130-06330-B0 |
— | ||
|
45186
|
45186
45186-06130-A0
Cover, Steering Wheel, Lower No.2
[05.2006 - 08.2008] ACV30,MCV31..CP IVORY,TRIM0# |
45186-06130-A0 |
— | ||
|
45186
|
45186
45186-06130-B1
Cover, Steering Wheel, Lower No.2
[05.2006 - 08.2008] ACV30,MCV31..CP..SE DK. STONE,TRIM10; ACV30,MCV31..CP..SLE DK. STONE,TRIM1# |
45186-06130-B1 |
— | ||
|
45186
|
45186
45186-0E010-A0
Cover, Steering Wheel, Lower No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
45186-0E010-A0 |
— | ||
|
45186
|
45186
45186-0E010-B0
Cover, Steering Wheel, Lower No.2
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
45186-0E010-B0 |
— | ||
|
45187
|
45187
45187-06080-A0
Cover, Steering Wheel, Lower No.3
[05.2006 - 08.2008] ACV30,MCV31..CP IVORY,TRIM0# |
45187-06080-A0 |
— | ||
|
45187
|
45187
45187-06080-B1
Cover, Steering Wheel, Lower No.3
[05.2006 - 08.2008] ACV30,MCV31..CP..SE DK. STONE,TRIM10; ACV30,MCV31..CP..SLE DK. STONE,TRIM1# |
45187-06080-B1 |
— | ||
|
45187
|
45187
45187-0E010-A0
Cover, Steering Wheel, Lower No.3
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC IVORY,TRIM0# |
45187-0E010-A0 |
— | ||
|
45187
|
45187
45187-0E010-B0
Cover, Steering Wheel, Lower No.3
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE DK. STONE,TRIM1#; ACV30,MCV31..(5F,5FC)..SE DK. STONE,TRIM10 |
45187-0E010-B0 |
— | ||
|
45188
|
45188
45188-07010 Screw, Steering Wheel Pad Attaching[07.2003 - 05.2006] ACV30,MCV31 L=18.5 |
45188-07010 |
US $2.04 |
||
|
45201P
|
45201P
90080-17234 Nut, Steering Wheel SetSTEERING WHEEL SET [07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90080-17234 |
US $1.60 |
||
|
9008015079
|
9008015079
90080-15079 SCREW WWASHER |
90080-15079 |
US $0.73 |
||
