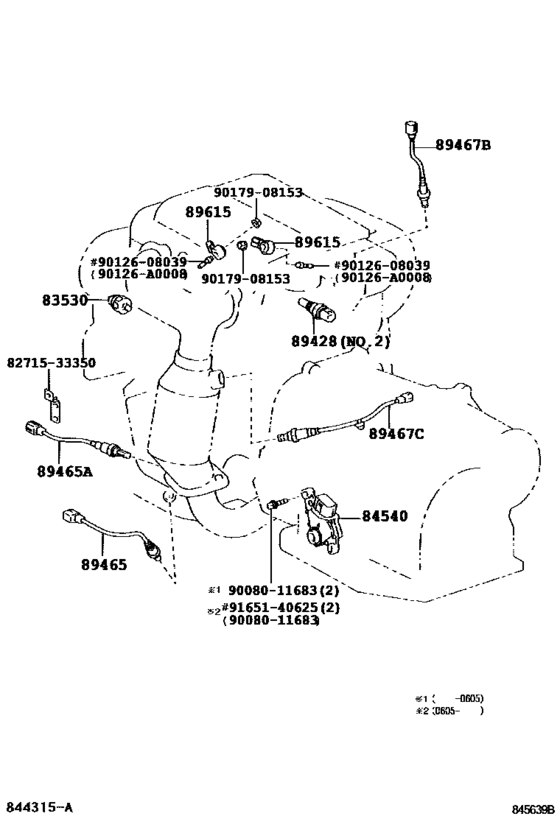

Switch & Relay & Computer ([07.2003 - ] ENGINE & TRANSMISSION (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.2006 - 05.2006] ACV30,MCV31 DENSO |
83530-0E010 |
US $51.25 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[07.2003 - 03.2006] ACV30,MCV31 DENSO |
83530-28020 |
from US $23.56 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [07.2003 - 03.2006] ACV30,MCV31 DENSO |
83530-60020 |
from US $23.22 |
||
|
83530
|
83530
83530-AA011 Switch Assy, Oil Pressure (For Engine)[07.2003 - 05.2006] ACV30,MCV31 FASCO |
83530-AA011 |
US $14.56 |
||
| replacement | |||||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[07.2003 - 05.2006] ACV30,MCV31 FASCO |
83530-0E010 |
US $51.25 |
||
|
84540
|
84540
84540-0E010
Switch Assy, Neutral Start
[07.2003 - 05.2006] ACV30,MCV31..5FC |
84540-0E010 |
— | ||
|
84540
|
84540
84540-48010 Switch Assy, Neutral Start[05.2006 - 12.2008] MCV31 (J) |
84540-48010 |
from US $121.13 |
||
|
89428
|
89428
89428-21010 Switch, Temperature Detect[07.2003 - 05.2006] MCV31 NO.1 |
89428-21010 |
from US $86.55 |
||
|
89428
|
89428
89428-41010 Switch, Temperature Detect[07.2003 - 05.2006] MCV31 NO.2 |
89428-41010 |
from US $79.90 |
||
|
89465
|
89465
89465-06130
Sensor, Oxygen
[07.2003 - 05.2006] MCV31 |
89465-06130 |
— | ||
|
89465A
|
89465A
89465-06140
Sensor, Oxygen
[07.2003 - 05.2006] MCV31 |
89465-06140 |
— | ||
|
89467B
|
89467B
89467-06010
Sensor, Air Fuel Ratio
[07.2004 - 05.2006] MCV31 (L) |
89467-06010 |
— | ||
|
89467B
|
89467B
89467-33100
Sensor, Air Fuel Ratio
[07.2003 - 07.2004] MCV31 |
89467-33100 |
— | ||
|
89467C
|
89467C
89467-06040
Sensor, Air Fuel Ratio
[07.2004 - 05.2006] MCV31 (L) |
89467-06040 |
— | ||
|
89467C
|
89467C
89467-33110 Sensor, Air Fuel Ratio[07.2003 - 06.2004] MCV31 |
89467-33110 |
US $256.22 |
||
|
89615
|
89615
89615-06010
Sensor, Knock Control
[06.2004 - 05.2006] ACV30,MCV31..5FC (L) |
89615-06010 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[07.2003 - 06.2004] MCV31 |
89615-20090 |
from US $39.82 |
||
|
90126A0008
|
90126A0008
90126-A0008
New Genuine Part
|
90126-A0008 |
— | ||
|
8271533350
|
8271533350
82715-33350 Bracket,wiring Harness Clamp |
82715-33350 |
US $6.41 |
||
|
9008011683
|
9008011683
90080-11683
New Genuine Part
|
90080-11683 |
— | ||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $4.30 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.76 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
