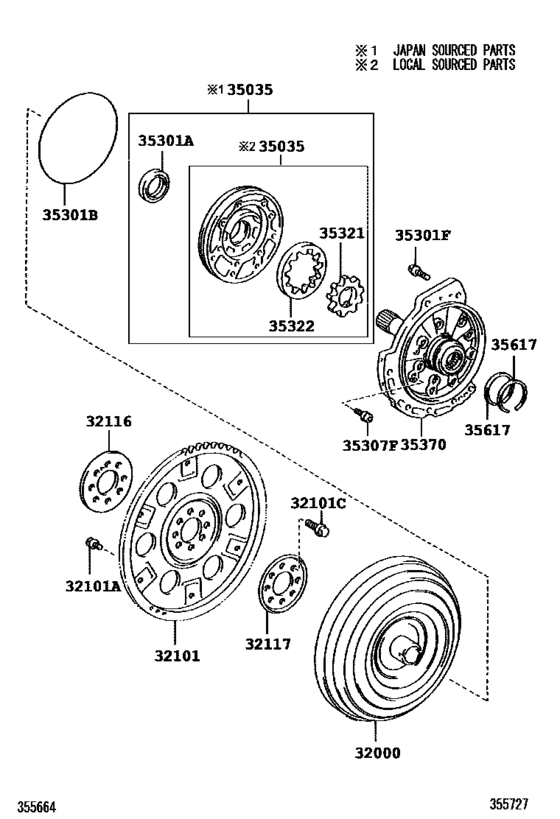

Torque Converter, Front Oil Pump & Chain (Atm) ([07.2003 - ] U151E (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-08010
Converter Assy, Torque
[07.2003 - 05.2006] MCV31 (L) |
32000-08010 |
— | ||
|
32000
|
32000
32000-48040 Converter Assy, TorqueTORQUE [01.2005 - 05.2006] MCV31 (J) |
32000-48040 |
from US $1,188.55 |
||
|
32101
|
32101
32101-06010
Gear Sub-Assy, Drive Plate & Ring
[07.2003 - 05.2006] MCV31 (L) |
32101-06010 |
— | ||
| replacement | |||||
|
32101
|
32101
32101-48010 Gear Sub-Assy, Drive Plate & Ring[07.2003 - 05.2006] MCV31 (L) |
32101-48010 |
from US $174.72 |
||
|
32101
|
32101
32101-48010 Gear Sub-Assy, Drive Plate & Ring[07.2003 - 05.2006] MCV31 (J) |
32101-48010 |
from US $174.72 |
||
|
32101A
|
32101A
90109-09001 Bolt(For Drive Plate & Torque Converter Setting)[07.2003 - 05.2006] ACV30,MCV31..5FC *9-1.25PX12.4-7.3,GREEN |
90109-09001 |
from US $0.76 |
||
|
32101A
|
32101A
90119-09025 Bolt(For Drive Plate & Torque Converter Setting)[07.2003 - 05.2006] ACV30,MCV31..5FC *9-1.25PX12.4-8.4,YELLOW |
90119-09025 |
from US $0.76 |
||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[07.2003 - 05.2005] MCV31 *10-1.25PX18-13 |
90105-10048 |
from US $1.08 |
||
|
32101C
|
32101C
90105-A0022
Bolt, Hexagon(For Drive Plate Setting)
[05.2005 - 05.2006] MCV31 *10-1.25PX18-13,(L) |
90105-A0022 |
— | ||
| replacement | |||||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[05.2005 - 05.2006] MCV31 *10-1.25PX18-13,(L) |
90105-10048 |
from US $1.08 |
||
|
32116
|
32116
32116-32020 Spacer, Drive Plate, Front[07.2003 - 05.2006] MCV31 |
32116-32020 |
US $14.85 |
||
|
32117
|
32117
32117-32020 Spacer, Drive Plate, Rear[07.2003 - 05.2006] MCV31 |
32117-32020 |
US $10.31 |
||
|
35035
|
35035
35035-08010
Body Sub-Assy, Fr Oil Pump & Gear
[07.2003 - 05.2006] MCV31 (L) |
35035-08010 |
— | ||
|
35035
|
35035
35035-33020 Body Sub-Assy, Fr Oil Pump & Gear[01.2005 - 05.2006] MCV31 (J) |
35035-33020 |
US $227.14 |
||
| replacement | |||||
|
35035
|
35035
35035-12080 Body Sub-Assy, Fr Oil Pump & Gear[01.2005 - 05.2006] MCV31 (J) |
35035-12080 |
US $227.14 |
||
|
35301A
|
35301A
90080-31068
Seal, Oil (For Front Oil Pump)
[07.2003 - 05.2006] MCV31 (L) |
90080-31068 |
— | ||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[01.2005 - 05.2006] MCV31 (J) |
90311-38083 |
from US $5.20 |
||
|
35301B
|
35301B
90080-30078
Ring, O (For Front Oil Pump Body)
[07.2003 - 05.2006] MCV31 (L) |
90080-30078 |
— | ||
|
35301B
|
35301B
90301-99099 Ring, O (For Front Oil Pump Body)[01.2005 - 05.2006] MCV31 (J) |
90301-99099 |
from US $5.47 |
||
|
35301F
|
35301F
90080-10236
Bolt (For Front Oil Pump Setting)
[07.2003 - 05.2006] MCV31 *8-1.25PX28-28,TOYOTA:REFER 35-01 |
90080-10236 |
— | ||
|
35301F
|
35301F
90105-08198 Bolt (For Front Oil Pump Setting)[01.2005 - 05.2006] MCV31 *8-1.25PX28-28,AISIN:REFER 35-01 |
90105-08198 |
US $1.16 |
||
|
35307F
|
35307F
90080-14044
Bolt (For Stator Shaft)
[07.2003 - 05.2006] MCV31 (L) |
90080-14044 |
— | ||
|
35307F
|
35307F
90148-60027 Bolt (For Stator Shaft)[01.2005 - 05.2006] MCV31 (J) |
90148-60027 |
US $0.73 |
||
|
35321
|
35321
35321-08010
Gear, Front Oil Pump Drive
[07.2003 - 05.2006] MCV31 T=11.715,MARK A,(L) |
35321-08010 |
— | ||
|
35321
|
35321
35321-08020
Gear, Front Oil Pump Drive
[07.2003 - 05.2006] MCV31 T=11.715,MARK B,(L) |
35321-08020 |
— | ||
|
35321
|
35321
35321-08030
Gear, Front Oil Pump Drive
[07.2003 - 05.2006] MCV31 T=11.715,MARK C,(L) |
35321-08030 |
— | ||
|
35321
|
35321
35321-08040
Gear, Front Oil Pump Drive
[07.2003 - 05.2006] MCV31 T=11.715,MARK D,(L) |
35321-08040 |
— | ||
|
35321
|
35321
35321-08050
Gear, Front Oil Pump Drive
[07.2003 - 05.2006] MCV31 T=11.715,MARK E,(L) |
35321-08050 |
— | ||
|
35321
|
35321
35321-33060 Gear, Front Oil Pump Drive[01.2005 - 05.2006] MCV31 T=11.715,MARK A,(J) |
35321-33060 |
US $43.68 |
||
|
35321
|
35321
35321-33070 Gear, Front Oil Pump Drive[01.2005 - 05.2006] MCV31 T=11.715,MARK B,(J) |
35321-33070 |
US $43.68 |
||
|
35321
|
35321
35321-33080 Gear, Front Oil Pump Drive[01.2005 - 05.2006] MCV31 T=11.715,MARK C,(J) |
35321-33080 |
US $43.68 |
||
|
35321
|
35321
35321-33090 Gear, Front Oil Pump Drive[01.2005 - 05.2006] MCV31 T=11.715,MARK D,(J) |
35321-33090 |
US $43.68 |
||
|
35321
|
35321
35321-33100 Gear, Front Oil Pump Drive[01.2005 - 05.2006] MCV31 T=11.715,MARK E,(J) |
35321-33100 |
US $43.68 |
||
|
35322
|
35322
35322-08010
Gear, Front Oil Pump Driven
[07.2003 - 05.2006] MCV31 T=11.715,MARK A,(L) |
35322-08010 |
— | ||
|
35322
|
35322
35322-08020
Gear, Front Oil Pump Driven
[07.2003 - 05.2006] MCV31 T=11.715,MARK B,(L) |
35322-08020 |
— | ||
|
35322
|
35322
35322-08030
Gear, Front Oil Pump Driven
[07.2003 - 05.2006] MCV31 T=11.715,MARK C,(L) |
35322-08030 |
— | ||
|
35322
|
35322
35322-08040
Gear, Front Oil Pump Driven
[07.2003 - 05.2006] MCV31 T=11.715,MARK D,(L) |
35322-08040 |
— | ||
|
35322
|
35322
35322-08050
Gear, Front Oil Pump Driven
[07.2003 - 05.2006] MCV31 T=11.715,MARK E,(L) |
35322-08050 |
— | ||
|
35322
|
35322
35322-33060 Gear, Front Oil Pump Driven[01.2005 - 05.2006] MCV31 T=11.715,MARK A,(J) |
35322-33060 |
US $43.68 |
||
|
35322
|
35322
35322-33070 Gear, Front Oil Pump Driven[01.2005 - 05.2006] MCV31 T=11.715,MARK B,(J) |
35322-33070 |
US $43.68 |
||
|
35322
|
35322
35322-33080 Gear, Front Oil Pump Driven[01.2005 - 05.2006] MCV31 T=11.715,MARK C,(J) |
35322-33080 |
US $43.68 |
||
|
35322
|
35322
35322-33090 Gear, Front Oil Pump Driven[01.2005 - 05.2006] MCV31 T=11.715,MARK D,(J) |
35322-33090 |
US $43.68 |
||
|
35322
|
35322
35322-33100 Gear, Front Oil Pump Driven[01.2005 - 05.2006] MCV31 T=11.715,MARK E,(J) |
35322-33100 |
US $43.68 |
||
|
35370
|
35370
35370-06010
Shaft Assy, Stator
[07.2003 - 05.2006] MCV31 (L) |
35370-06010 |
— | ||
|
35370
|
35370
35370-28010 Shaft Assy, Stator[01.2005 - 05.2006] MCV31 (J) |
35370-28010 |
US $221.31 |
||
| replacement | |||||
|
35370
|
35370
35370-12110 Shaft Assy, Stator[01.2005 - 05.2006] MCV31 (J) |
35370-12110 |
from US $200.93 |
||
|
35617
|
35617
35613-21010 Ring, Forward Clutch Dram Oil Seal[07.2003 - 05.2006] ACV30,MCV31..5FC |
35613-21010 |
from US $1.56 |
||
