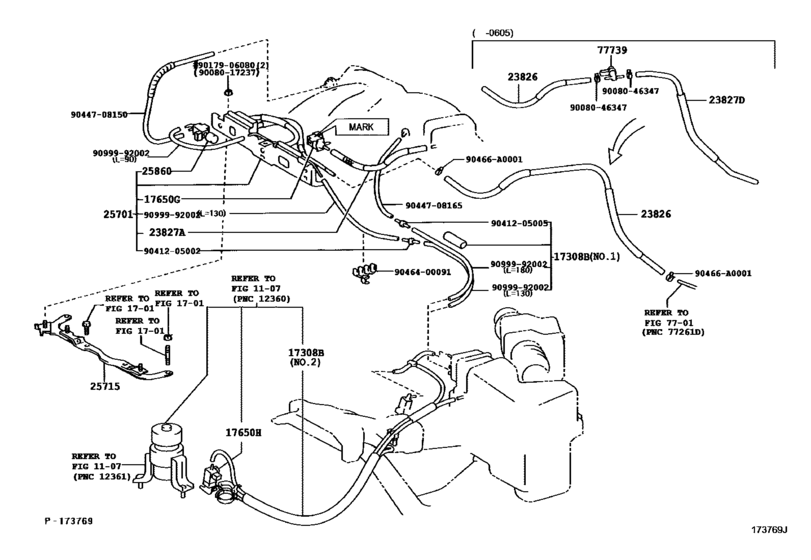

Vacuum Piping ([07.2003 - ] (0307- )3MZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17308B
|
17308B
17308-0A070
Hose Sub-Assy, Vacuum
[07.2003 - 05.2006] 3MZFE..MCV31 NO.2 |
17308-0A070 |
— | ||
|
17308B
|
17308B
17308-20170 Hose Sub-Assy, Vacuum[07.2003 - 05.2006] 3MZFE..MCV31 NO.1 |
17308-20170 |
US $33.05 |
||
|
17650G
|
17650G
90910-12259 Valve, Duty Vacuum Switching[07.2003 - 05.2006] 3MZFE..MCV31 MARK 90910-12259 |
90910-12259 |
from US $22.71 |
||
|
17650G
|
17650G
90910-12272
Valve, Duty Vacuum Switching
[10.2003 - 05.2006] 3MZFE..MCV31 MARK 90910-12272 |
90910-12272 |
— | ||
| replacement | |||||
|
17650G
|
17650G
90910-12259 Valve, Duty Vacuum Switching[10.2003 - 05.2006] 3MZFE..MCV31 MARK 90910-12272 |
90910-12259 |
from US $22.71 |
||
|
17650H
|
17650H
90910-12204 Valve, Duty Vacuum Switching[07.2003 - 05.2006] 3MZFE..MCV31 |
90910-12204 |
from US $22.71 |
||
|
23826
|
23826
23826-0A051
Hose, Fuel Vapor Feed, No.1
[07.2003 - 05.2006] 3MZFE..MCV31 |
23826-0A051 |
— | ||
|
23826
|
23826
23826-0A090
Hose, Fuel Vapor Feed, No.1
[05.2006 - 08.2008] 3MZFE..MCV31..CP |
23826-0A090 |
— | ||
|
23827A
|
23827A
23827-20060 Hose, Fuel Vapor Feed, No.2[07.2003 - 05.2006] 3MZFE..MCV31 |
23827-20060 |
US $27.96 |
||
|
23827D
|
23827D
23827-0A041
Hose, Fuel Vapor Feed, No.2
[07.2003 - 05.2006] 3MZFE..MCV31 |
23827-0A041 |
— | ||
|
25701
|
25701
25701-20220 Valve Set, Emission ControlEMISSION CONTROL [07.2003 - 05.2006] 3MZFE..MCV31 |
25701-20220 |
US $314.50 |
||
|
25715
|
25715
25715-20020
Bracket, Emission Control Valve
[07.2003 - 07.2004] 3MZFE..MCV31 |
25715-20020 |
— | ||
| replacement | |||||
|
25715
|
25715
25715-20021
Bracket, Emission Control Valve
[07.2003 - 07.2004] 3MZFE..MCV31 |
25715-20021 |
— | ||
|
25715
|
25715
25715-20021
Bracket, Emission Control Valve
[07.2004 - 05.2006] 3MZFE..MCV31 |
25715-20021 |
— | ||
|
25860
|
25860
25860-62010 Valve Assy, Vacuum Switching[07.2003 - 05.2006] 3MZFE..MCV31 |
25860-62010 |
from US $64.14 |
||
|
77739
|
77739
77739-06010
Valve, Evap Service Port
[07.2003 - 05.2006] MCV31; ACV30..5F,5FC |
77739-06010 |
— | ||
|
90466A0001
|
90466A0001
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1) |
90466-A0001 |
US $3.15 |
||
|
9008017237
|
9008017237
90080-17237
New Genuine Part
|
90080-17237 |
— | ||
|
9008046347
|
9008046347
90080-46347
Clip(For Fuel Vapor Feed Hose, No.1)
|
90080-46347 |
— | ||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
|
9041205002
|
9041205002
90412-05002 Way, 2(For Fuel Expansion Tank) |
90412-05002 |
US $4.30 |
||
|
9041205005
|
9041205005
90412-05005 New Genuine Part |
90412-05005 |
US $5.24 |
||
|
9044708150
|
9044708150
90447-08150 New Genuine Part |
90447-08150 |
US $16.77 |
||
|
9044708165
|
9044708165
90447-08165 New Genuine Part |
90447-08165 |
US $15.58 |
||
|
9046400091
|
9046400091
90464-00091
New Genuine Part
|
90464-00091 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
