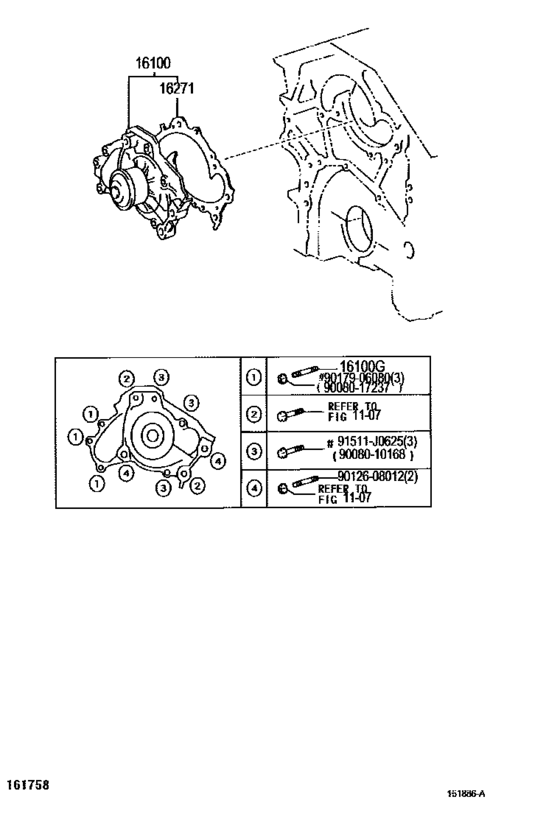

Water Pump ([07.2003 - ] (0307- )3MZFE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-09070
Pump Assy, Engine Water
[07.2003 - 05.2006] 3MZFE..MCV31 |
16100-09070 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-29085 Pump Assy, Engine Water[07.2003 - 05.2006] 3MZFE..MCV31 |
16100-29085 |
from US $174.80 |
||
|
16100
|
16100
16100-29085 Pump Assy, Engine Water[12.2006 - 08.2008] 3MZFE..MCV31..CP |
16100-29085 |
from US $174.80 |
||
|
16100G
|
16100G
90116-06144 Bolt, Stud(For Water Pump Set)[07.2003 - 05.2006] 3MZFE..MCV31 |
90116-06144 |
US $2.15 |
||
|
16271
|
16271
16271-20020 Gasket, Water Pump[07.2003 - 05.2006] 3MZFE..MCV31 |
16271-20020 |
from US $7.64 |
||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.76 |
||
|
9008010168
|
9008010168
90080-10168
New Genuine Part
|
90080-10168 |
— | ||
|
9008017237
|
9008017237
90080-17237
New Genuine Part
|
90080-17237 |
— | ||
|
9012608012
|
9012608012
90126-08012 STUD HEX LOBULAR |
90126-08012 |
US $10.93 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
