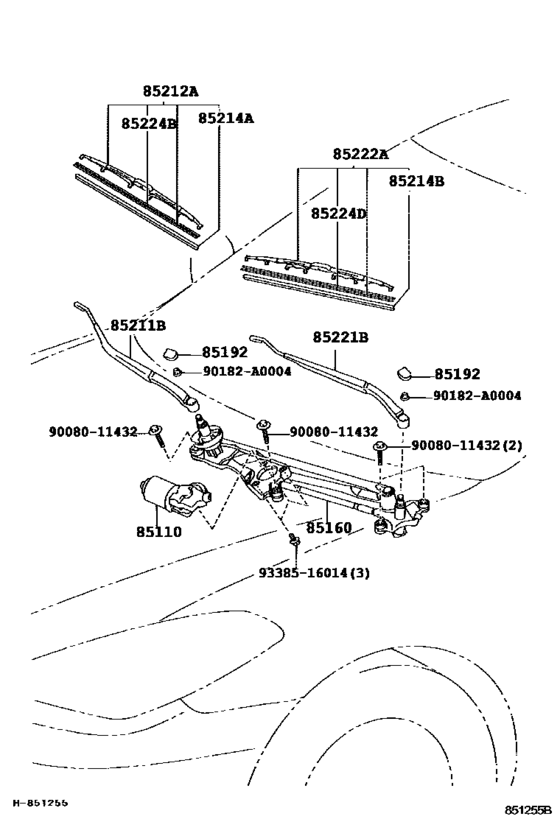

Windshield Wiper ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-AA050
Motor Assy, Windshield Wiper
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85110-AA050 |
— | ||
|
85160
|
85160
85150-AA050
Link Assy, Windshield Wiper
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85150-AA050 |
— | ||
|
85192
|
85192
85292-AA020
Cover, Windshield Wiper Arm
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85292-AA020 |
— | ||
|
85211B
|
85211B
85211-AA060
Arm, Front Wiper, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85211-AA060 |
— | ||
|
85212A
|
85212A
85212-0C011 Blade, Fr Wiper, Rh[01.2004 - 05.2006] ACV30,MCV31..5F,5FC |
85212-0C011 |
US $31.74 |
||
|
85212A
|
85212A
85212-AA080
Blade, Fr Wiper, Rh
[07.2003 - 01.2004] ACV30,MCV31 |
85212-AA080 |
— | ||
|
85214A
|
85214A
85214-02150 Rubber, Wiper, Rh[07.2003 - 05.2004] ACV30,MCV31 |
85214-02150 |
US $12.38 |
||
|
85214A
|
85214A
85214-0C011 Rubber, Wiper, Rh[05.2004 - 05.2006] ACV30,MCV31..5F,5FC |
85214-0C011 |
US $11.65 |
||
| replacement | |||||
|
85214A
|
85214A
85214-0C012 Rubber, Wiper, RhWIPER, RH [05.2004 - 05.2006] ACV30,MCV31..5F,5FC |
85214-0C012 |
US $12.07 |
||
|
85214B
|
85214B
85214-02150 Rubber, Wiper, Rh[05.2004 - 05.2006] ACV30,MCV31..5F,5FC |
85214-02150 |
US $12.38 |
||
|
85214B
|
85214B
85214-0C011 Rubber, Wiper, Rh[01.2004 - 05.2004] MCV31;ACV30..4FC,5F |
85214-0C011 |
US $11.65 |
||
| replacement | |||||
|
85214B
|
85214B
85214-0C012 Rubber, Wiper, RhWIPER, RH [01.2004 - 05.2004] MCV31;ACV30..4FC,5F |
85214-0C012 |
US $12.07 |
||
|
85214B
|
85214B
85214-AA110
Rubber, Wiper, Lh
[07.2003 - 01.2004] ACV30,MCV31 |
85214-AA110 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-0C012 Rubber, Wiper, RhWIPER, RH [07.2003 - 01.2004] ACV30,MCV31 |
85214-0C012 |
US $12.07 |
||
|
85221B
|
85221B
85221-AA060
Arm, Front Wiper, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85221-AA060 |
— | ||
|
85222A
|
85222A
85222-AA070
Blade, Fr Wiper, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
85222-AA070 |
— | ||
|
85224B
|
85224B
85224-AA030
Plate, Wiper Rubber Backing, No.1
[07.2003 - 05.2006] ACV30,MCV31 |
85224-AA030 |
— | ||
|
85224D
|
85224D
85224-08020
Plate, Wiper Rubber Backing, No.3
[07.2003 - 05.2006] ACV30,MCV31 |
85224-08020 |
— | ||
|
90182A0004
|
90182A0004
90182-A0004
Nut (For Front Wiper Arm Setting)
|
90182-A0004 |
— | ||
| replacement | |||||
|
90182A0004
|
90182A0004
90182-A0017
Nut (For Front Wiper Arm Setting)
|
90182-A0017 |
— | ||
|
9008011432
|
9008011432
90080-11432
New Genuine Part
|
90080-11432 |
— | ||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
