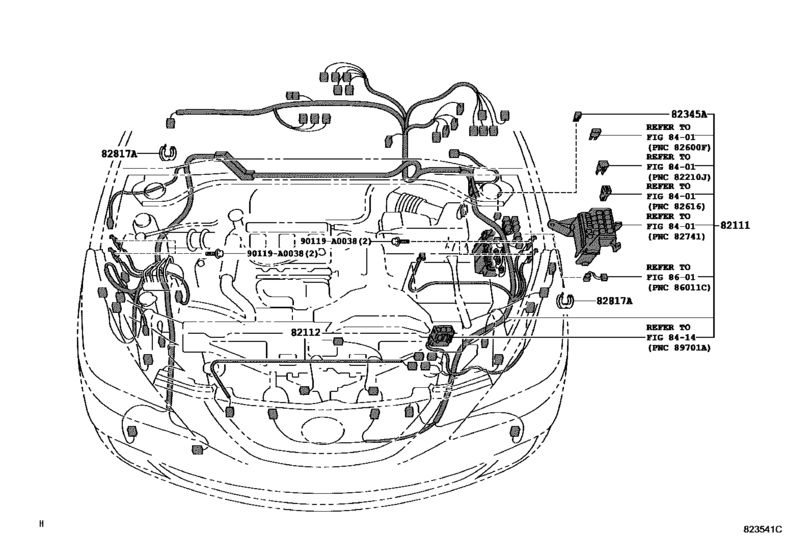

Wiring & Clamp ([07.2003 - ] ENGINE ROOM (0307- )MCV31) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-06M10
Wire, Engine Room Main
[05.2006 - 07.2007] MCV31..SLE |
82111-06M10 |
— | ||
|
82111
|
82111
82111-06M11
Wire, Engine Room Main
[07.2007 - 08.2008] MCV31..SLE |
82111-06M11 |
— | ||
|
82111
|
82111
82111-06M30
Wire, Engine Room Main
[05.2006 - 07.2007] MCV31..SLE VEHICLE STABILITY CONT-WITH |
82111-06M30 |
— | ||
|
82111
|
82111
82111-06M31
Wire, Engine Room Main
[07.2007 - 08.2008] MCV31..SLE VEHICLE STABILITY CONT-WITH |
82111-06M31 |
— | ||
|
82111
|
82111
82111-06M80
Wire, Engine Room Main
[05.2006 - 07.2007] MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
82111-06M80 |
— | ||
|
82111
|
82111
82111-06M81
Wire, Engine Room Main
[07.2007 - 08.2008] MCV31..SLE HEADLAMP-LOW:HID HI:HALOGEN |
82111-06M81 |
— | ||
|
82111
|
82111
82111-06N00
Wire, Engine Room Main
[05.2006 - 07.2007] MCV31..SLE VEHICLE STABILITY CONT-WITH&HEADLAMP-LOW:HID HI:HALOGEN |
82111-06N00 |
— | ||
|
82111
|
82111
82111-06N01
Wire, Engine Room Main
[07.2007 - 08.2008] MCV31..SLE VEHICLE STABILITY CONT-WITH&HEADLAMP-LOW:HID HI:HALOGEN |
82111-06N01 |
— | ||
|
82111
|
82111
82111-AA090
Wire, Engine Room Main
[07.2003 - 05.2006] MCV31..SLE |
82111-AA090 |
— | ||
|
82111
|
82111
82111-AA100
Wire, Engine Room Main
[07.2003 - 05.2006] MCV31..SLE VSC-WITH |
82111-AA100 |
— | ||
|
82112
|
82112
82112-06040
Wire, Engine Room, No.2
[07.2003 - 05.2006] MCV31..SLE |
82112-06040 |
— | ||
|
82345A
|
82345A
82345-32020 Diode[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
82345-32020 |
US $13.45 |
||
|
82817A
|
82817A
82817-06130
Protector, Wiring Harness, No.2
[05.2004 - 05.2006] ACV30,MCV31..5F,5FC |
82817-06130 |
— | ||
|
82817A
|
82817A
82817-2B730 Protector, Wiring Harness, No.1[07.2003 - 05.2004] ACV30..4FC; ACV30,MCV31..5F,5FC |
82817-2B730 |
US $7.28 |
||
|
90119A0038
|
90119A0038
90119-A0038
New Genuine Part
|
90119-A0038 |
— |
