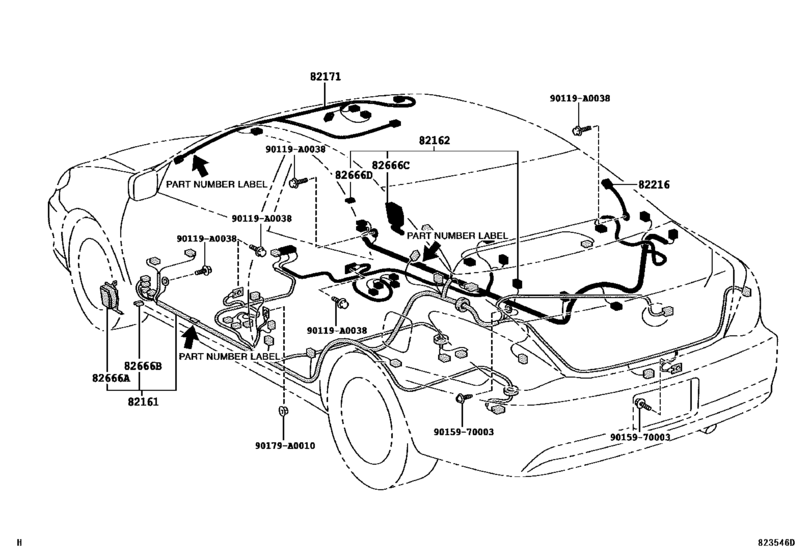

Wiring & Clamp ([07.2003 - ] FLOOR & ROOF (0307- )CP) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82161
|
82161
82161-06J20
Wire, Floor
[05.2006 - 07.2007] ACV30,MCV31..CP..SLE; ACV30,MCV31..CP..SE DRIVER POWER SEAT PACKAGE; ACV30,MCV31..CP..SE DRIVER POWER SEAT + LEATHER PACKAGE; ACV30,MCV31..CP..SE PART NUMBER LABEL=82161-06J20; ACV30,MCV31..CP..SLE PART NUMBER LABEL=82161-06J20 |
82161-06J20 |
— | ||
|
82161
|
82161
82161-06J30
Wire, Floor
[05.2006 - 07.2007] ACV30..SLE DRIVER POWER SEAT + LEATHER PACKAGE&SEAT HEATER-WITH(DRIVER&PASSENGER); MCV31..CP..SLE SEAT HEATER-WITH(DRIVER&PASSENGER); MCV31..CP..SLE PART NUMBER LABEL=82161-06J30; ACV30..SLE PART NUMBER LABEL=82161-06J30 |
82161-06J30 |
— | ||
|
82161
|
82161
82161-AA460
Wire, Floor
[07.2003 - 05.2006] ACV30,MCV31..CP..5FC..SLE; ACV30,MCV31..CP..(5F,5FC)..SE W/POWER SEAT; ACV30,MCV31..CP..(5F,5FC)..SE PART NUMBER LABEL=82161-AA460; ACV30,MCV31..CP..5FC..SLE PART NUMBER LABEL=82161-AA460 |
82161-AA460 |
— | ||
|
82161
|
82161
82161-AA490
Wire, Floor
[07.2003 - 05.2006] ACV30,MCV31..CP..5FC..SLE SRS AIR BAG-W/CURTAIN; ACV30,MCV31..CP..(5F,5FC)..SE W/POWER SEAT&SRS AIR BAG-W/CURTAIN; ACV30,MCV31..CP..(5F,5FC)..SE PART NUMBER LABEL=82161-AA490; ACV30,MCV31..CP..5FC..SLE PART NUMBER LABEL=82161-AA490 |
82161-AA490 |
— | ||
|
82162
|
82162
82162-06A00
Wire, Floor, No.2
[05.2006 - 08.2008] ACV30,MCV31..CP; ACV30,MCV31..CP PART NUMBER LABEL=82162-06A00 |
82162-06A00 |
— | ||
|
82162
|
82162
82162-06A10
Wire, Floor, No.2
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE SEAT HEATER-WITH(DRIVER&PASSENGER); ACV30,MCV31..CP..SLE PART NUMBER LABEL=82162-06A10 |
82162-06A10 |
— | ||
|
82162
|
82162
82162-AA320
Wire, Floor, No.2
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC); ACV30,MCV31..CP..(5F,5FC) PART NUMBER LABEL=82162-AA320 |
82162-AA320 |
— | ||
|
82162
|
82162
82162-AA330
Wire, Floor, No.2
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) SRS AIR BAG-W/CURTAIN; ACV30,MCV31..CP..(5F,5FC) PART NUMBER LABEL=82162-AA330 |
82162-AA330 |
— | ||
|
82162
|
82162
82162-AA350
Wire, Floor, No.2
[07.2003 - 05.2006] ACV30,MCV31..CP..5FC..SLE SEAT HEATER-WITH(D&P SEAT); ACV30,MCV31..CP..5FC..SLE PART NUMBER LABEL=82162-AA350 |
82162-AA350 |
— | ||
|
82162
|
82162
82162-AA360
Wire, Floor, No.2
[07.2003 - 05.2006] ACV30,MCV31..CP..5FC..SLE SEAT HEATER-WITH(D&P SEAT)&SRS AIR BAG-W/CURTAIN; ACV30,MCV31..CP..5FC..SLE PART NUMBER LABEL=82162-AA360 |
82162-AA360 |
— | ||
|
82171
|
82171
82171-06B10
Wire, Roof, No.1
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE; ACV30,MCV31..CP..5FC..SE CANADA SPEC&WITH(MOON ROOF)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER; ACV30,MCV31..CP..SE WITH(MOON ROOF)&AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER; ACV30,MCV31..CP..SE PART NUMBER LABEL=82171-06B1 |
82171-06B10 |
— | ||
|
82171
|
82171
82171-AA200
Wire, Roof, No.1
[07.2003 - 05.2006] ACV30,MCV31..CP..5FC..SLE; ACV30,MCV31..CP..5FC..SE CANADA SPEC&SUN ROOF & MOON ROOF-MOON ROOF(TILT&SLIDE); ACV30,MCV31..CP..5FC..SLE PART NUMBER LABEL=82171-AA200; ACV30,MCV31..CP..5FC..SE PART NUMBER LABEL=82171-AA200 |
82171-AA200 |
— | ||
|
82216
|
82216
82216-AA010
Wire, Rear Window Defogger
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
82216-AA010 |
— | ||
|
82666A
|
82666A
82666-AA060
Holder, Connector No.2
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
82666-AA060 |
— | ||
|
82666B
|
82666B
82666-21040 Holder, Connector[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
82666-21040 |
from US $0.73 |
||
|
82666C
|
82666C
82666-AA050
Holder, Connector No.2
[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
82666-AA050 |
— | ||
|
82666D
|
82666D
82666-21040 Holder, Connector[07.2003 - 05.2006] ACV30,MCV31..CP..(5F,5FC) |
82666-21040 |
from US $0.73 |
||
|
90119A0038
|
90119A0038
90119-A0038
New Genuine Part
|
90119-A0038 |
— | ||
|
90179A0010
|
90179A0010
90179-A0010 Nut, Rear Wiper Link Pivot, No.1 |
90179-A0010 |
US $1.16 |
||
| replacement | |||||
|
90179A0010
|
90179A0010
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
