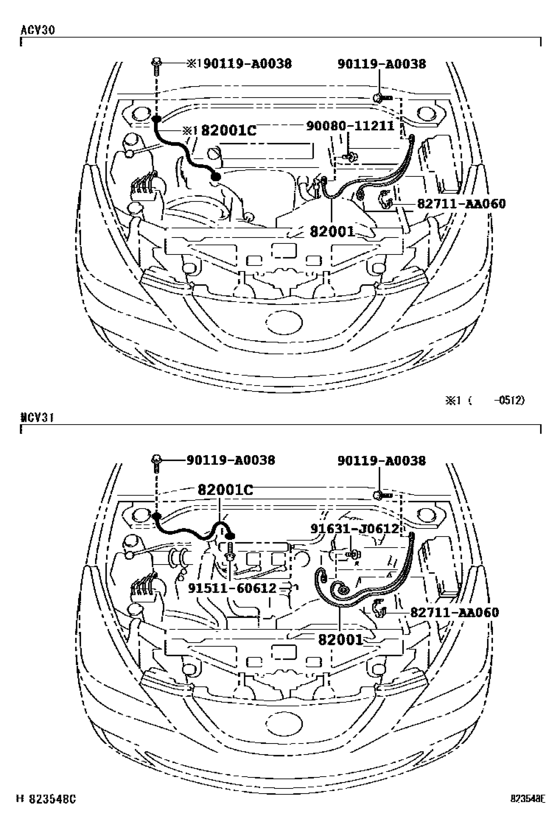

Wiring & Clamp ([07.2003 - ] CABLE BOND (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SLE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90084-98055 Cable, Bond, No.1[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
90084-98055 |
US $10.48 |
||
|
82001C
|
82001C
90980-A7001
Cable, Bond, No.1
[07.2003 - 05.2006] MCV31..CP |
90980-A7001 |
— | ||
|
82711AA060
|
82711AA060
82711-AA060
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-AA060 |
— | ||
|
90119A0038
|
90119A0038
90119-A0038
New Genuine Part
|
90119-A0038 |
— | ||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9008011211
|
9008011211
90080-11211
New Genuine Part
|
90080-11211 |
— | ||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
