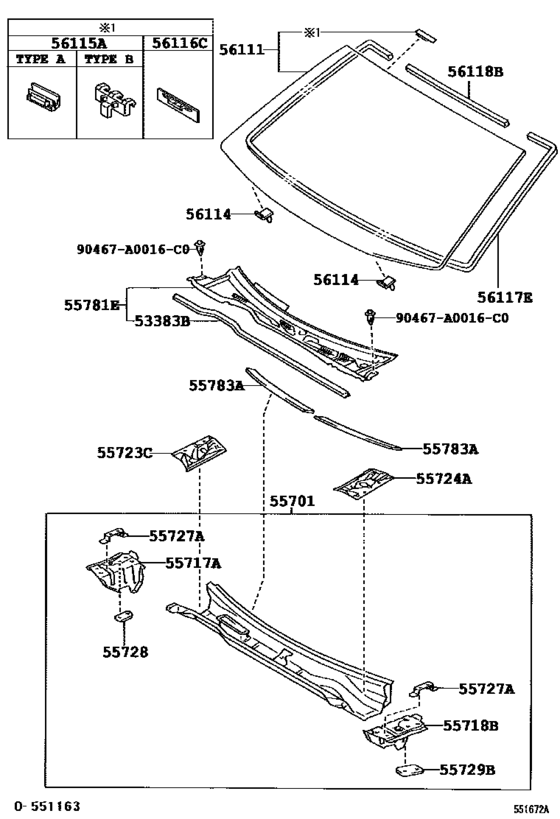

Cowl Panel & Windshield Glass ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-06040
Seal, Hood To Cowl Top
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
53383-06040 |
— | ||
|
55701
|
55701
55700-06190
Panel Sub-Assy, Cowl
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55700-06190 |
— | ||
|
55717A
|
55717A
55717-06050
Panel, Cowl Top Side, Inner Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55717-06050 |
— | ||
|
55718B
|
55718B
55718-06050
Panel, Cowl Top Side, Inner Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55718-06050 |
— | ||
|
55723C
|
55723C
55723-06020
Reinforcement, Cowl Top Side, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55723-06020 |
— | ||
|
55724A
|
55724A
55724-06020
Reinforcement, Cowl Top Side, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55724-06020 |
— | ||
|
55727A
|
55727A
55727-06010
Retainer, Front Panel Upper Reinforcement
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55727-06010 |
— | ||
|
55728
|
55728
55728-06010
Reinforcement, Hood Stopper, Rh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55728-06010 |
— | ||
|
55729B
|
55729B
55729-06010
Reinforcement, Hood Stopper, Lh
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55729-06010 |
— | ||
|
55781E
|
55781E
55708-06050
Louver Sub-Assy, Cowl Top Ventilator
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55708-06050 |
— | ||
|
55783A
|
55783A
55783-06010
Pad, Cowl Top Silencer
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
55783-06010 |
— | ||
|
56111
|
56111
56101-AA050
Glass, Windshield
[07.2003 - 07.2005] ACV30,MCV31..SE *LAM,T=4.7,GREEN |
56101-AA050 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-AA051
Glass, Windshield
[07.2003 - 07.2005] ACV30,MCV31..SE *LAM,T=4.7,GREEN |
56101-AA051 |
— | ||
|
56111
|
56111
56101-AA051
Glass, Windshield
[08.2005 - 05.2006] ACV30,MCV31 *LAM,T=4.7,GREEN |
56101-AA051 |
— | ||
|
56111
|
56111
56101-AA060
Glass, Windshield
[07.2003 - 08.2005] ACV30,MCV31..SLE *LAM,T=4.7,GREEN; ACV30,MCV31..(4FC,5FC)..SE *LAM,T=4.7,GREEN,CANADA SPEC |
56101-AA060 |
— | ||
|
56114
|
56114
56114-22050 Retainer, Windshield Glass[07.2003 - 08.2005] ACV30,MCV31..5FC..SE CANADA SPEC |
56114-22050 |
from US $4.01 |
||
|
56114
|
56114
56114-33050 Retainer, Windshield Glass[06.2006 - 08.2008] ACV30,MCV31..CP |
56114-33050 |
from US $3.44 |
||
|
56115A
|
56115A
56115-22010 Stopper, Windshield Glass, No.1[07.2003 - 08.2005] ACV30,MCV31..SLE; ACV30,MCV31..(4FC,5FC)..SE CANADA SPEC |
56115-22010 |
from US $1.41 |
||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[07.2003 - 07.2005] ACV30,MCV31..(5F,5FC)..SE TYPE A:REFER ILLUST. |
56115-30100 |
from US $1.73 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[07.2003 - 08.2005] ACV30,MCV31..5FC..SE CANADA SPEC |
56116-22050 |
from US $1.41 |
||
|
56117E
|
56117E
90998-91004 Dam Kit, Windshield Glass[07.2003 - 05.2006] ACV30,MCV31..SE *D,L=3955 |
90998-91004 |
from US $11.19 |
||
|
56118B
|
56118B
90998-91003 Dam Kit, Windshield Glass[07.2003 - 05.2006] ACV30,MCV31..SE *D,L=690 |
90998-91003 |
US $5.07 |
||
|
90467A0016C0
|
90467A0016C0
90467-A0016-C0
Clip, Radiator Grille
|
90467-A0016-C0 |
— | ||
