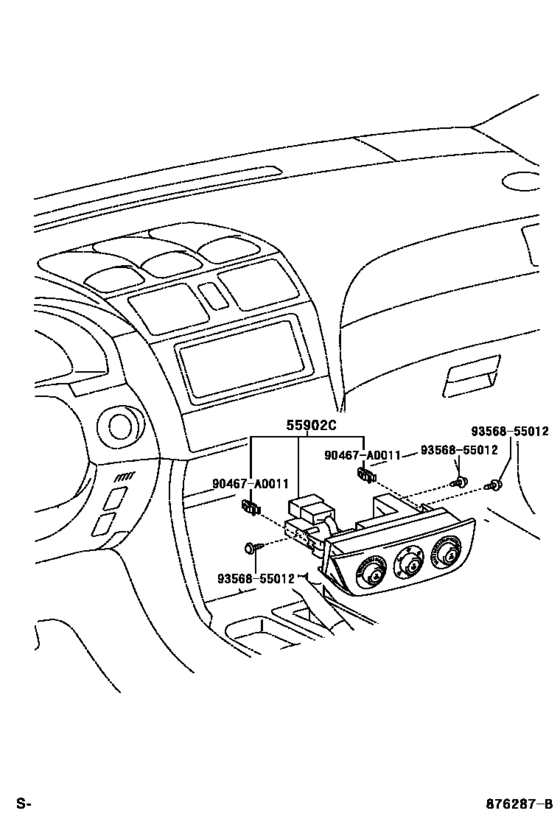

Heating & Air Conditioning - Control & Air Duct ([07.2003 - ] CONTROL PANEL--MANUAL (0307- )SE) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55902C
|
55902C
55902-06161
Panel Sub-Assy, Air Conditioner
[05.2006 - 08.2008] ACV30,MCV31..CP..SE |
55902-06161 |
— | ||
|
55902C
|
55902C
55902-AA010
Panel Sub-Assy, Air Conditioner
[07.2003 - 01.2004] ACV30,MCV31..SE |
55902-AA010 |
— | ||
| replacement | |||||
|
55902C
|
55902C
55902-AA011 Panel Sub-Assy, Air Conditioner[07.2003 - 01.2004] ACV30,MCV31..SE |
55902-AA011 |
US $416.42 |
||
|
55902C
|
55902C
55902-AA011 Panel Sub-Assy, Air Conditioner[01.2004 - 05.2006] ACV30,MCV31..(5F,5FC)..SE |
55902-AA011 |
US $416.42 |
||
|
90467A0011
|
90467A0011
90467-A0011
Clip, Instrument Panel, No.1
|
90467-A0011 |
— | ||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
