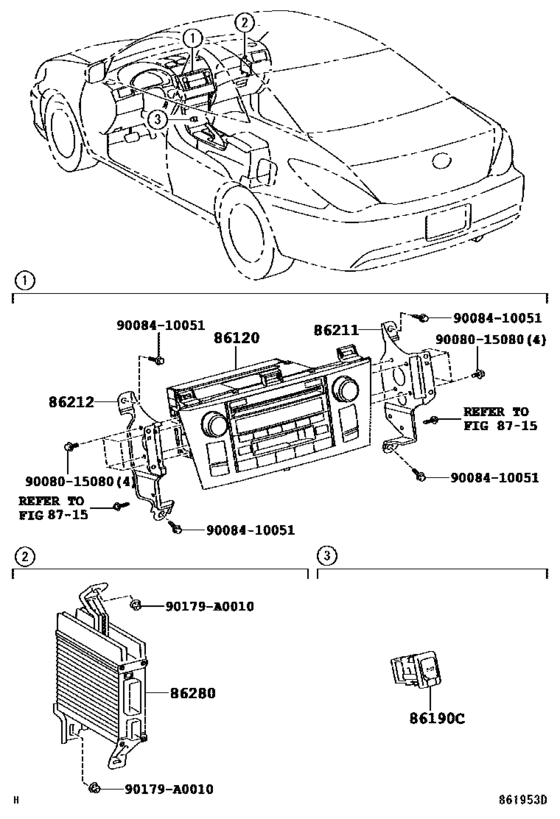

Radio Receiver & Amplifier & Condenser ([07.2003 - ] (0307- )) Diagram Toyota SOLARA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Frame
- MCV31
- grade
- SE
- body
- CP
- ENGINE
- 3MZFE
- DESTINATION
- USA
- From
- 07.2003
- To
- 08.2008
- Gear Shift Type
- 5FC
- Vehicle Model
- SOLARA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-06420
Receiver Assy, Radio
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE PANASONIC,ID=A51826; ACV30,MCV31..CP..SE PANASONIC,ID=A51826,AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER; MCV31..CP..SLE PANASONIC,ID=A51826,AUDIO-NAVIGATION, CD, PREMIUM W/6SPEAKER; MCV31..CP..SLE PANASONIC,ID=A51826,TYP |
86120-06420 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-06860
Receiver Assy, Radio
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE PANASONIC,ID=A51826; ACV30,MCV31..CP..SE PANASONIC,ID=A51826,AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER; MCV31..CP..SLE PANASONIC,ID=A51826,AUDIO-NAVIGATION, CD, PREMIUM W/6SPEAKER; MCV31..CP..SLE PANASONIC,ID=A51826,TYP |
86120-06860 |
— | ||
|
86120
|
86120
86120-06430
Receiver Assy, Radio
[05.2006 - 08.2008] ACV30,MCV31..CP..SE PANASONIC,ID=AD1802; ACV30,MCV31..CP..SE PANASONIC,ID=AD1802,TYPE C:REFER TO ILLUSTRATION |
86120-06430 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-06870
Receiver Assy, Radio
[05.2006 - 08.2008] ACV30,MCV31..CP..SE PANASONIC,ID=AD1802; ACV30,MCV31..CP..SE PANASONIC,ID=AD1802,TYPE C:REFER TO ILLUSTRATION |
86120-06870 |
— | ||
|
86120
|
86120
86120-AA120
Receiver Assy, Radio
[07.2003 - 05.2006] ACV30,MCV31..5FC..SLE PANASONIC,ID=56831; ACV30,MCV31..CP..(5F,5FC)..SE PANASONIC,ID=56831,AUDIO-PREMIUM IN-DASH 6 CHANGER; ACV30,MCV31..5FC..SLE PANASONIC,ID=56831,TYPE A:REFER TO ILLUSTRATION; ACV30,MCV31..CP..(5F,5FC)..SE PANASONIC, |
86120-AA120 |
— | ||
|
86120
|
86120
86120-AA140
Receiver Assy, Radio
[07.2003 - 05.2006] ACV30,MCV31..(5F,5FC)..SE PANASONIC,ID=A51806; ACV30,MCV31..(5F,5FC)..SE PANASONIC,ID=A51806,TYPE B:REFER TO ILLUSTRATION |
86120-AA140 |
— | ||
|
86190C
|
86190C
86190-0C010
Adapter Assy, Stereo Jack, No.1
[05.2006 - 08.2008] ACV30,MCV31..CP |
86190-0C010 |
— | ||
|
86211
|
86211
86211-AA030
Bracket, Radio, No.1
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
86211-AA030 |
— | ||
|
86212
|
86212
86212-AA030
Bracket, Radio, No.2
[07.2003 - 05.2006] ACV30,MCV31..5F,5FC |
86212-AA030 |
— | ||
|
86280
|
86280
86280-06060
Amplifier Assy, Stereo Component
[05.2006 - 08.2008] ACV30,MCV31..CP..SLE; ACV30,MCV31..CP..SE AUDIO-PREMIUM IN-DASH 6CD W/6SPEAKER |
86280-06060 |
— | ||
|
86280
|
86280
86280-AA080
Amplifier Assy, Stereo Component
[07.2003 - 05.2006] ACV30,MCV31..CP..5FC..SLE; ACV30,MCV31..CP..(5F,5FC)..SE AUDIO-PREMIUM IN-DASH 6 CHANGER |
86280-AA080 |
— | ||
|
90179A0010
|
90179A0010
90179-A0010 Nut, Rear Wiper Link Pivot, No.1 |
90179-A0010 |
US $1.16 |
||
| replacement | |||||
|
90179A0010
|
90179A0010
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9008015080
|
9008015080
90080-15080
SCREW CROSSRECESS
|
90080-15080 |
— | ||
|
9008410051
|
9008410051
90084-10051
New Genuine Part
|
90084-10051 |
— | ||
